Glovebox

Glovebox

To remove

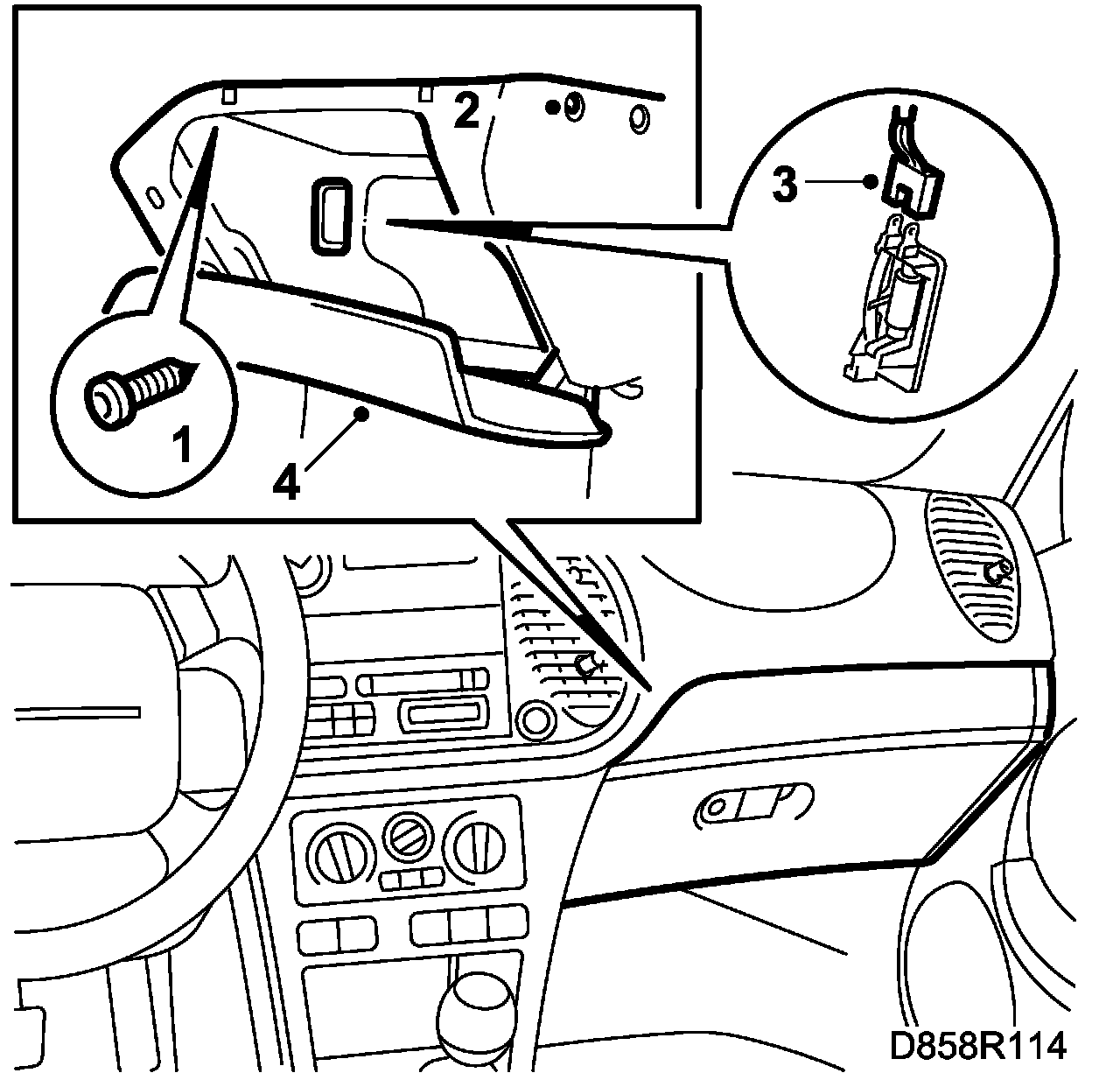

1. Open the glove box. Open the cover and unscrew the retaining screws.
2. Remove the remaining retaining screws and mounting bolts as well as the expansion rivet at the front and release the snap fasteners from the bulkhead bracket.
3. Pull out the glove box and unplug the connector for the glove box illumination.
4. Lift out the glovebox.

To fit

Fit in reverse order.
