Spacer Washers As Spare Part For Side Consoles, Seat-Belt Member

Spacer Washers As Spare Part For Side Consoles, Seat-belt Member







Cars concerned

Saab 900 5d M97- from chassis number V2020500.

Background

The body width varies between the 3- and 5-door cars. In order to avoid that the side console and the seat-belt member make contact during assembly, spacer washers in the materials kit as a spare part must not be used on 5 door cars.

Materials

44 14 033 Side console, left
44 14 041 Side console, right

Procedure

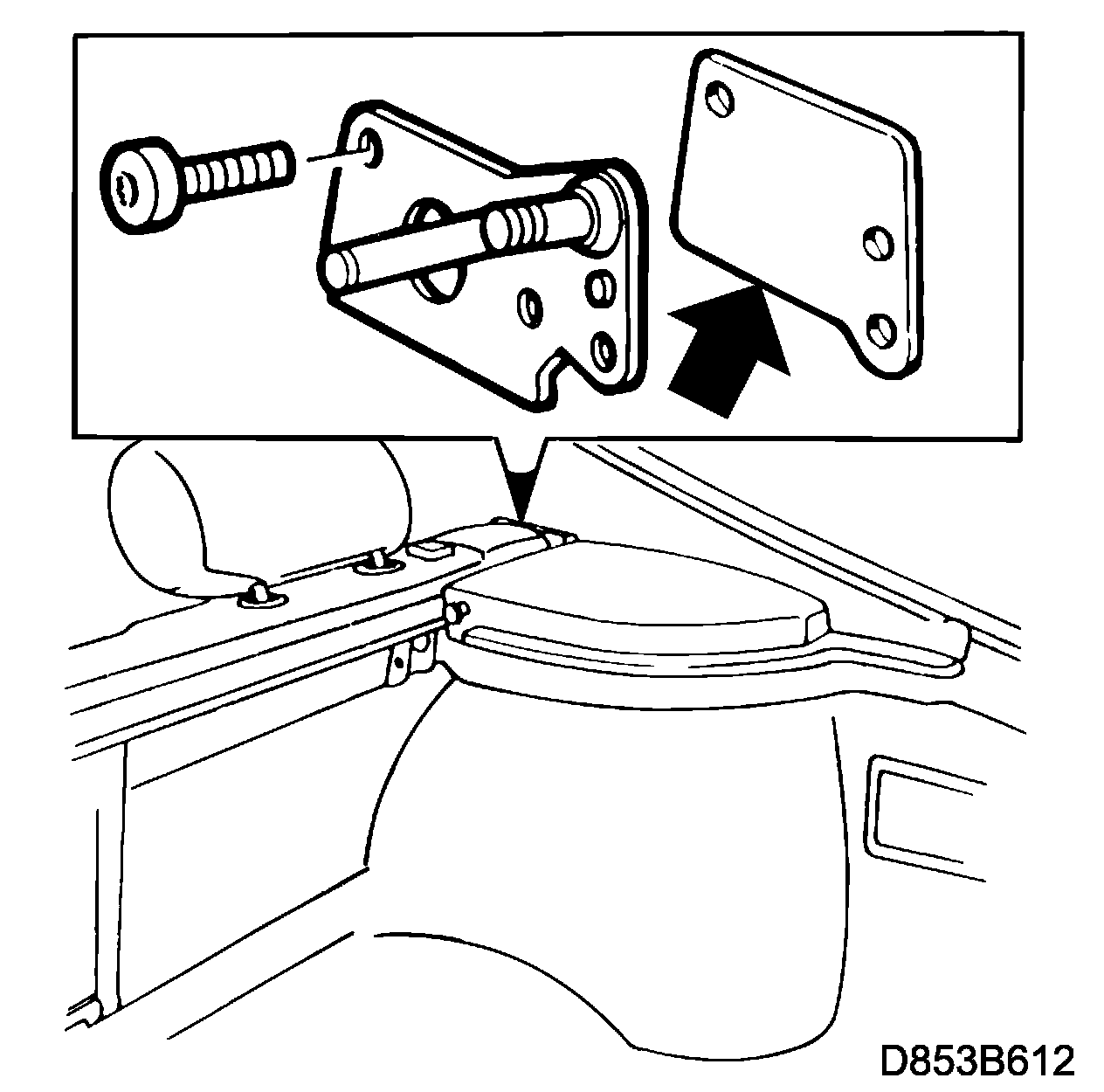

When replacing the side console on 5-door cars, first check if there is a spacer washer behind the side console.
- If the car lacks a spacer washer, the spacer washer included in the materials kit must not be fitted.
- If there is a spacer washer, it should be refit.
