Emblem, Front Wings

Emblem, Front Wings

Removing

Protect the paintwork with tape around the emblem. Use a steel spatula and prise carefully under the emblem.

Fitting







- S/SE emblem

First wash the area where the emblem is to be mounted with benzene.

NOTE: The emblems and the car must be at room temperature (approximately 20 degrees C) before the emblems can be mounted.

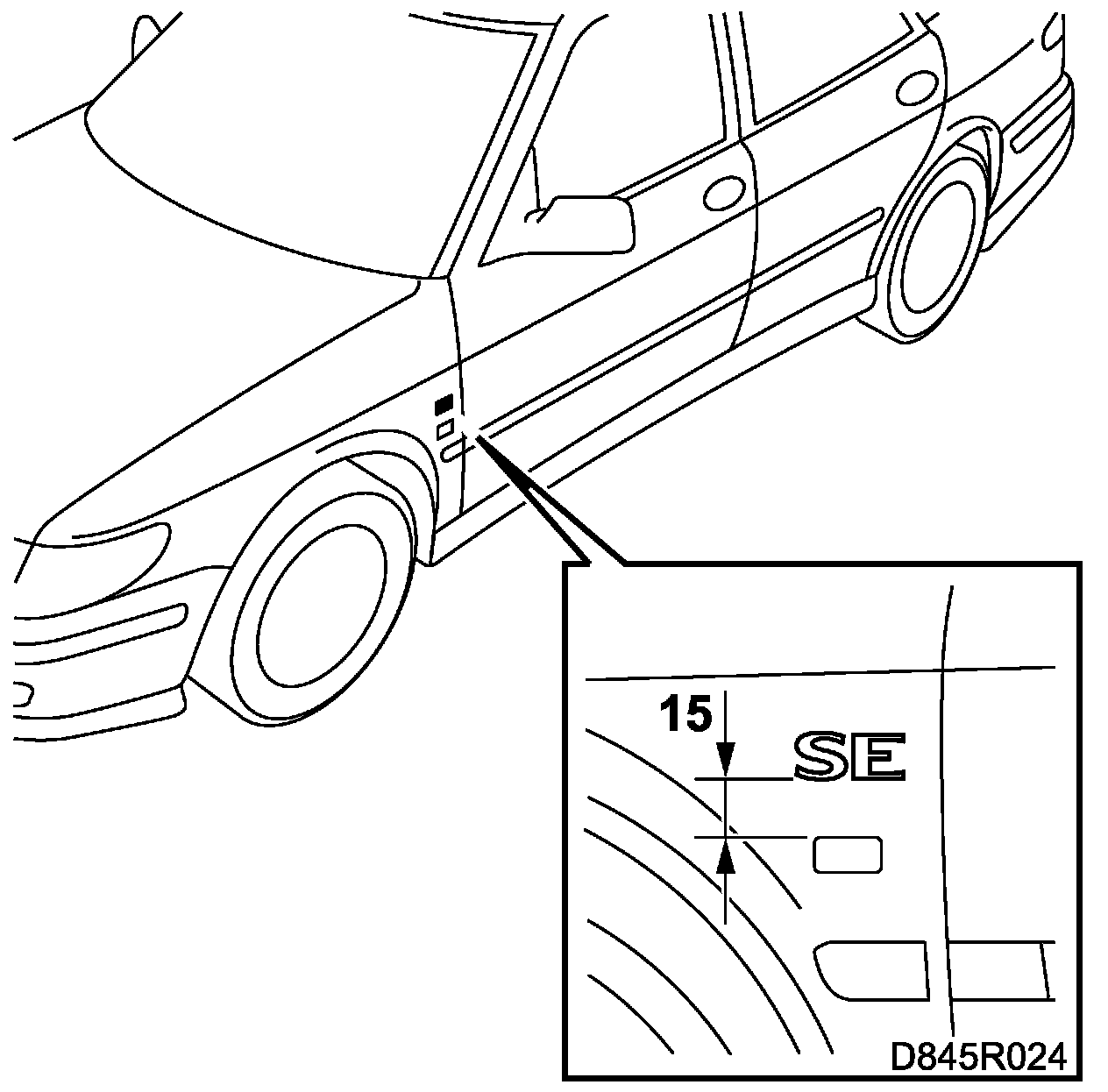

Position the emblem on the front wing by measuring as indicated in the illustration and mount the S- or SE-emblem. The emblem should be centred above the side direction indicator.

- Viggen emblem







First wash the area where the emblem is to be mounted with benzene.

NOTE: The emblems and the car must be at room temperature (approximately 20 degrees C) before the emblems can be mounted.

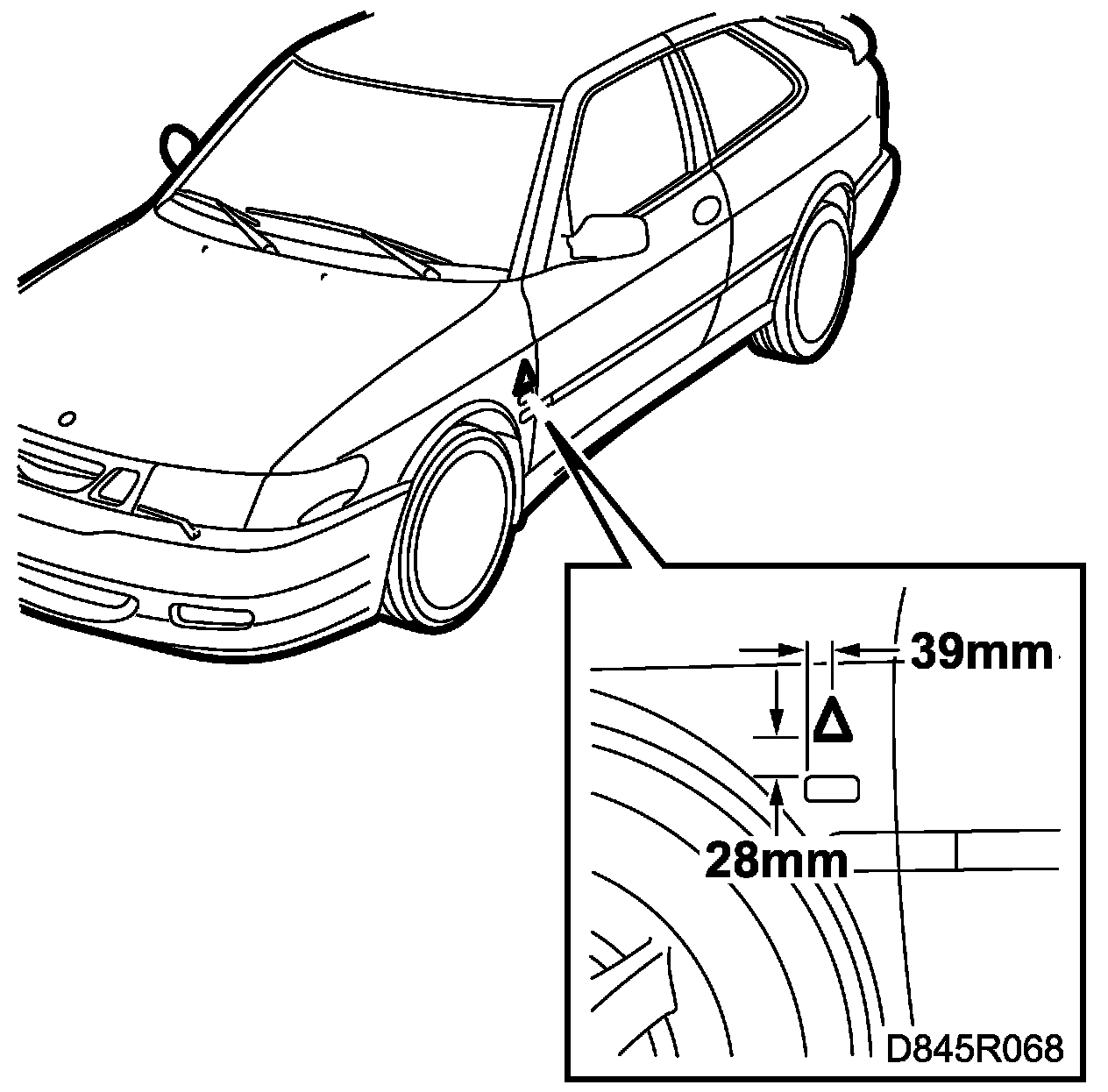

Measure up the frame on the front wing as shown in the illustration and fit the Viggen badge. The badge should be centred over the side direction indicators.

- Aero emblem







First wash the area where the emblem is to be mounted with benzene.

NOTE: The emblems and the car must be at room temperature (approximately 20 degrees C) before the emblems can be mounted.

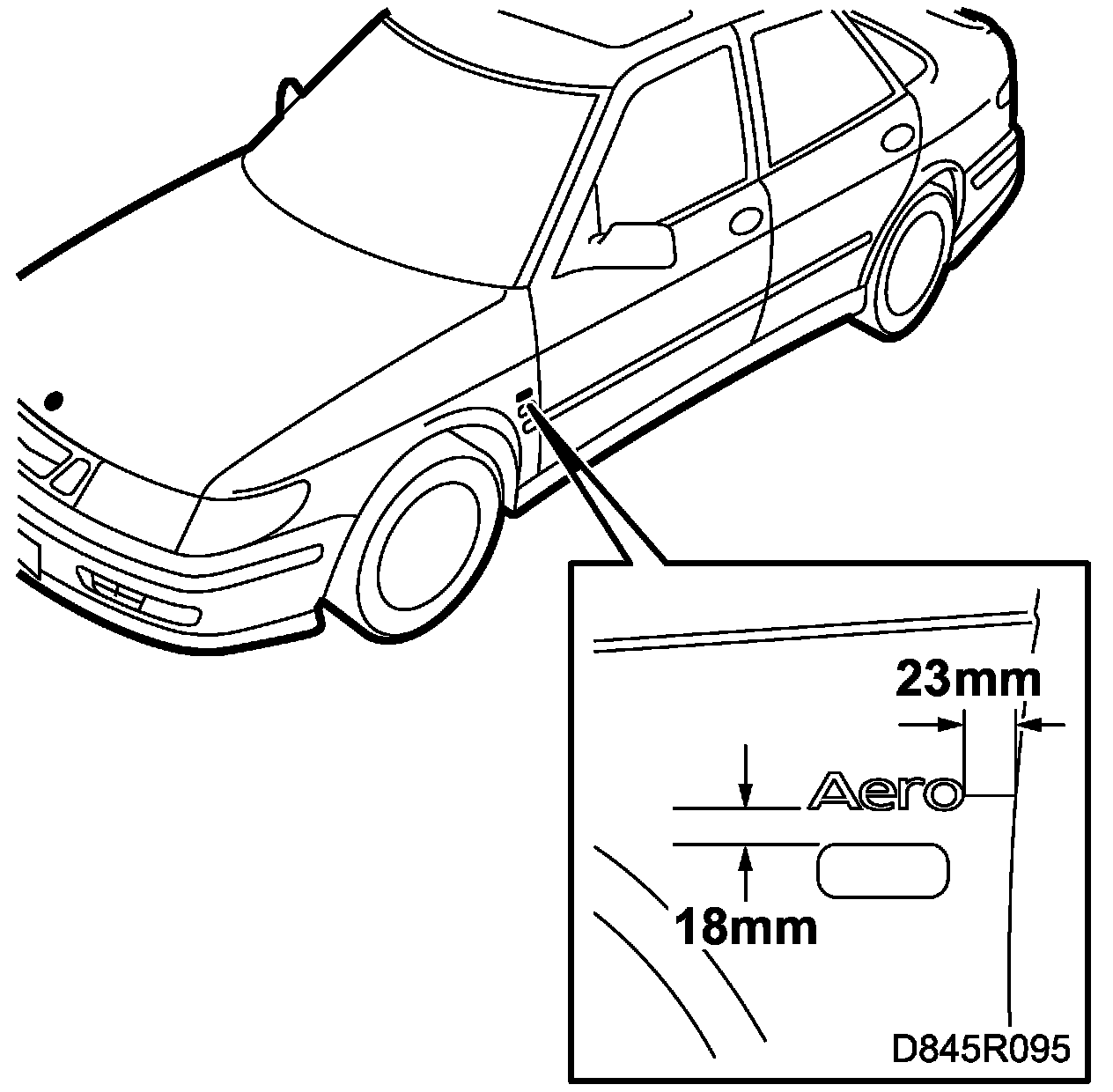

Position the emblem on the front wing by measuring as shown in the illustration and fit the Aero emblem. The emblem should be centred above the side direction indicator.
