Hood Latch: Service and Repair

Bonnet Lock







To remove

1. Open the bonnet.

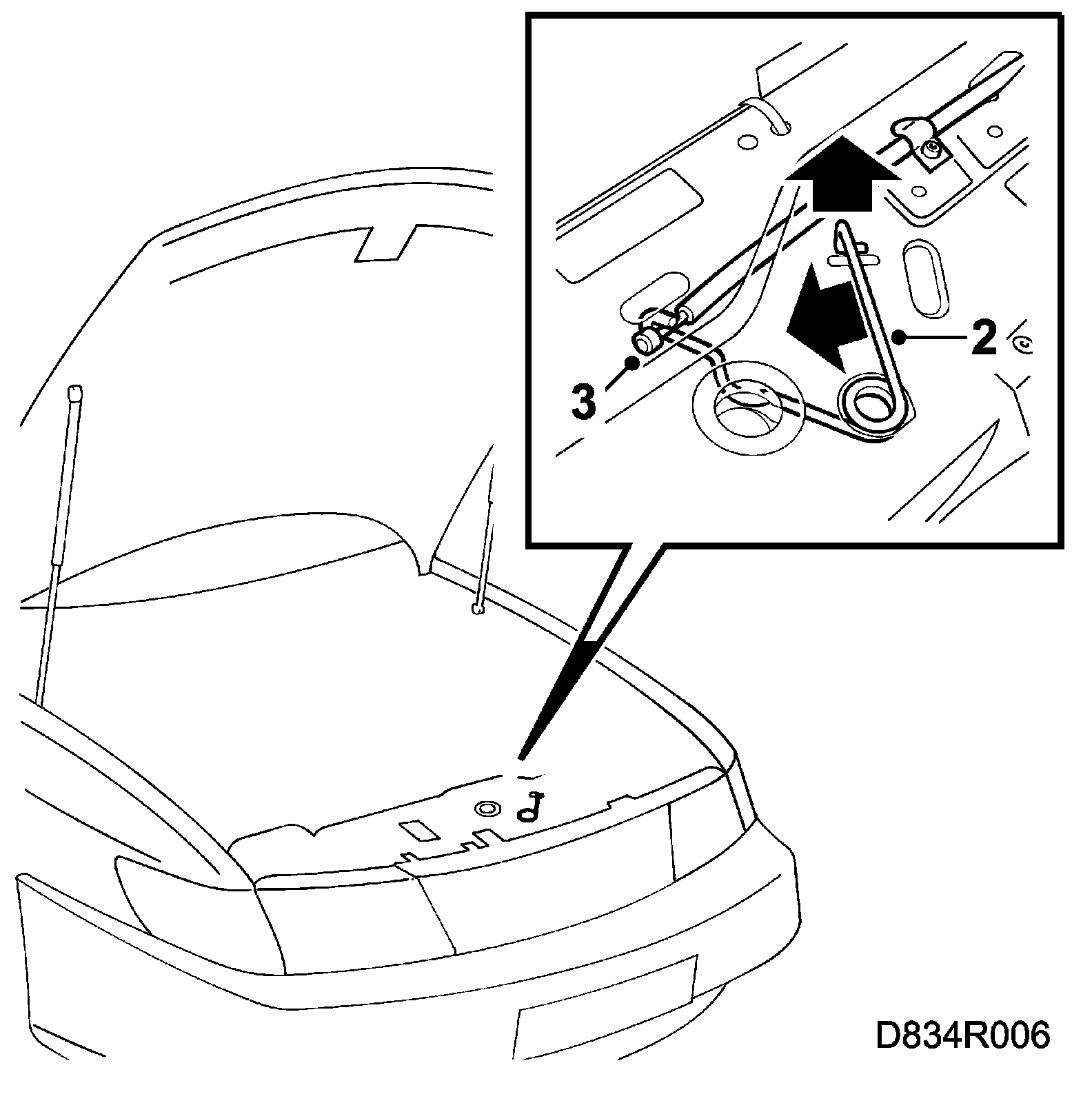

2. Remove the bonnet lock spring from its pretensioned position.
3. Unhook the bonnet-release cable from the bonnet lock spring.
4. Remove the bonnet lock spring by removing it from the front member.

To fit

Fit in reverse order.

NOTE: Grease the bonnet lock spring with according to service instructions.
