Fuel Door Release Actuator: Specifications

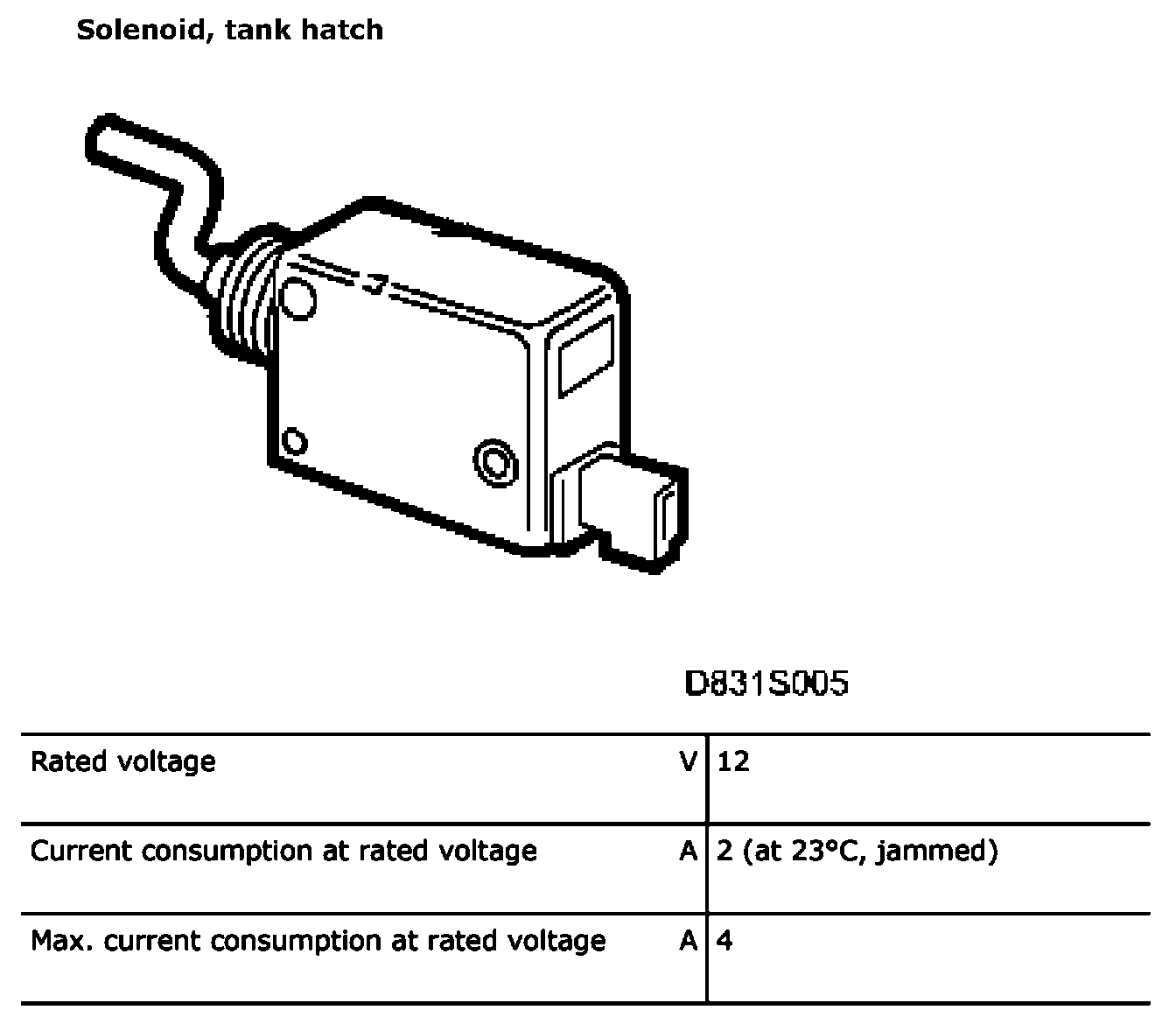

Solenoid, Tank Hatch


Solenoid, Tank Hatch:






IMPORTANT: Electric motor must not be supplied with current for more than 45 seconds, the motor will overheat and malfunction.
