Front Door: Adjustments

Adjustment Of Front And Rear Doors

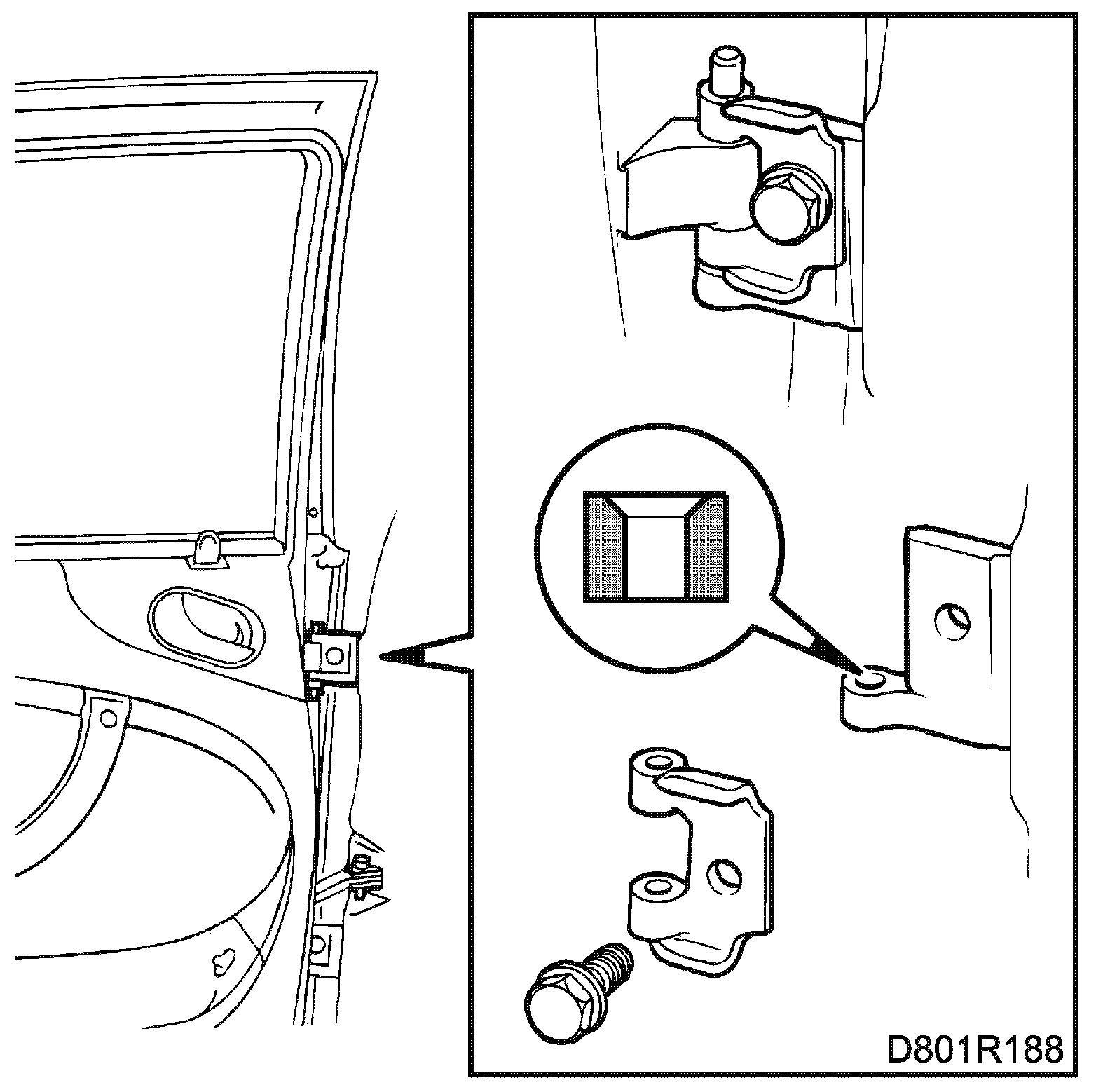

The door is guided into the correct position by a tapered pin in a tapered hole.

Fine adjustment upwards:
Loosen the bolts and adjust.

Fine adjustment downwards, inwards and upwards
Grind down the lug 3-4 mm. Protect the paint when grinding.
Apply rust protector to the ground surface.

Fine adjustment rearwards
Grind down the lug as per above and place shims between the hinge sections.
