System Overview

System Overview

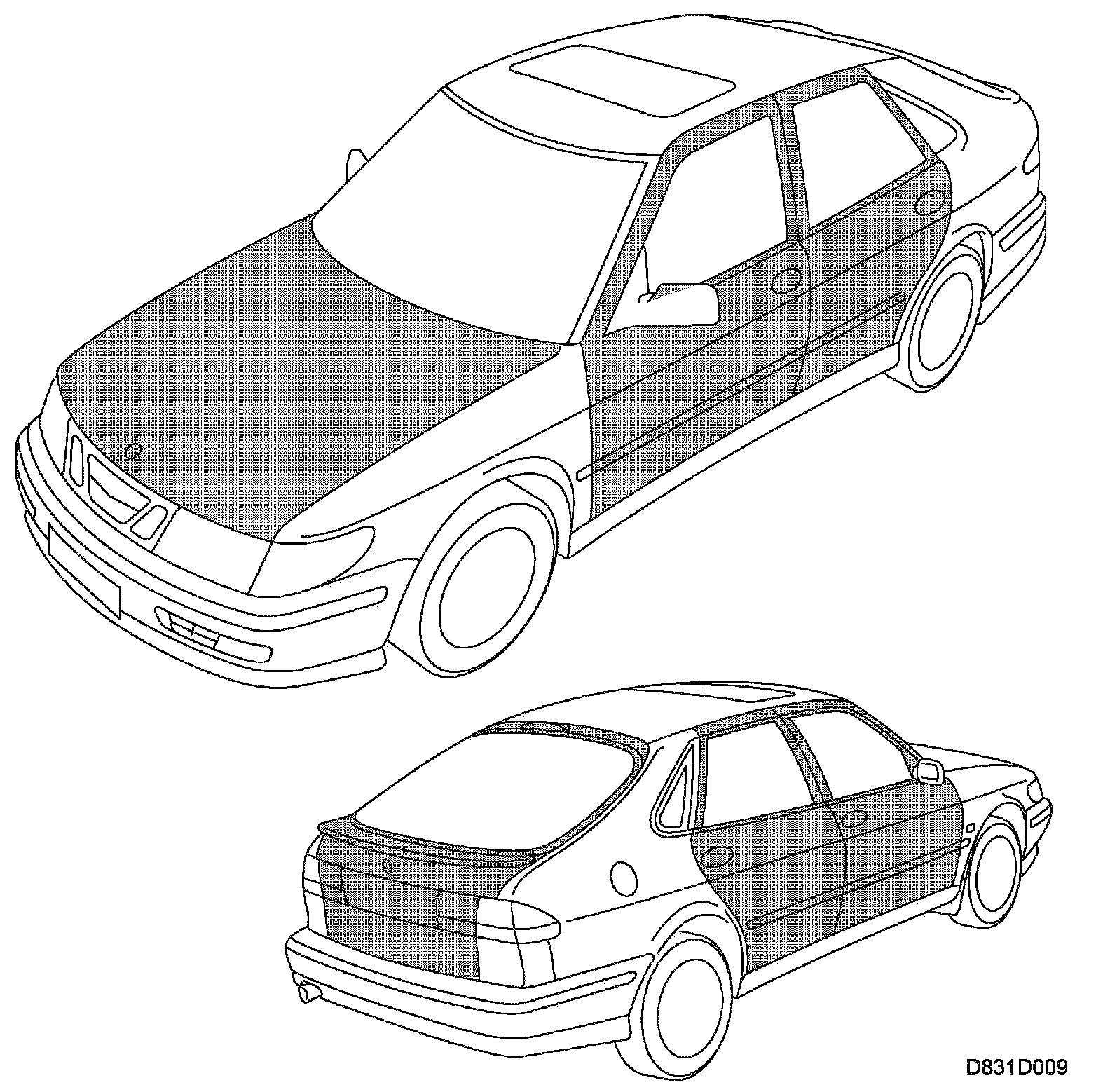

Brief Description, Doors And Hatches

Bonnet

The bonnet lock mechanism consists of a spring lock located in the front member. The lock is controlled by a wire. The wire control is located under the instrument panel on the driver's side inside the cabin.

The bonnet has a gas lifting spring that holds the bonnet open.

The hinges, double-sheared and lubrication-free, are fixed to the body and bonnet in a way that allows adjustment.

Doors

The hinges in the front and rear doors are lubrication-free, double-sheared and can be dismantled from the body and the door.

Tailgate/bootlid

The tailgate is equipped with two gas springs and is opened with a handle located in the middle of the tailgate (not Convertible).
