Control Module Inputs

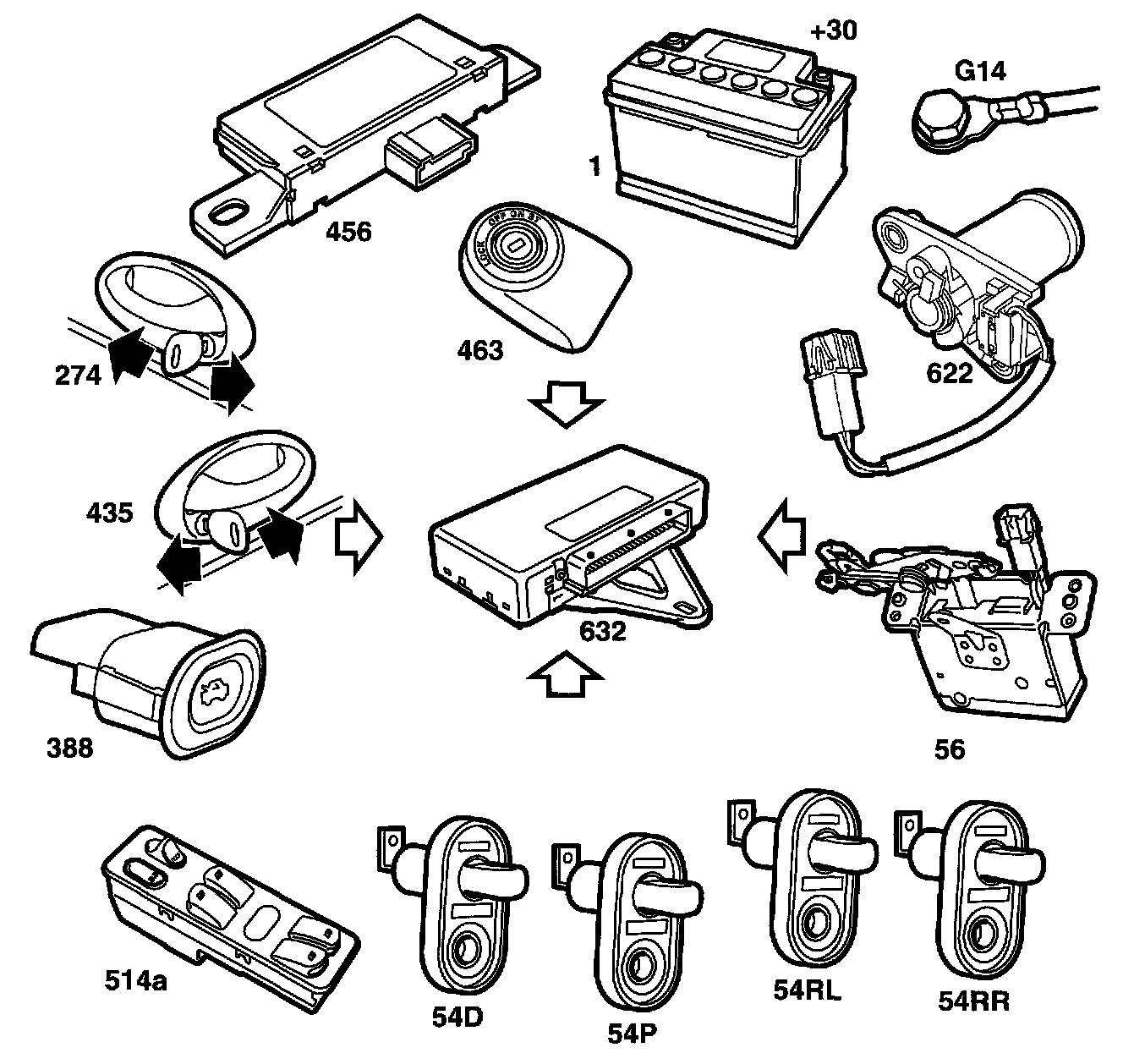

Control Module Inputs

- Power supply +30
- Grounding point (G14)
- Switch, central locking system (514a)
- Switch for boot lid, in driver's door (388)
- Microswitch in driver's door (274)
- Microswitch in passenger door (435)
- Door switch, driver's door (54D)
- Door switch, passenger door (54P)
- Door switch, rear LH door (54RL)
- Door switch, rear RH door (54RR)
- Luggage compartment contact, 3D/5D (56)
- Luggage compartment contact, convertible (56)
- Receiver, remote control (456)
- Antenna unit, immobilizer (483)
- Microswitch, luggage compartment lock (622)
