Galvanized Body Parts

Galvanized Body Parts







* = externally galvanized
** = internally galvanized
*** = double-sided galvanized

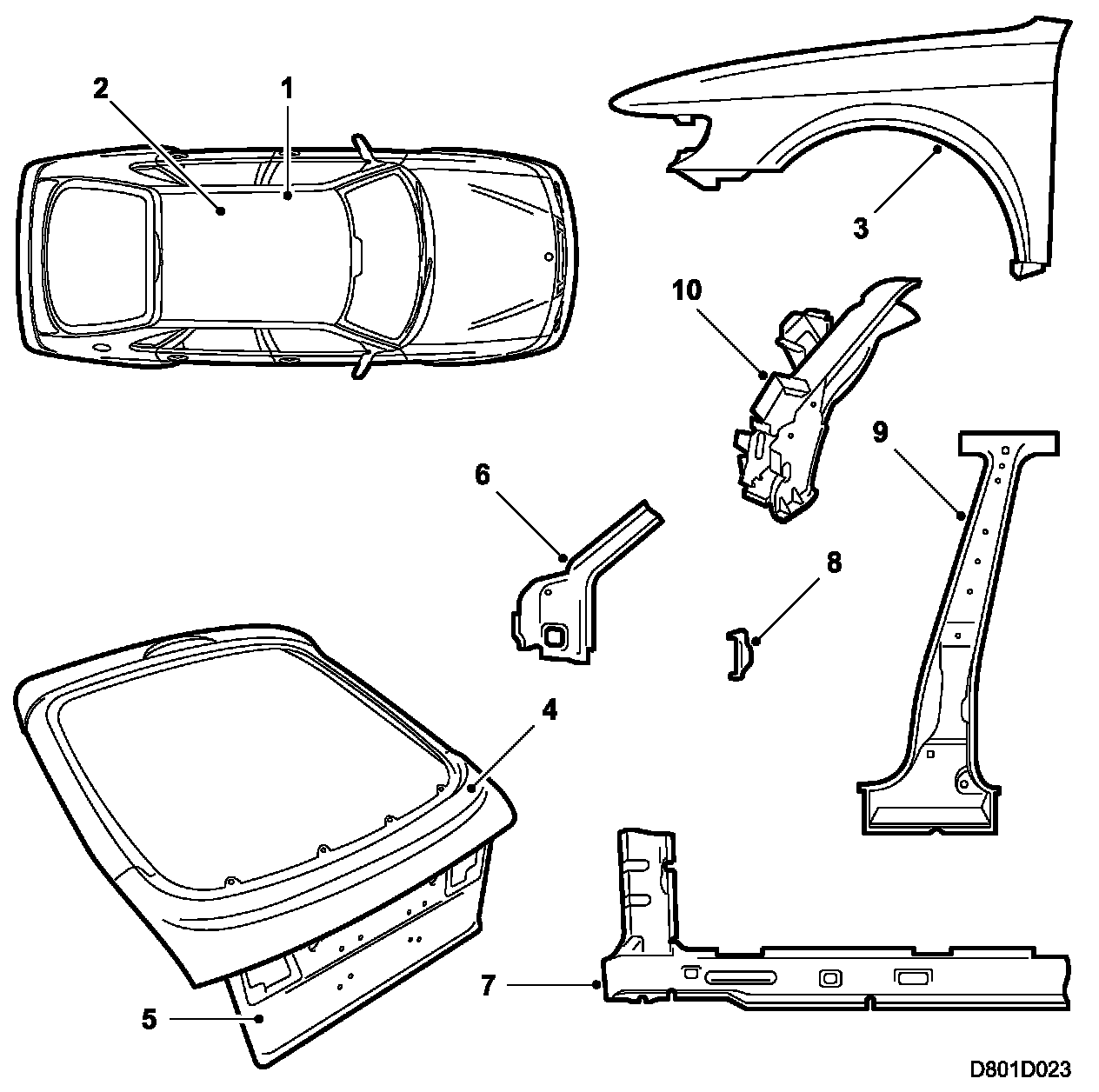

1. Reinforcement sunroof*
2. Rear roof member ***
3. Front wing ***
4. Outer panel on tailgate ***
5. Inner panel on tailgate ***
6. Reinforcement on lower A-pillar ***
7. Sill reinforcement ***
8. Bulkhead in door sill ***
9. Reinforcement in B-pillar ***
10. Front member **
11. Windscreen member **







12. Outer panel front door ***
13. Inside panel front door ***
14. Outer panel rear doors ***
15. Inner panel rear doors ***
16. Outer panel bonnet ***
17. Inner panel bonnet ***
18. Rear abutment *

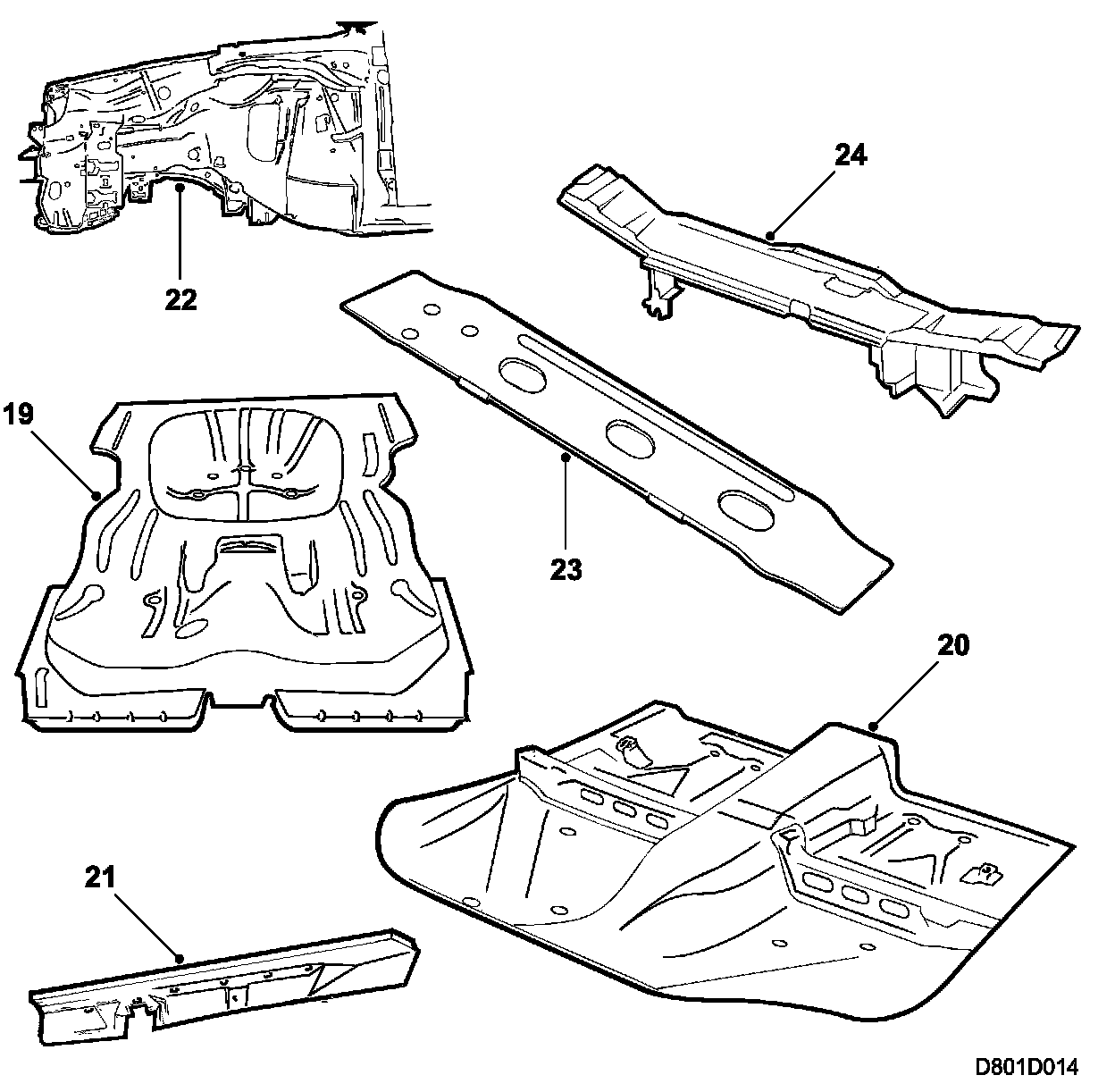

19. Rear floor with frame members *







20. Front floor with cross-member and tunnel reinforcements *
21. Inner door sill ***
22. Front wheel housing *
23. Front cross-member *
24. Radiator member ***
