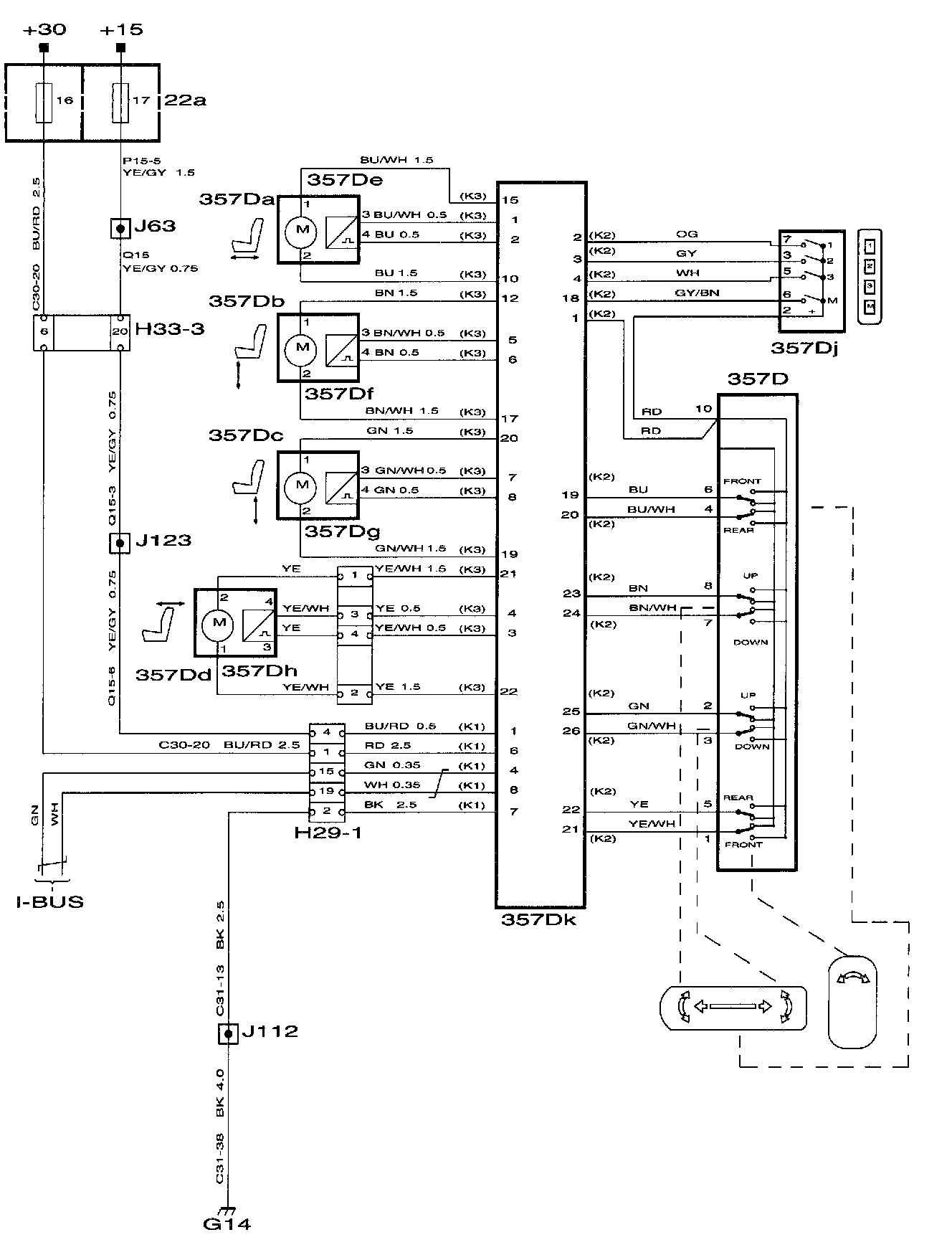

Electrically Operated Driver's Seat, Memory (RHD)

Electrically Operated Driver's Seat, Memory (RHD)

Components
No. Name and location
22a Main fuse board, dashboard; on the side of the dashboard by the driver's door
357D Switch, electrically operated driver's seat: on side of seat towards door
357Da Motor, legroom adj., elec. op. driver's seat; in seat under cushion
357Db Motor, front-height adj., elec. op. driver's seat; in seat under cushion
357Dc Motor, rear-height adj., elec. op. driver's seat; in seat under cushion
357Dd Motor, backrest adj., elec. op. driver's seat; in seat under cushion
357De Position sensor, legroom adj., elec. op. driver's seat w. memory; on motor shaft
357Df Position sensor, front-height adj., elec. op. driver's seat w. memory; on motor shaft
357Dg Position sensor, rear-height adj., elec. op. driver's seat w. memory; on motor shaft
357Dh Position sensor, backrest adj., elec. op. driver's seat w. memory; on motor shaft
357Dj Switch, elec. op. driver's seat w. memory; on side of seat towards door
357Dk Control module, elec. op. driver's seat w. memory; in seat under cushion

29-pin connectors
No. Location
H29-2 Connector to right seat

33-pin connectors
No. Location
H33-3 Blue connector on bracket below left-hand A-pillar

Crimp connections
No. Location
J63 LHD: Approx. 200 mm from branching point MIU towards SID
RHD: Approx. 50 mm from branching point rheostat towards light switch
J113 3D/5D: Approx. 320 mm from branching point right rear door towards right-hand seat
CONV: Approx. 330 mm from branching point right-hand seat towards seat
J123 3D/5D: Approx. 650 mm from connector H33-1 towards seat member
CONV:--

Grounding points
No. Location
G24 Grounding point right-hand seat; under the seat on the floor behind the seat member
