Seat Belt Warning

Seat Belt Warning

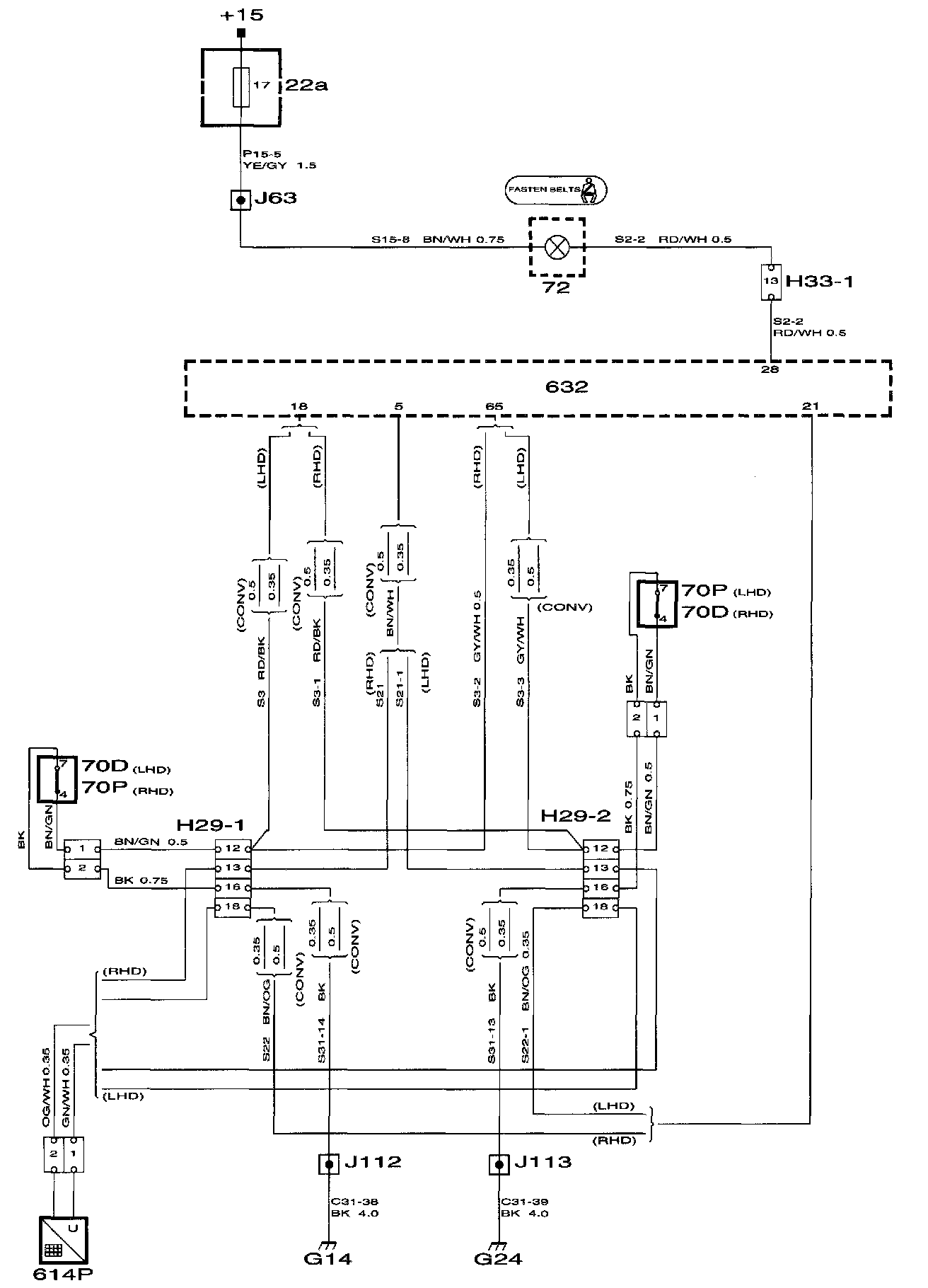

Components
No. Name and location
22a Main fuse board, dashboard; on the side of the dashboard by the driver's door
70D Seat-belt switch, driver's seat; in the belt buckle
70P Seat-belt switch, passenger; in the passenger seat belt buckle
72 Warning lamp, seat belt; above SID
614P Sensor for loaded seat cushion, front passenger; in the passenger seat cushion
632 Control module, TWICE; under left-hand seat

29-pin connectors
No. Location
H29-1 Connector to left seat
H29-2 Connector to right seat

33-pin connectors
No. Location
H33-1 Grey connector on bracket below left-hand A-pillar

Crimp connections
No. Location
J63 LHD: Approx. 200 mm from branching point MIU towards SID
RHD: Approx. 50 mm from branching point rheostat towards light switch
J112 3D/5D: Approx. 40 mm from branching point left-hand seat towards right-hand seat
CONV: Approx. 250 mm from branching point interior lighting switch towards left- hand seat
J113 3D/5D: Approx. 320 mm from branching point right rear door towards right-hand seat
CONV: Approx. 330 mm from branching point right-hand seat towards seat

Grounding points
No. Location
G14 Grounding point left-hand seat; under the seat on the floor behind the seat member
G24 Grounding point right-hand seat; under the seat on the floor behind the seat member
