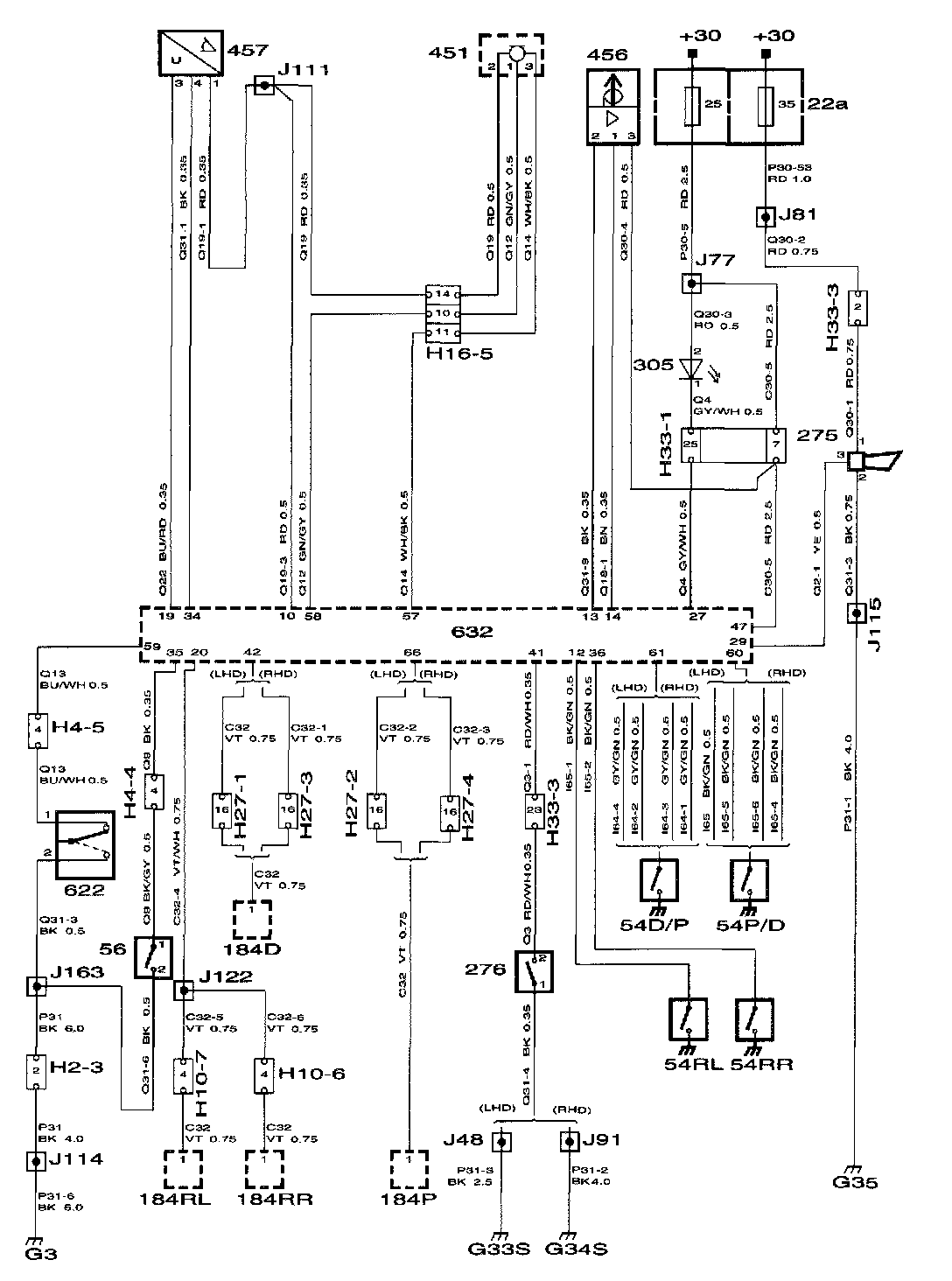

Anti-Theft Alarm and Immobilizer








Anti-Theft Alarm And Immobilizer

Components
No. Name and location
22a Main fuse board, dashboard; on the side of the dashboard by the driver's door
54D Door switch, driver's side
3D/CONV: middle of B-pillar
5D: on bottom of B-pillar
54P Door switch, driver's side
3D/CONV: middle of B-pillar
5D: on bottom of B-pillar
54RL Door switch, rear left; in bottom of door opening
54RR Door switch, rear right; in bottom of door opening
56 Switch, luggage compartment lighting; in boot lid lock
184D Motor, central locking system, driver; in door
184H Motor, central locking system; in boot lid
184P Motor, central locking system, passenger; in door
184RL Motor, central locking system, left rear; in door
184RR Motor, central locking system, right rear; in door
275 Siren, anti-theft alarm; behind left front wheel housing
276 Bonnet switch, anti-theft alarm; to the left in engine bay by main fuse box
305 LED, anti-theft alarm; top centre of dashboard
451 Glass breakage sensor; in centre of roof light console
456 Antenna, central locking system remote control; in rear left of centre console
457 Tilt sensor; on floor tunnel in front of airbag control module
622 Microswitch, luggage compartment lock; in boot lid lock
632 Control module, TWICE; under left-hand seat

2-pin connectors
No. Location
H2-3 In the luggage compartment behind the left- hand wheel housing

4-pin connectors
No. Location
H4-4 Green connector in luggage compartment behind left wheel housing
H4-5 Grey connector in luggage compartment behind left wheel housing

10-pin connectors
No. Location
H10-6 In left-hand B pillar
H10-7 In right-hand B pillar

16-pin connectors
No. Location
H16-5 In the luggage compartment behind the left- hand wheel housing

27-pin connectors
No. Location
H27-1 Connector to driver's door LHD
H27-2 Connector to front passenger door LHD
H27-3 Connector to driver's door RHD
H27-4 Connector to front passenger door RHD

33-pin connectors
No. Location
H33-3 Blue connector on bracket below left-hand A-pillar

Crimp connections
No. Location
J48 Approx. 180 mm from branching point DICE towards brake light switch
J77 LHD: Approx. 70 mm from branching point rheostat towards brake light switch
RHD: Approx. 30 mm from branching point main fuse board towards main fuse board
J81 LHD: Approx. 120 mm from branching point DICE control module towards brake light switch
RHD: Approx. 30 mm from branching point light switch towards MIU
J91 LHD:-
RHD: Approx. 110 mm from branching point main fuse board towards DICE control module
J111 3D/5D: By the cable tie on the connector to the TWICE control module
CONV:-
J114 3D/5D: Approx. 80 mm from branching point grounding point G3 towards compartment
CONV: Approx. 50 mm from branching point right rear light cluster towards compartment
J115 3D/5D: Approx. 410 mm from connector H33-1 towards left door
CONV: Approx. 50 mm from branching point left front door towards connector bracket
J122 3D/5D: Approx. 150 mm from branching point LH seat towards LH door
CONV:-
J163 3D/5D: Approx. 155 mm from branching point lock motor towards reversing/rear fog lights
CONV: Approx. 85 mm from branching point high-level brake light towards connector

Grounding points
No. Location
G3 Grounding point luggage compartment; on the floor under the left rear light cluster
G33S Grounding point connector bracket (Signal); in compartment below left-hand A-pillar
G345 Grounding point control module bracket (Signal); in compartment below right-hand A-pillar
G35 Grounding point dashboard; on side wall behind connector bracket under left-hand A-pillar
