Trip Computer: Service and Repair

Replacement Of Trip Meter

To remove

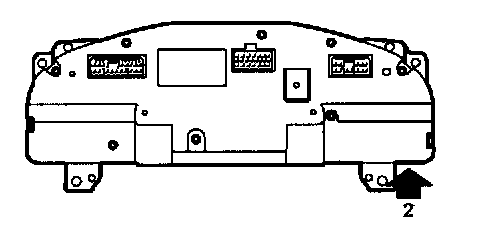

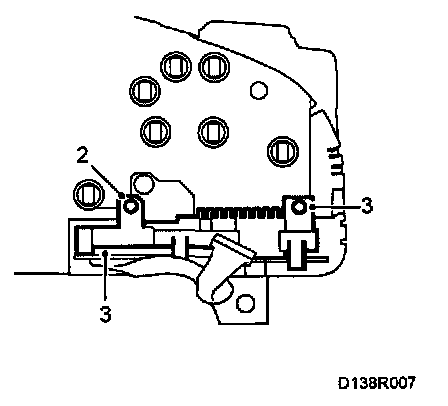

1 Remove the electronic unit.
2 Remove the trip meter, two screws.
3 Lift out the trip meter.

To fit

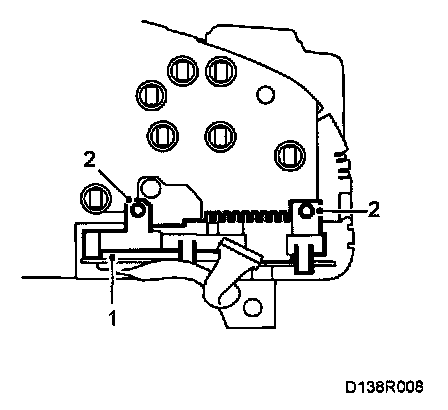

1 Fit the trip meter, two screws.
2 Fit the electronic unit.

Replacement Of Lamp Bulb In Trip Meter:

1 Remove the main instrument unit
2 Change the bulb.
3 Fit the main instrument unit
