Steering Mounted Controls Transmitter: Service and Repair

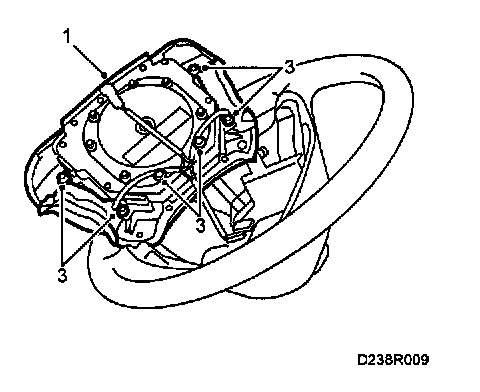

To remove


WARNING
Read Airbag (SRS), Technical Description, "Safety and handling instructions" before commencing work.







1 Remove the airbag on the driver's side.
2 Unplug the connector for the steering wheel controls.
3 Remove the steering wheel controls.

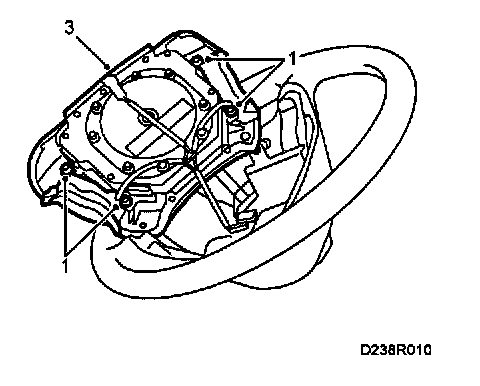

To fit


WARNING
Read Airbag (SRS), Technical Description, "Safety and handling instructions" before commencing work.







1 Fit the steering wheel controls.
2 Plug in the connector for the steering wheel controls.
3 Refit the airbag.
