Removal and Replacement

Rear Loudspeaker

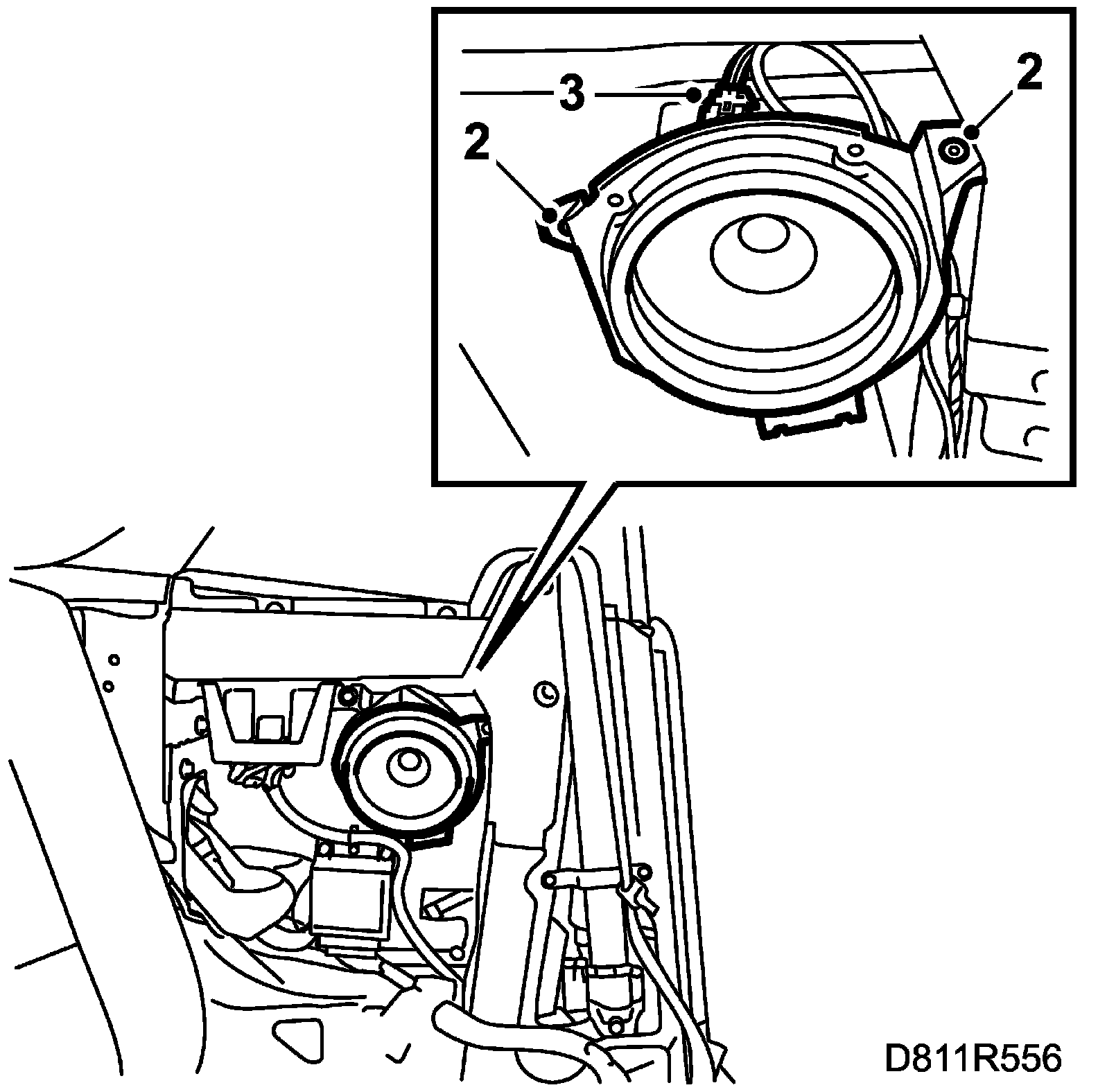

Removing







1. Remove the rear side trim.
2. Remove the bolts securing the loudspeaker.
3. Unplug the connector and remove the speaker.

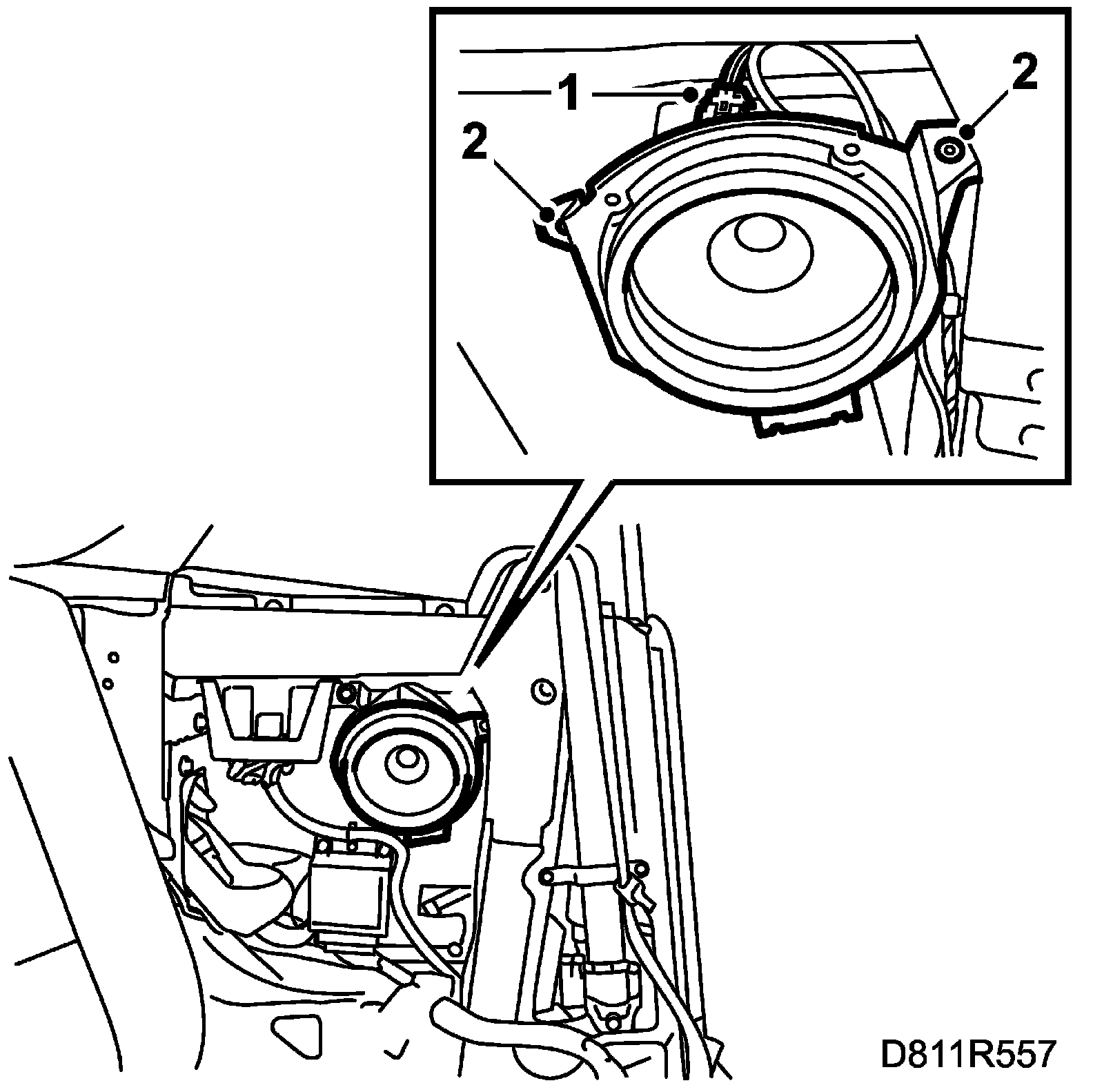

Fitting







1. Plug in the connector.
2. Fit the speaker and tighten the bolts.
3. Refit the side trim.
