Loudspeaker, Rear, Convertible




To remove


Loudspeaker, Rear, Convertible:

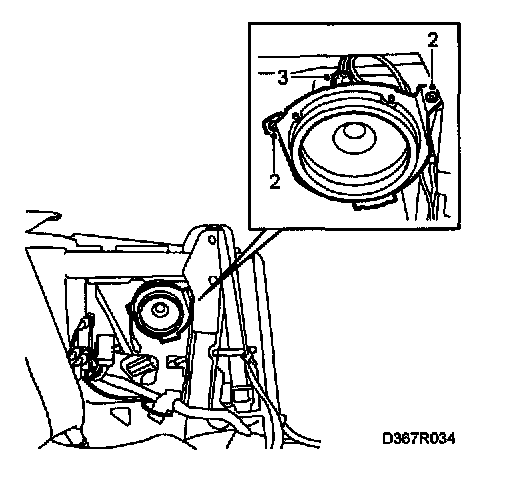

1 Remove the rear side trim. See Convertible.
2 Remove the screws securing the loudspeakers.
3 Unplug the connector and lift out the loudspeaker.

To fit
Fit it in reverse order.
