Audio Preparations

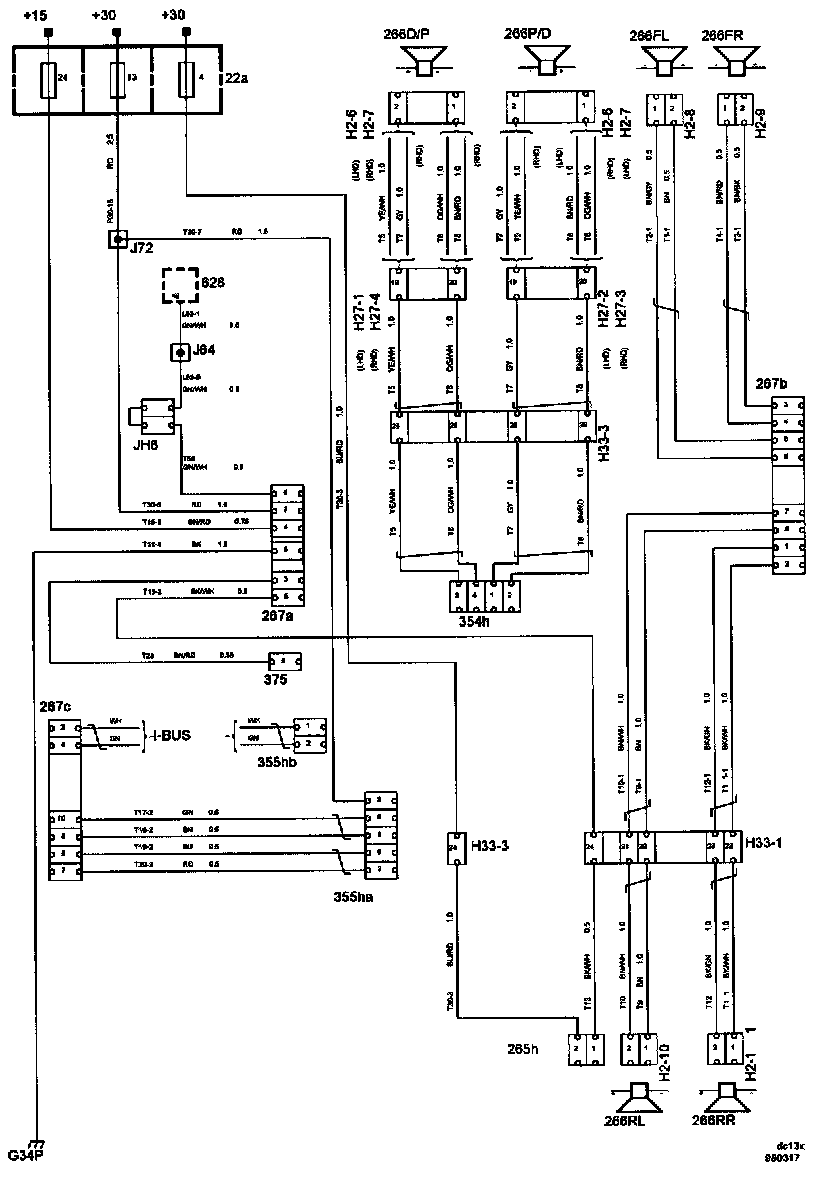

Audio Preparations:

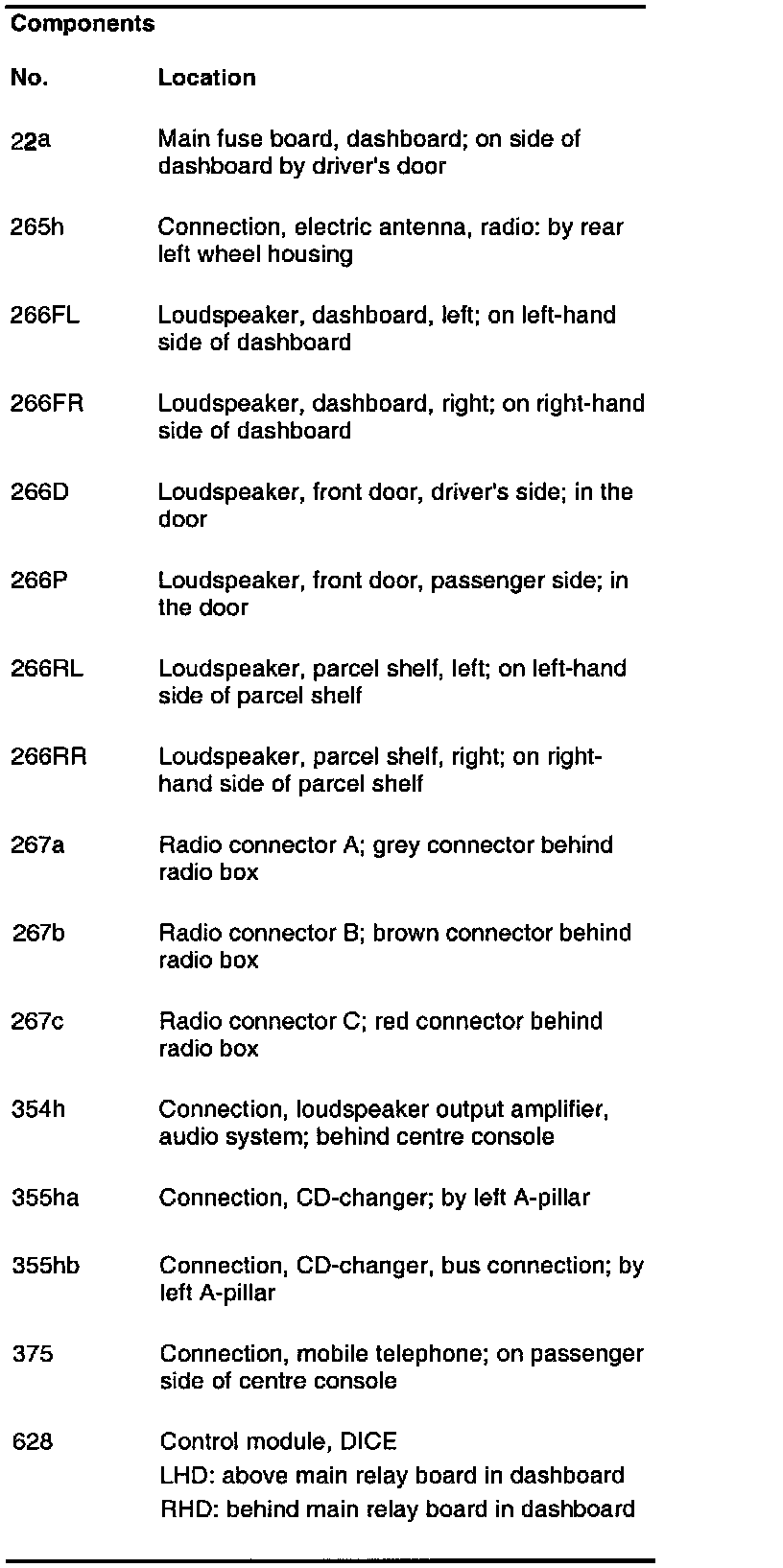

Components:

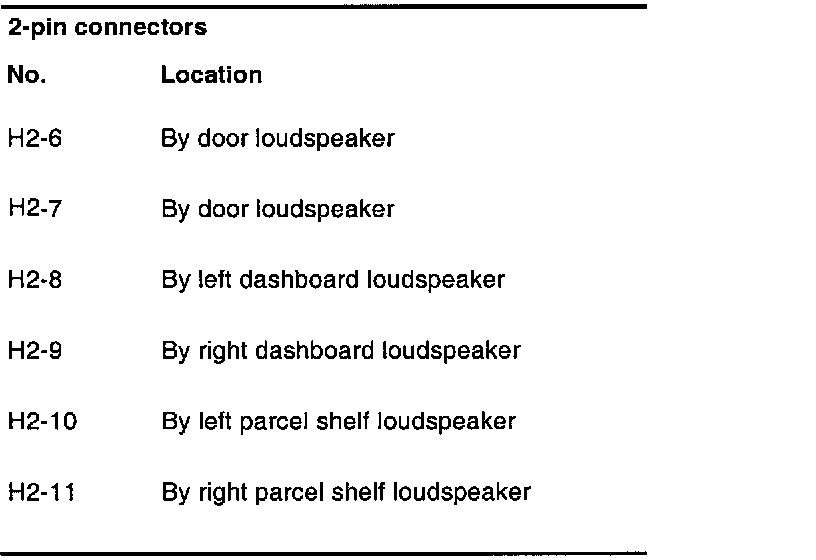

2-pin Connectors:

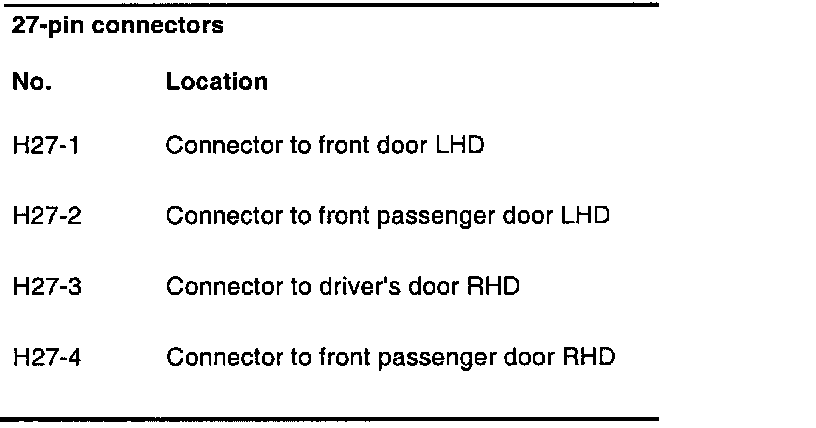

27-pin Connectors:

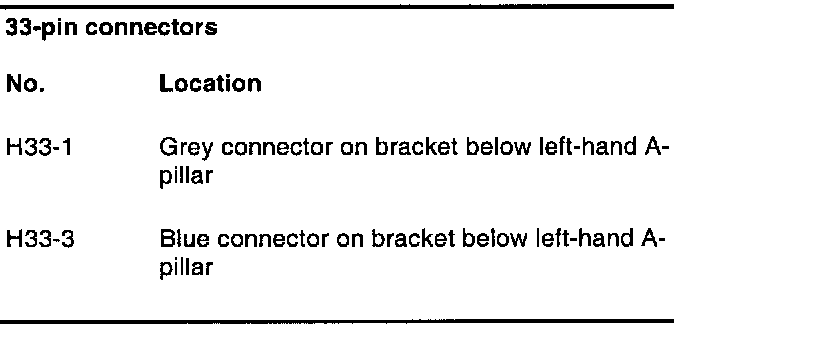

33-pin Connectors:






Crimp Connections:






Crimp Contacts:

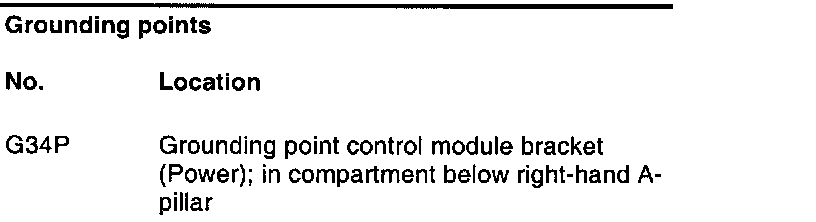

Grounding Points:
