Main Unit, Audio System 1




Main Unit, Audio System 1:

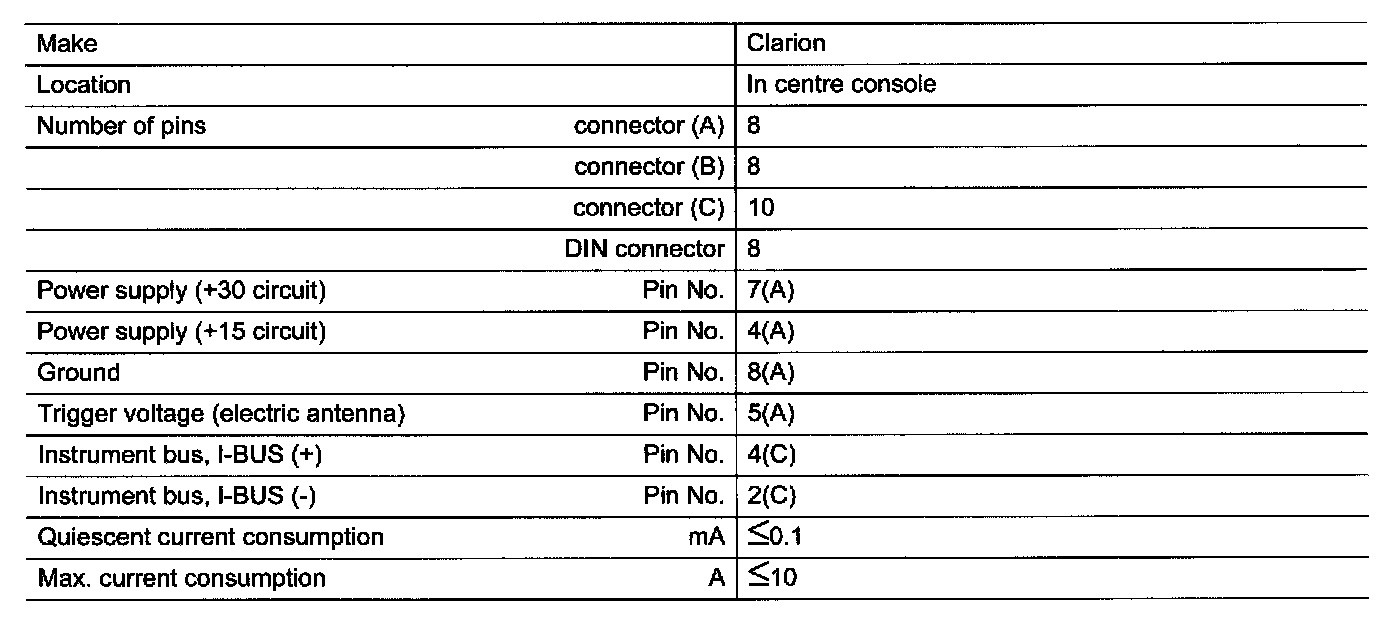

Main Unit, Audio System 1

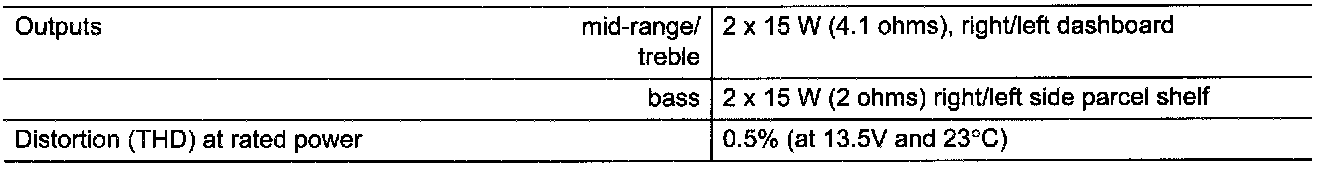

Amplifier, Internal

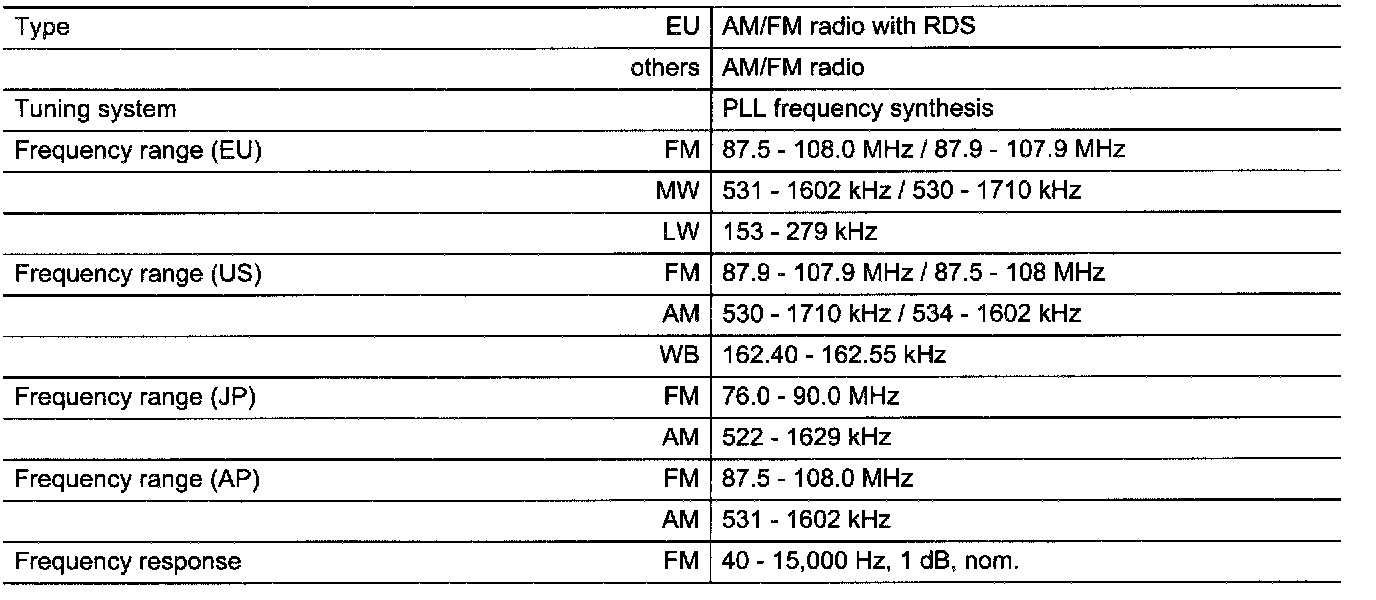

Radio

Cassette Player
Mechanism Microprocessor controlled
Noise reduction Dolby B, Dolby C (US)
Frequency response 40 - 16,000 Hz, ± 2dB, nom. (metallic tape, Dolby off)
