Main Unit Connections (Connections A, B, C)

Main Unit Connections (connections A, B, C):

Main Unit Connections (Connections A, B, C)

>=greater than; <= less than;
~=alternating current
(LP: LOGIC PROBE P = select pulse; p = visible pulses

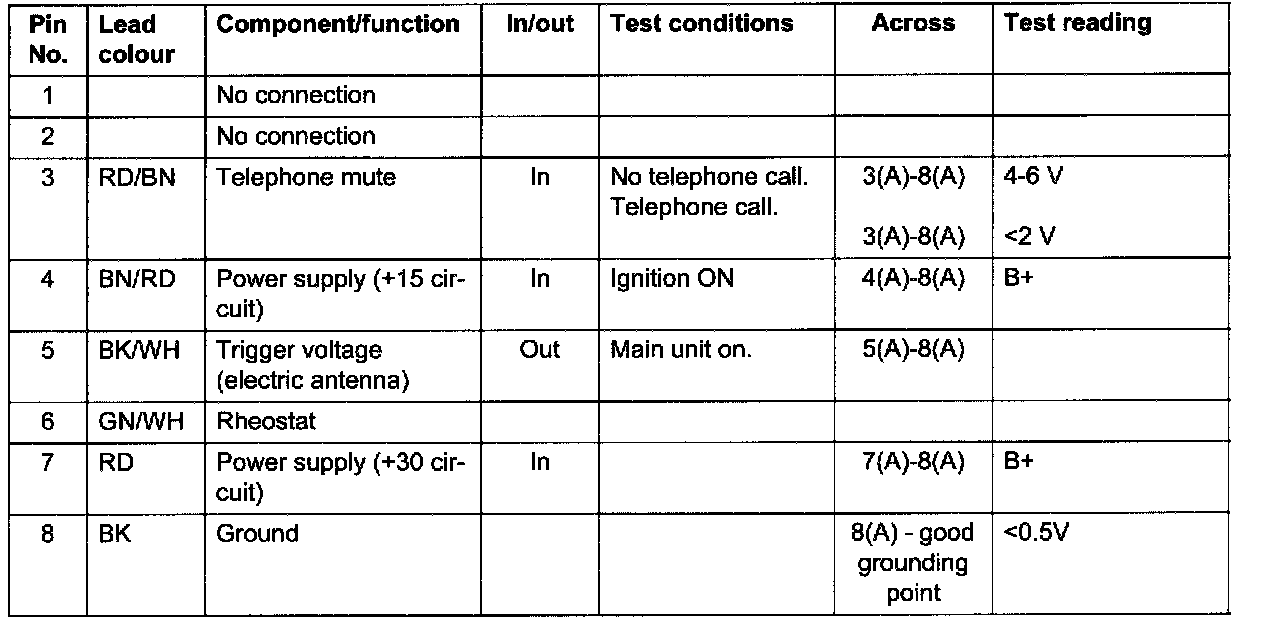

Connector (A)

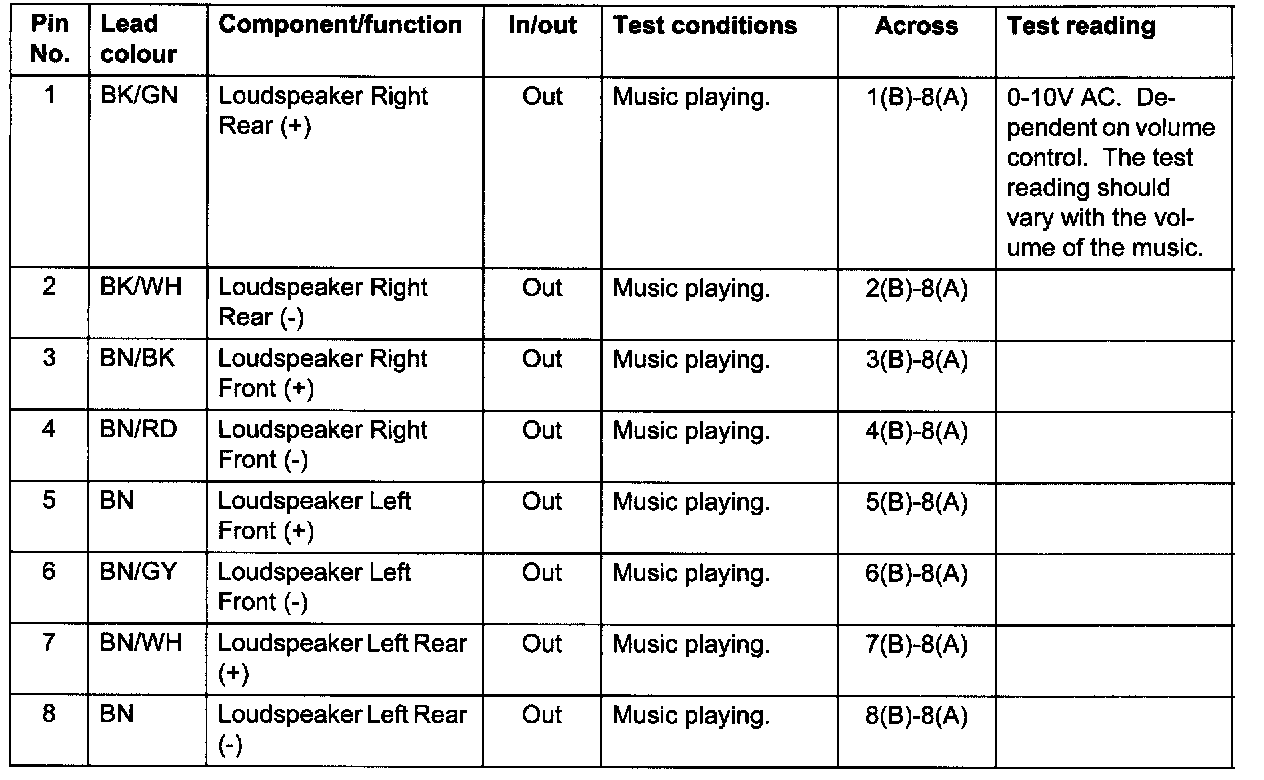

Connector (B)

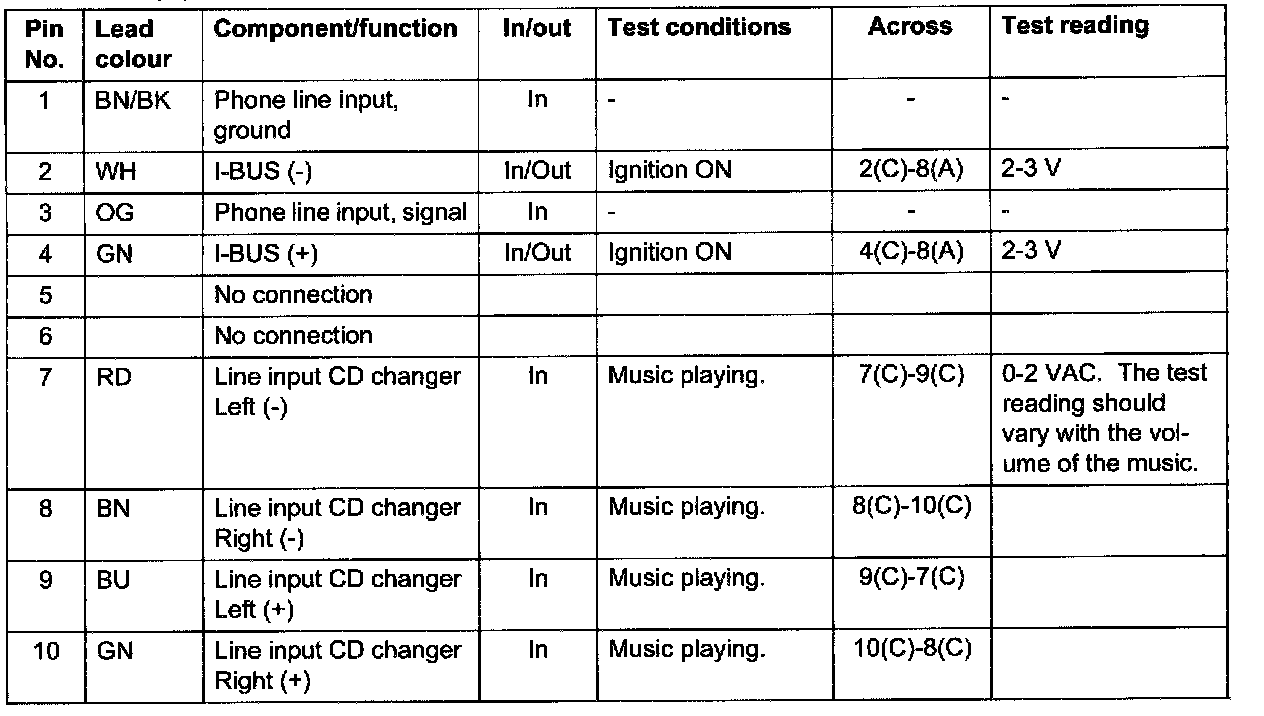

Connector (C)
