Amplifier: Testing and Inspection

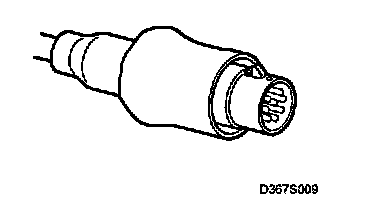

Din Connector

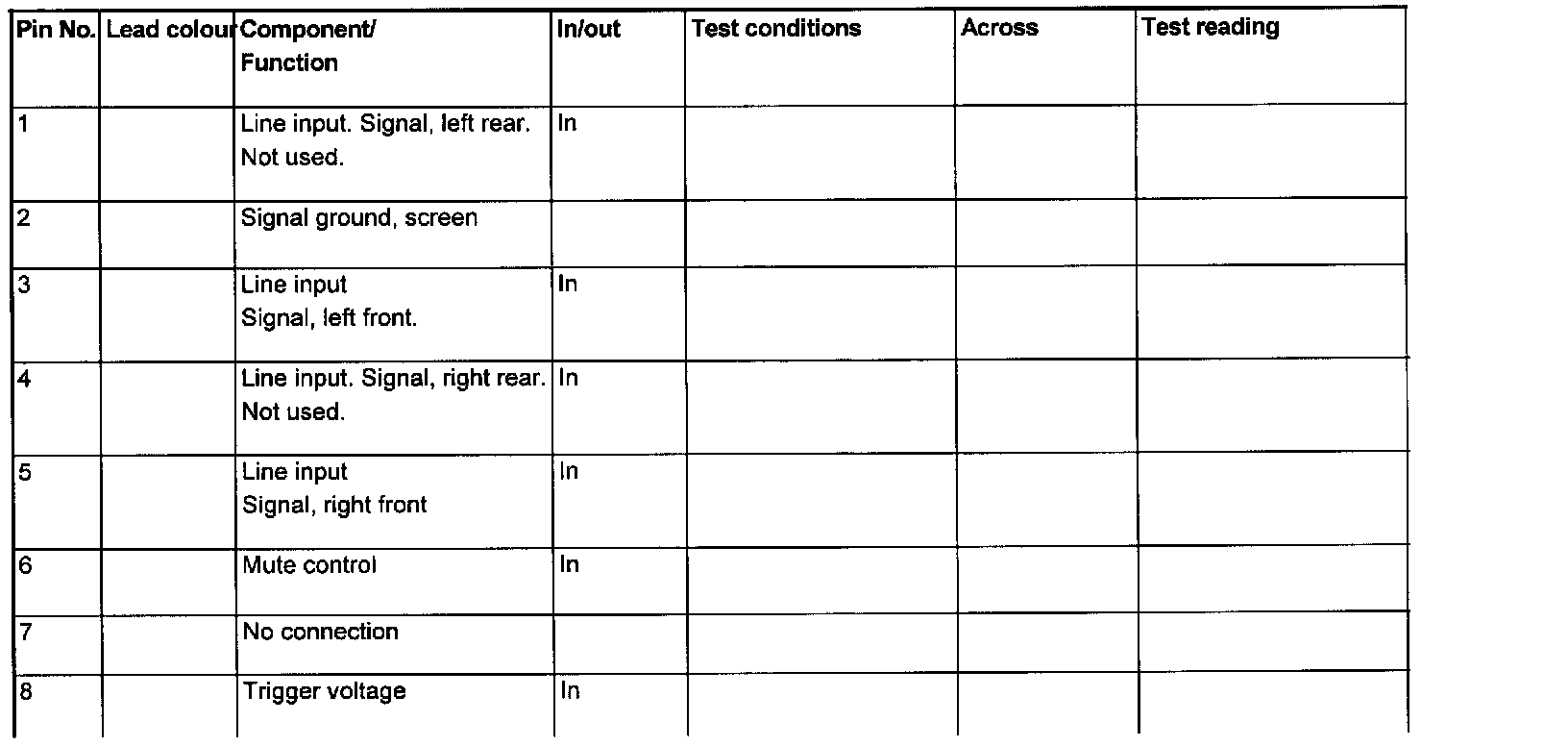

Main Unit Connections (DIN Connector):
Pin No. 1 - 8:
4-pin connector (loudspeaker)

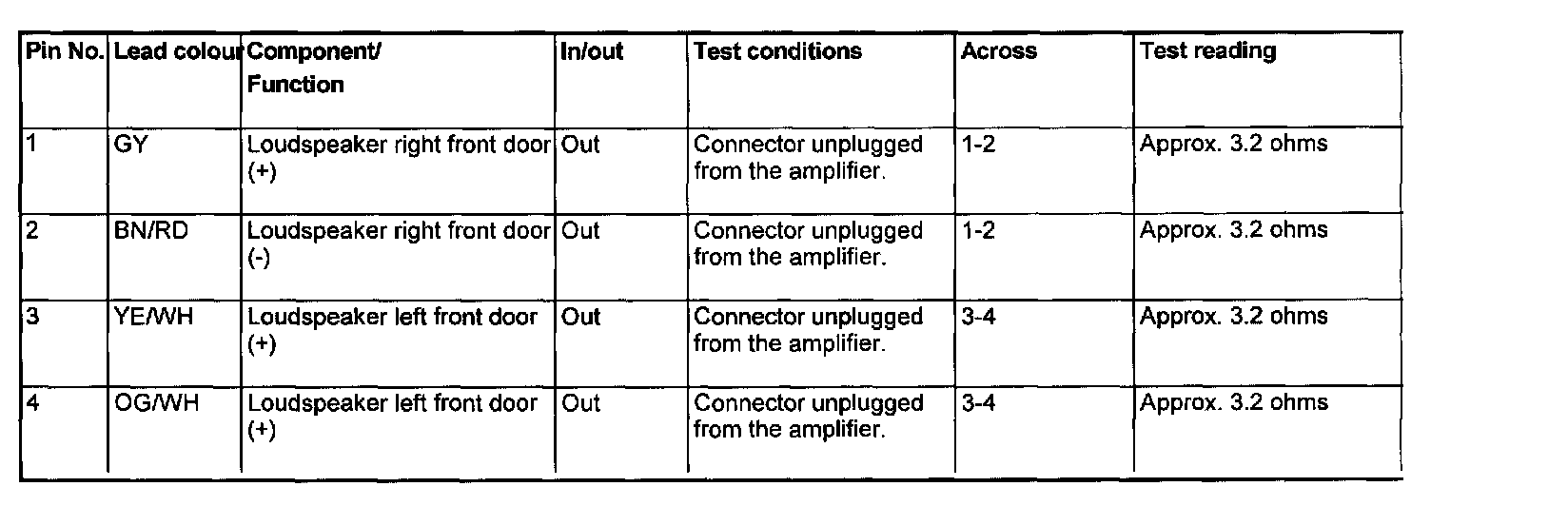

4-pin Connector (loudspeaker):
Pin No. 1 - 4:

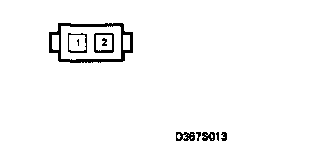

2-pin connector (power supply)

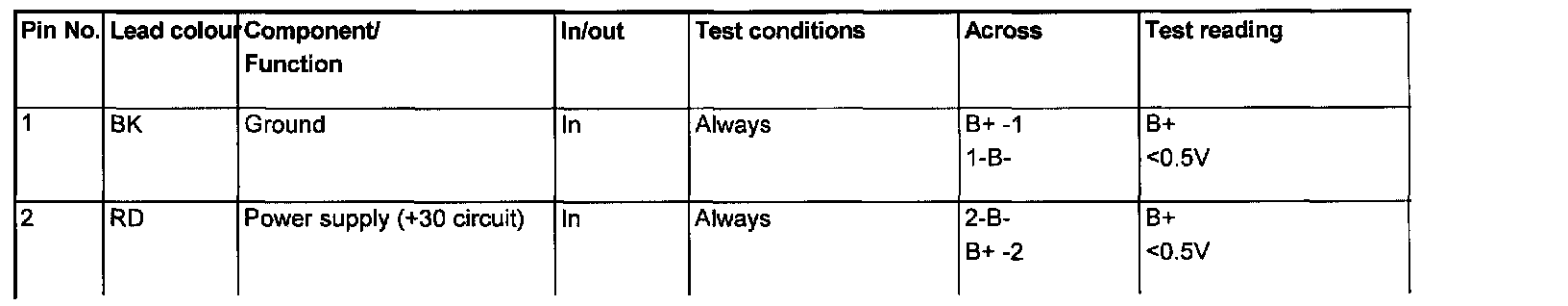

2-Pin Connector (Power Supply):
Pin No. 1 - 2:
