Amplifier: Service and Repair

To remove

External Amplifier:

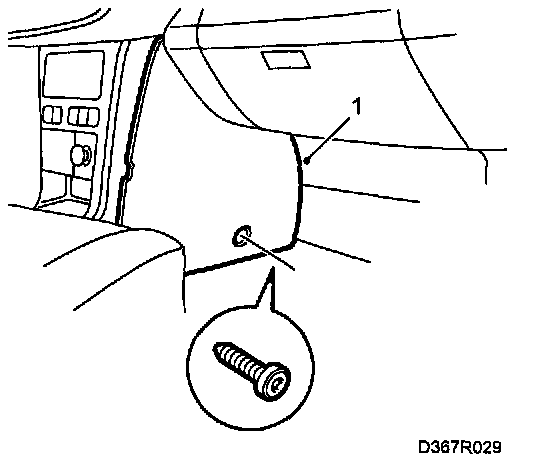

1 Remove the right-hand side panel to reveal the amplifier.

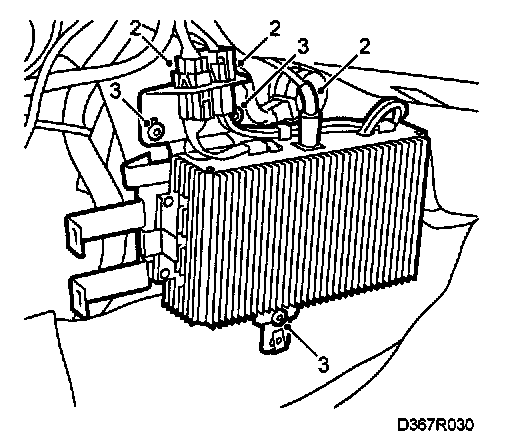

2 Unplug the three connectors.







3 Undo the three screws securing the amplifier.
4 Remove the amplifier from the console.

To fit
Fit in reverse order.
