Home >> Saab >> 1999 >> 9-3 Convertible (9400) L4-2.0L Turbo (B204) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Amplifier >> Description and Operation >> External Amplifier (AS3 - Pin Information)

External Amplifier (AS3 - Pin Information)

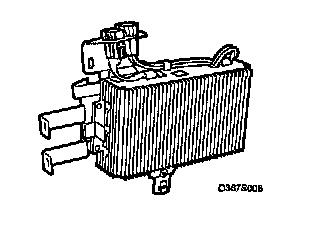

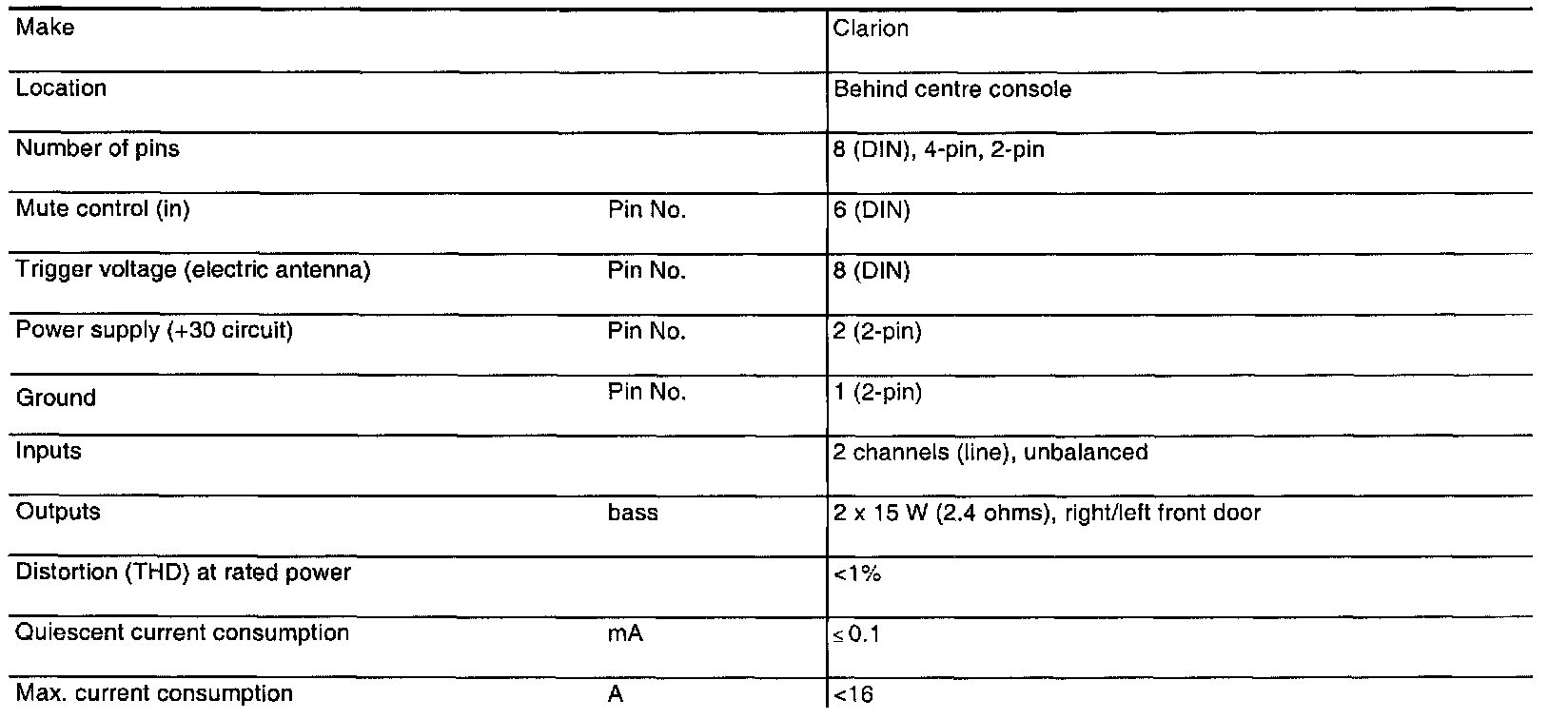

External Amplifier (Audio System 3):
