Setting - Clock/Date/Units/Language

SAAB INFORMATION DISPLAY (SID)

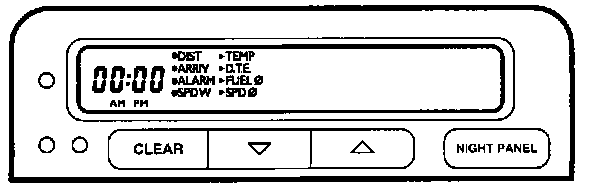

SID 1:

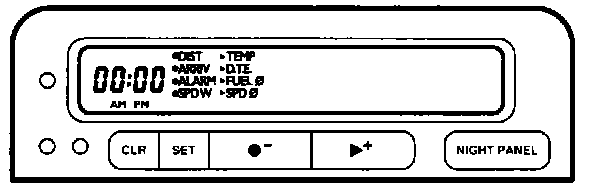

SID 2:

Setting the Clock:

Set the correct time with the buttons under the clock.


Setting the Date, SID 1:

^ Advance the trip computer with the "up" or "down" button until the temperature and date are shown.

^ Set the correct date by simultaneously pressing the CLEAR and "down" buttons for about I second until an audible signal is heard.

^ Set the year with the "up" or "down" button.

^ Press the CLEAR button and set the month with the "up" or "down" button.

^ Press the CLEAR button and set the day with the "up" or "down" button.

^ Press the CLEAR button once again and the trip computer will return to normal.

Selecting the Units of Measurement, SID 1:

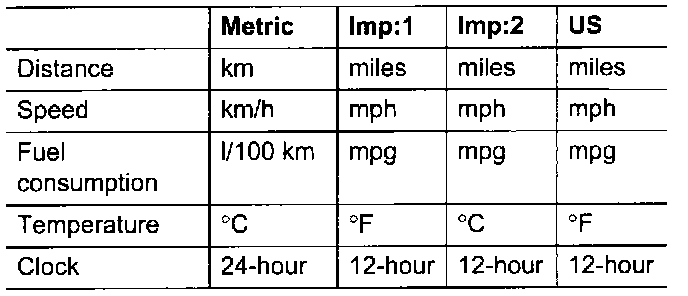

The trip computer has four different series of measurement units:



^ Set the correct series by simultaneously pressing the CLEAR and "up" buttons for four seconds until an audible signal is heard.

^ Select the desired series with the "up" or "down" button.

^ Press the CLEAR button twice and the trip computer will return to normal.


Selecting the Language, SID 1:

The trip computer can display messages in English, German, French, Spanish, Italian and Swedish.

^ Set the correct language by simultaneously pressing the CLEAR and "up" buttons for four seconds until an audible signal is heard.

^ Press the CLEAR button once.

^ Select the desired language with the "up" or "down" button.

^ Press the CLEAR button and the trip computer will return to normal.


Setting the Date, SID 2:

^ Advance the trip computer with the + (plus) button until the temperature and date are shown.

^ Set the correct date by pressing the SET button for about 1 second until an audible signal is heard.

^ Set the year with the - (minus) or + (plus) button.

^ Press the SET button and set the month with the - (minus) or + (plus) button.

^ Press the SET button and set the day with the - (minus) or + (plus) button.

^ Press the SET button once again and the trip computer will return to normal.


Selecting the Units of Measurement, SID 2:

The trip computer has four different series of measurement units:



^ Select the desired series by simultaneously pressing the CLEAR and SET buttons for four seconds until an audible signal is heard.

^ Select the desired series with the - (minus) or + (plus) button.

^ Press the SET button twice to return the trip computer to normal.


Selecting the Language, SID 2:

The trip computer can display messages in English, German, French, Spanish, Italian and Swedish.

^ Select the desired language by simultaneously pressing the CLEAR and SET buttons for four seconds until an audible signal is heard.

^ Press the SET button once.

^ Select the desired language with the - (minus) or + (plus) button.

^ Press the SET button and the trip computer will return to normal.
