Units and Languages




Units And Languages:






Settings

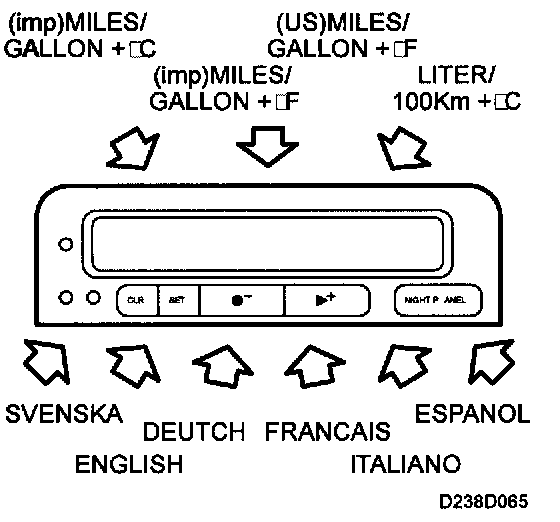

The SID unit contains four different combinations of units:
- litres/100km + °C (24 hour)
- miles/gallon (US) + °F (12 hour)
- miles/gallon (imp) + °F (12 hour)
- miles/gallon (imp) + °C (12 hour)

Messages can be obtained in six different languages:
- Swedish
- English
- German
- French
- Italian
- Spanish

SID 1
With the ignition ON, hold down the CLEAR and Arrow (down) keys together for longer than 4 seconds.

Enter the unit required by "scrolling" with the Arrow (down) or Arrow (up) key and press CLEAR to select the unit.

When the unit is selected, the language will be shown in the top row. Enter the required language with the Arrow (down) or Arrow (up) keys and select with CLEAR.

The setting can also be concluded by pressing the NIGHT PANEL key or turning off the ignition.







SID 2
With the ignition ON, hold down the CLR and SET keys together for longer than 4 seconds.

Enter the unit required by "scrolling" with the Dot (-) or Arrow (+) key and press SET or CLR to select the unit.

When the unit is selected, the language will be shown in the top row. Enter the required language with the Dot (-) or Arrow (+) key and select with CLR or SET.

The setting can also be concluded by pressing the NIGHT PANEL key or turning off the ignition.
