Function Keys

Function Keys:

The SID unit comes in two versions, SID 1 and SID 2.

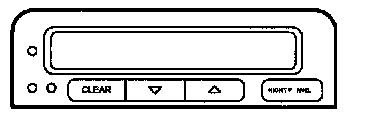

The following function keys are used on SID 1:

Key Description
O O To increase/reduce clock setting, enter RDS time.
CLEAR To clear the display message, zero the memory of the trip computer function and delete any service messages.
Arrow (down) Scroll "down".
Arrow (up) Scroll "up".
LIGHT PANEL Activate/deactivate Night Panel function.

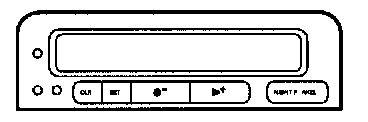

The following function keys are used on SID 2:

Key Description
O O To increase/reduce clock setting, enter RDS time.
CLR To clear the display message, zero the memory of the trip computer function and delete any service messages.
SET To program trip computer functions.
Dot (-) Scroll "down" and "reduce".
Arrow (+) Scroll "up" and "increase".
NIGHT PANEL Activate/deactivate Night Panel function.

The status of the function keys is sent as bus information.
