Home >> Saab >> 1999 >> 9-3 Convertible (9400) L4-2.0L Turbo (B204) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Cellular Phone >> Description and Operation >> Test Readings, 10-Pin Telephone Connector

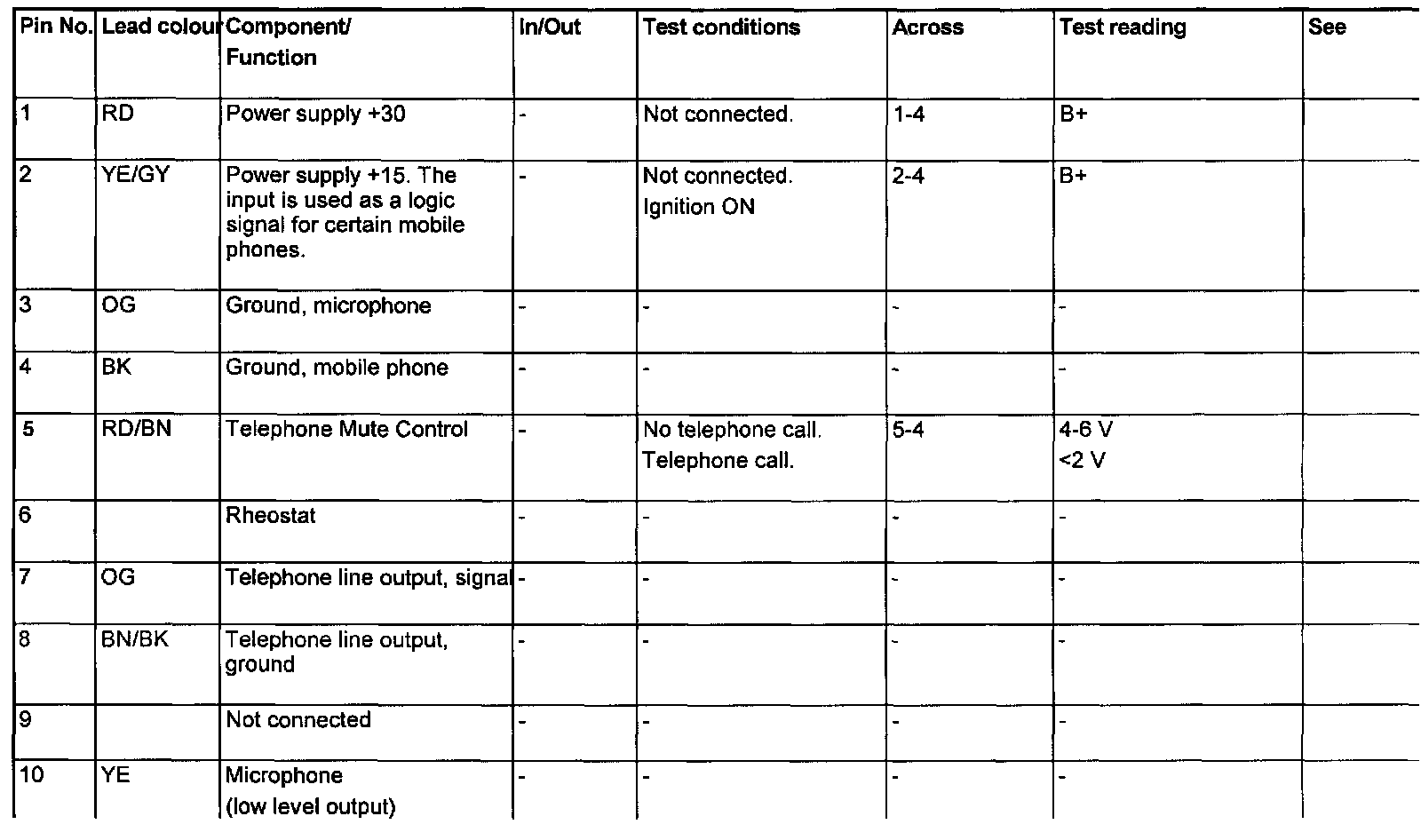

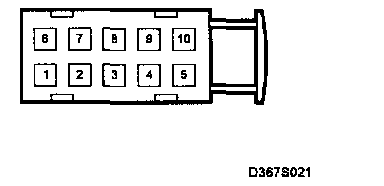

Test Readings, 10-Pin Telephone Connector




Test Readings, 10-Pin Telephone Connector:
