Cellular Phone Microphone: Service and Repair

To remove

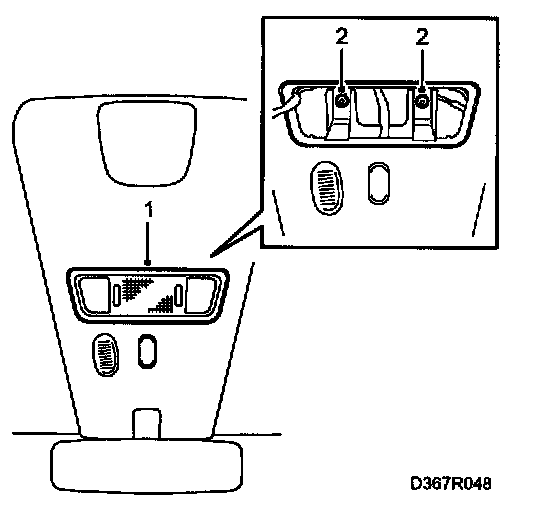

1 Remove the glass from the front roof console.
2 Remove the screws holding the roof console.
3 Remove the roof console (allow it to hang from the wires).

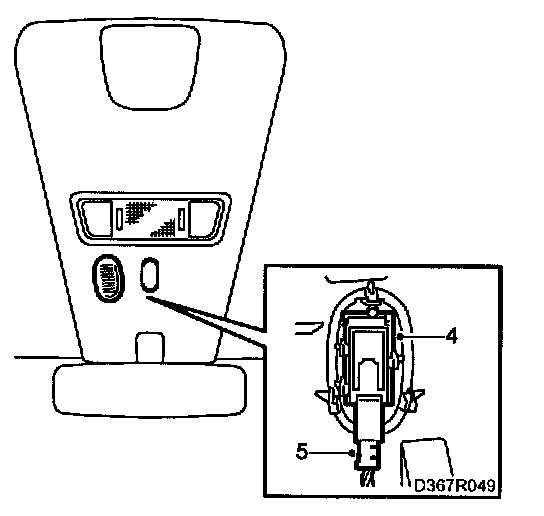

4 Detach the microphone from the console (3 clips).
5 Unplug the microphone connector.

To fit
Fit in reverse order.
