Tech 2 Menu Structure, Values, Activate, Immobilization, Adj.

Tech 2 Menu Structure


Diagnostic trouble codes (DTC)

Read Values / Activate

Immobilizer

Adjustment

Programming

Snapshot

System Information

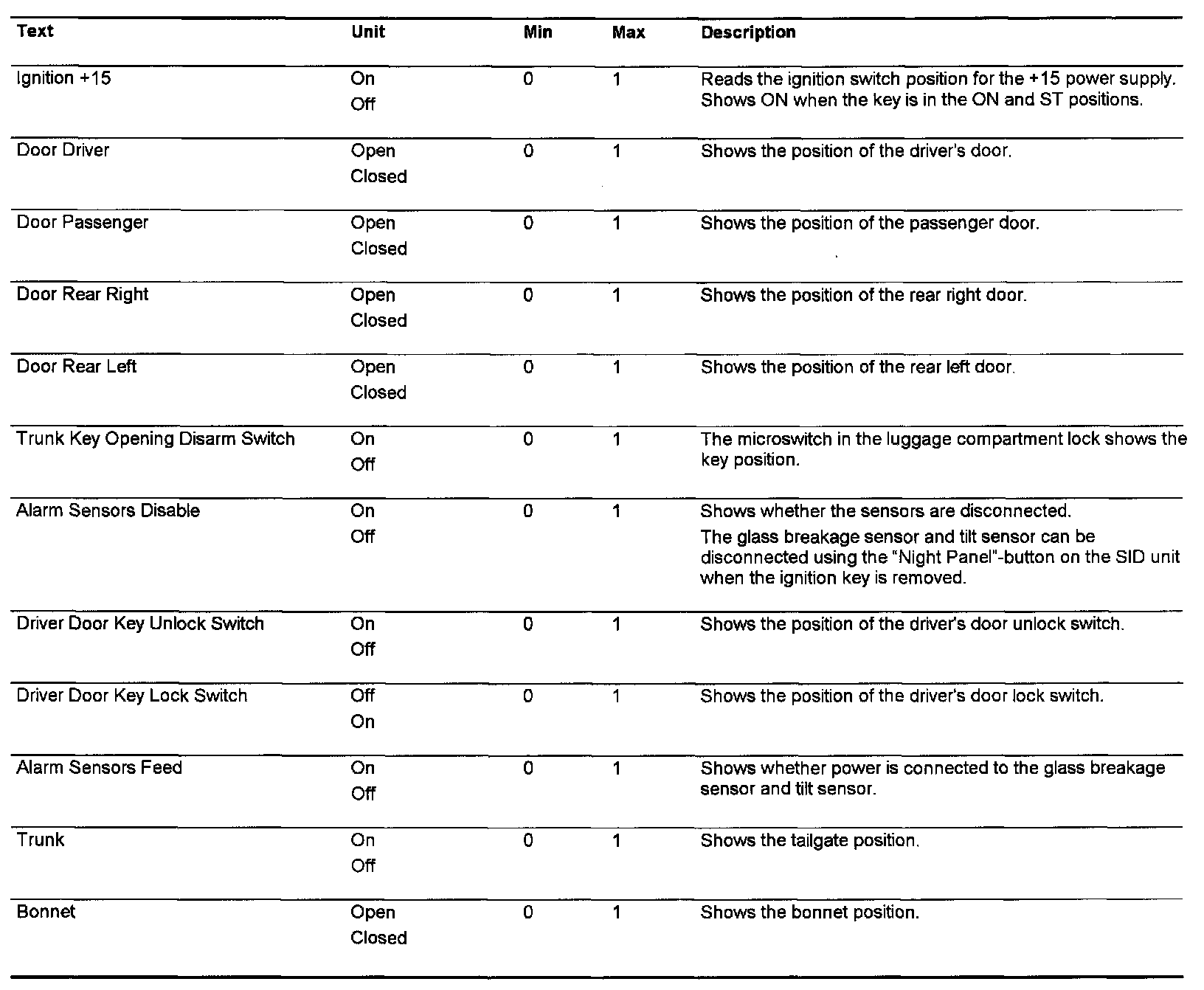

Menu "Read Values"

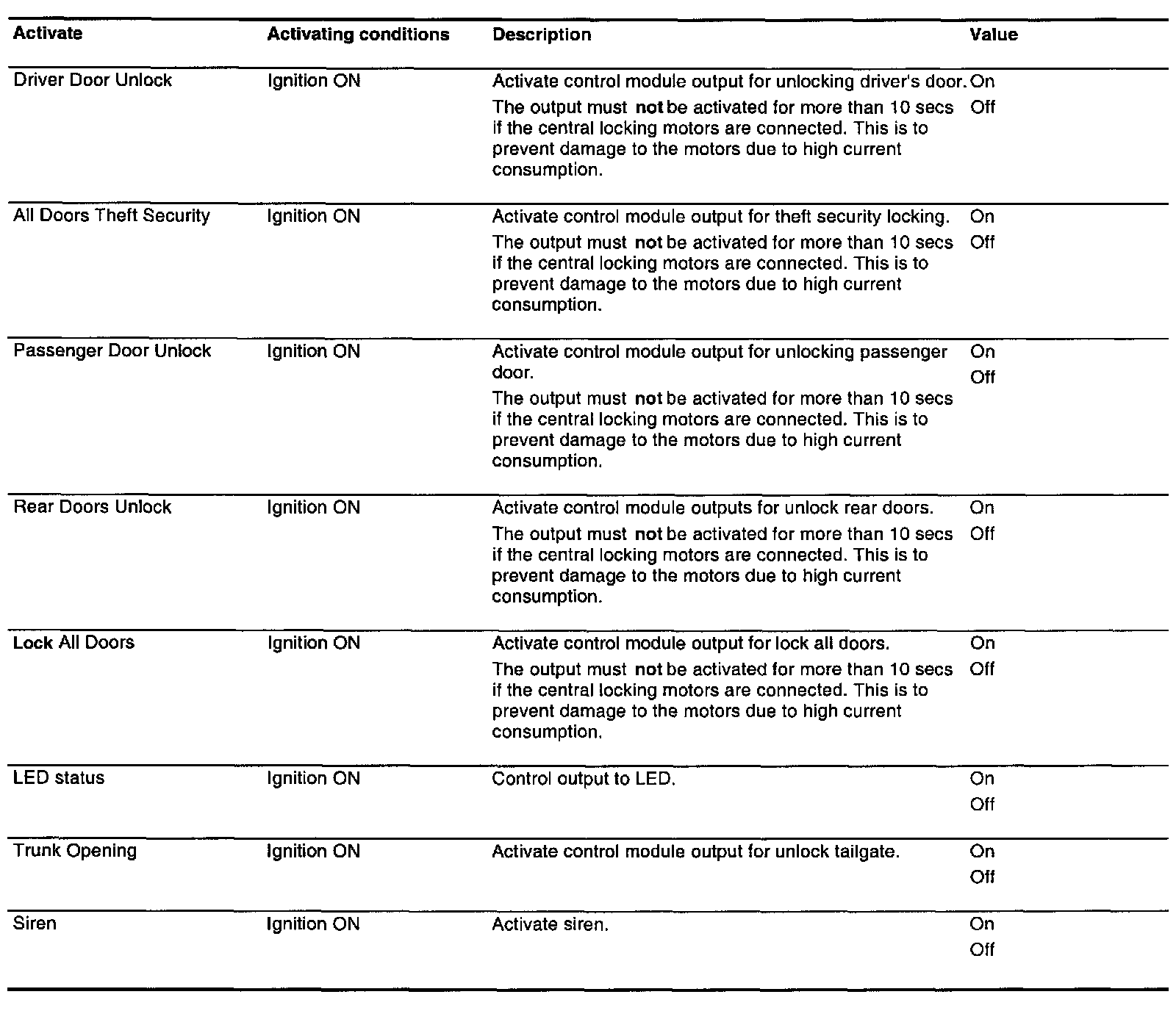

Menu "Activate"

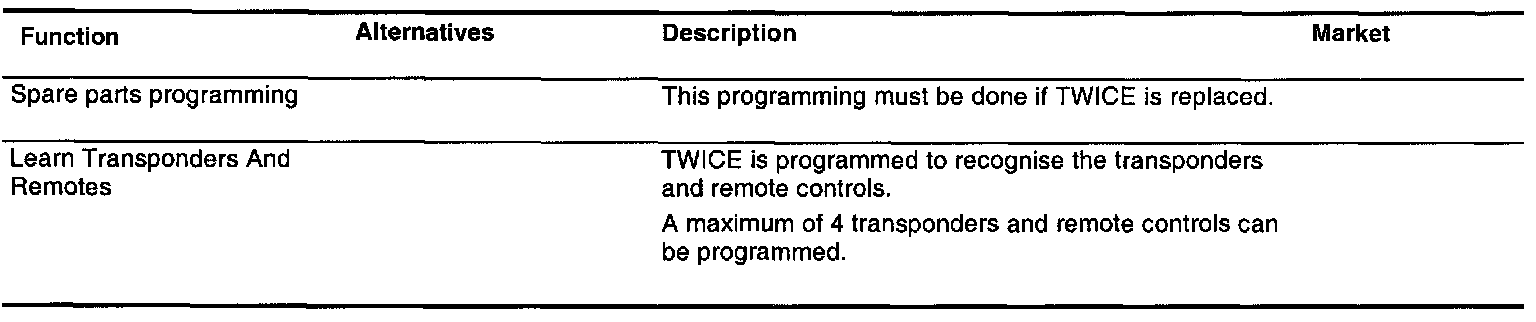

Menu "Immobilization"


Function Description
Immobilizer Combined programming of TWICE, MUI (Main Instrument Unit), and Engine Management System.
This programming must be done if one of these control modules is replaced

Menu "Adjustment"

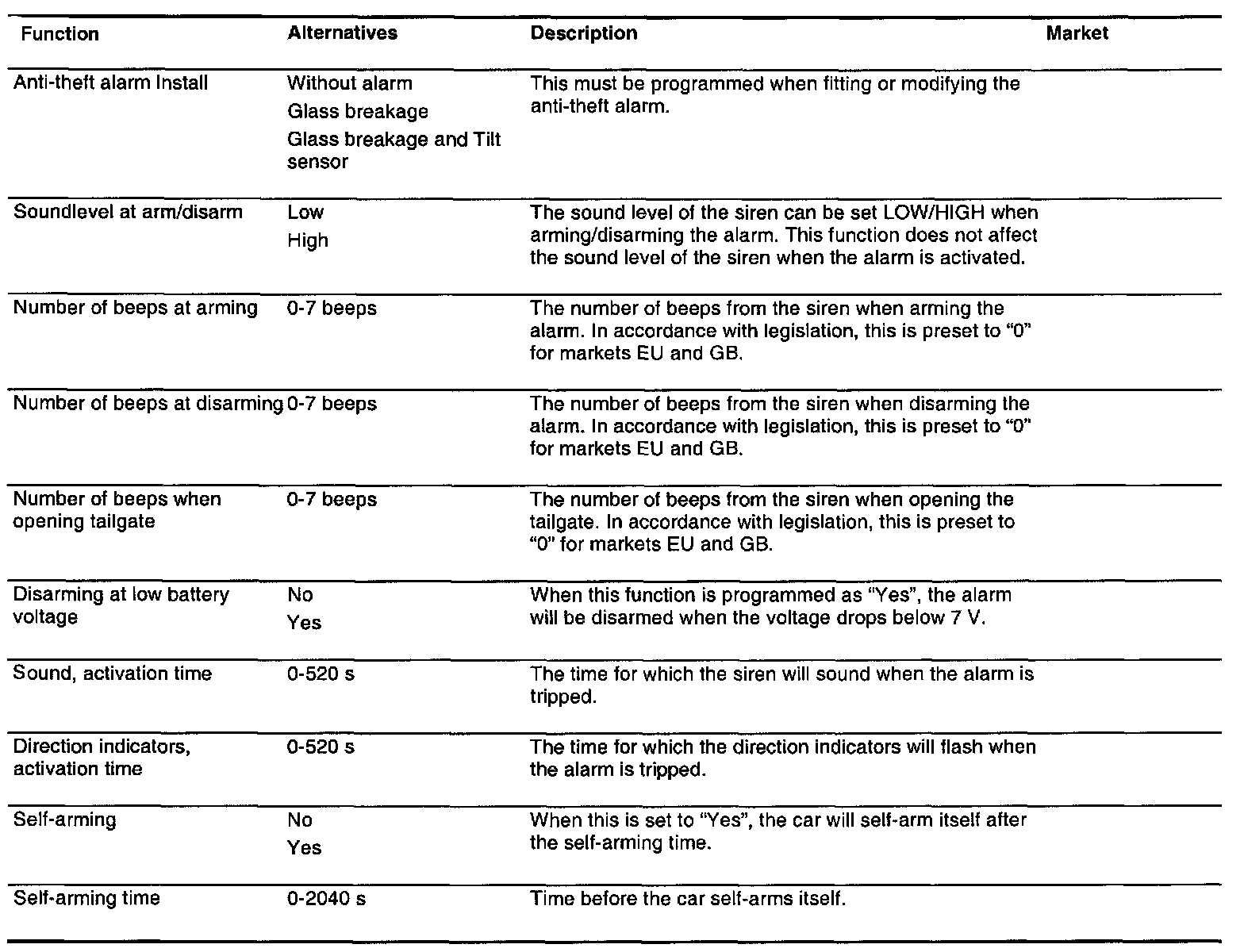

Menu "Programming"







Menu System Information


Next Function
Saab Part Number Shows the SAAB 7-digit part number for the control module.
ECU Hardware Version Number Shows the supplier's X-digit part number for the control module.
ECU Software version Shows the supplier's X-digit part number for the software.
