Security Lamp/Indicator: Service and Repair

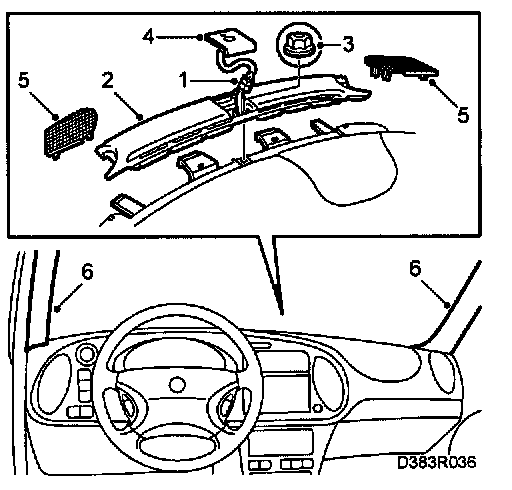

To remove







1 Remove the trim from the A-pillar by loosening the rubber strip and pulling off the trim (attached with clips).
2 Remove the right-hand loudspeaker grille.
3 Loosen the plate on which the LED is mounted by pushing it backwards and lining it slightly.
4 Remove the defroster cover by loosening the nut and lifting the cover straight upwards at the rear edge (attached by clips).
5 Disconnect the electrical connector and remove the plate on which the LED is mounted. Remove the LED from the plate.

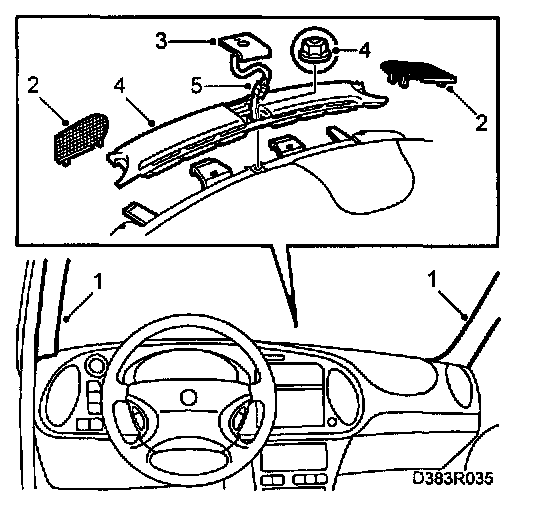

To fit







1 Fit the LED on the plate and attach the connector to the LED. Ensure that the connector is correctly positioned underneath the defroster cover.
2 Fit the defroster cover at the front edge first and then with the clips at the rear edge.
3 Fit the nut.
4 Push the plate with the LED into position.
5 Fit the loudspeaker grille.
6 Fit the trim on the A-pillar.
