Immobilizer, Petrol/Diesel Engine, Trionic T7 (Not OBD II)

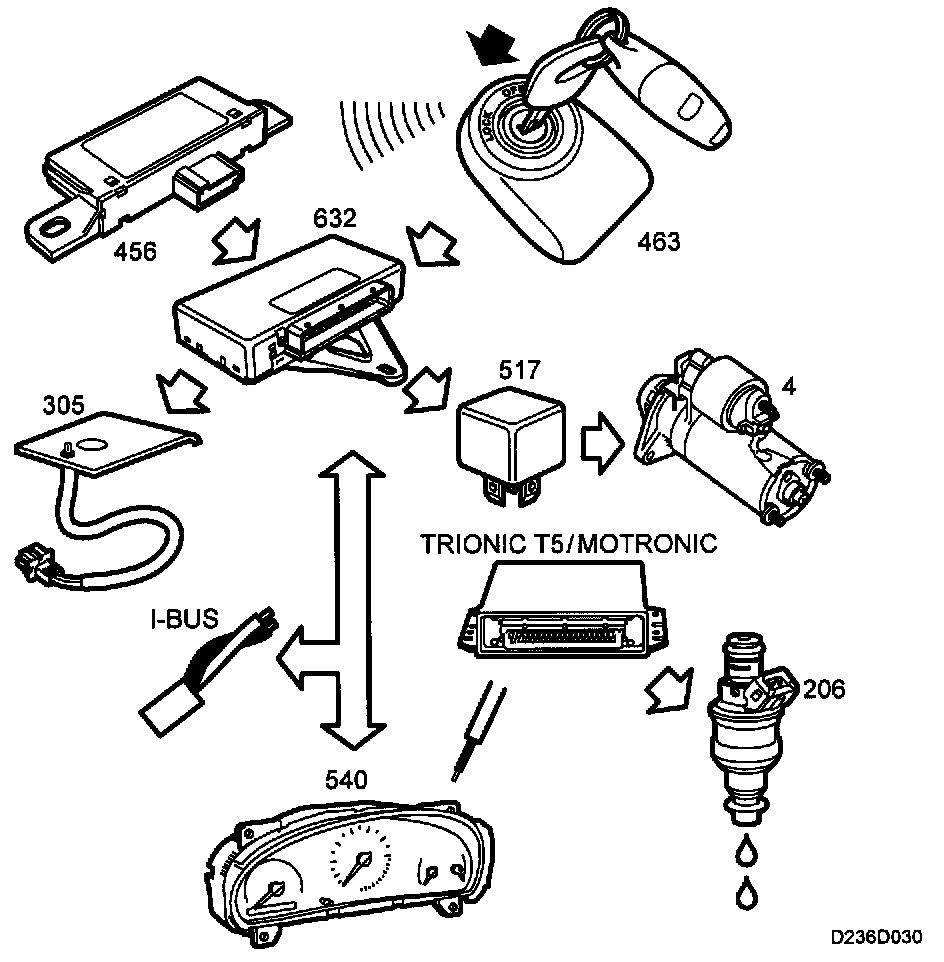

System Overview:

- Control module, TWICE (632)
- Car key
- Remote control
- Antenna unit, immobilizer (463)
- Antenna, remote control, central locking system (456)
- LED, anti-theft alarm (305)
- Main instrument unit (540)
- Engine management system, petrol (430a), (505), (589a)
- Injectors (206)
- Relay, starter relay (517)
- Starter motor (4)

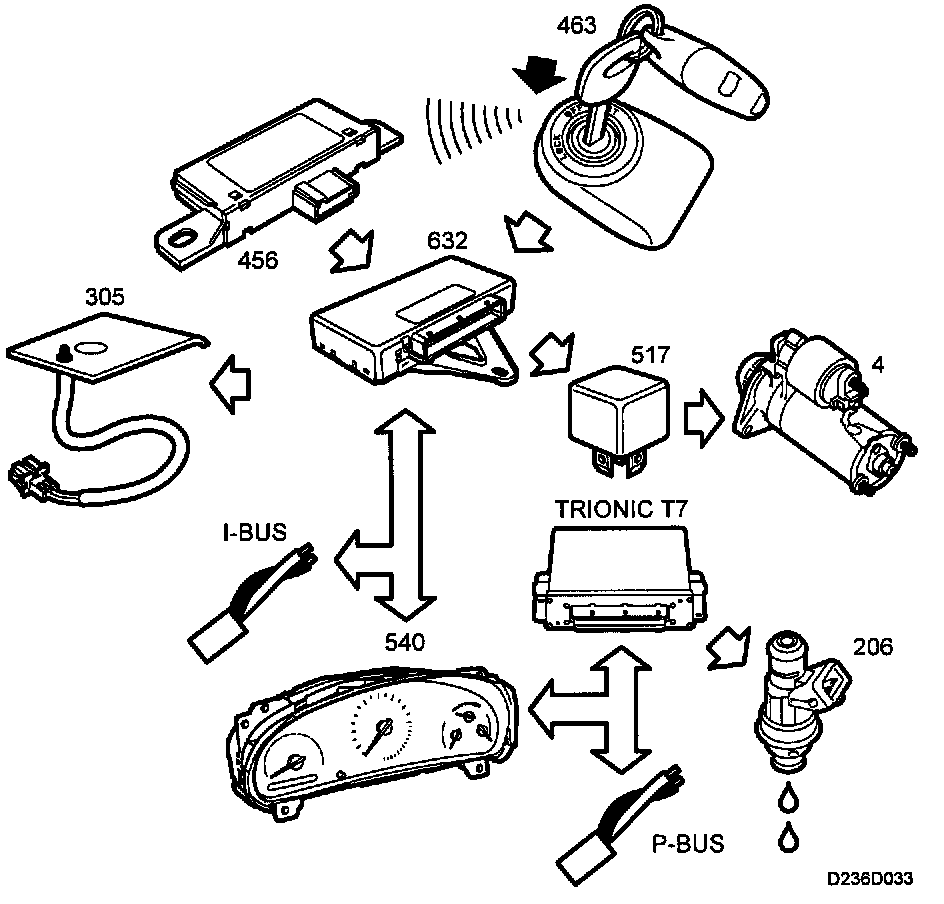

System Overview:

- Control module, TWICE (632)
- Car key
- Remote control
- Antenna unit, immobilizer (463)
- Antenna, remote control, central locking system (456)
- LED, anti-theft alarm (305)
- Main instrument unit (540)
- Engine management system, petrol (Trionic T7)
- Injectors (206)
- Relay, starter relay (517)
- Starter motor (4)

System Overview, Immobilizer, Diesel Engine:

- Control module, TWICE (632)
- Car key
- Remote control
- Antenna unit, immobilizer (463)
- Antenna, remote control, central locking system (456)
- LED, anti-theft alarm (305)
- Main instrument unit (540)
- Engine management system, diesel (595)
- Diesel pump (598)
- Relay, starter relay (517)
- Starter motor(4)
