Home >> Saab >> 1999 >> 9-3 Convertible (9400) L4-2.0L Turbo (B204) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Description and Operation >> TWICE >> System Overview >> Electric Luggage Compartment Opening

Electric Luggage Compartment Opening

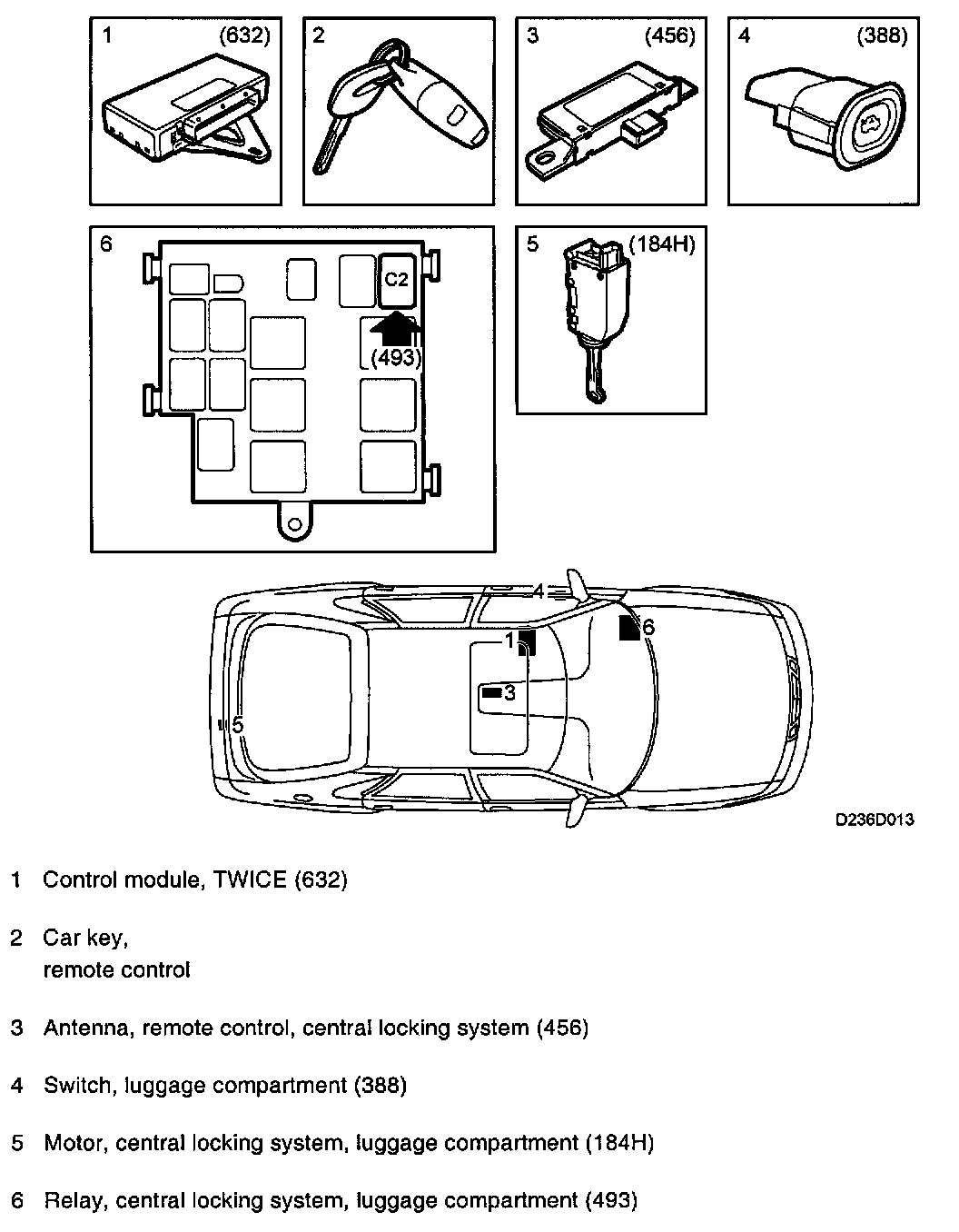

System Overview:






- Control module, TWICE (632)
- Car key
- Remote control
- Antenna, remote control, central locking system (456)
- Switch, luggage compartment (388)
- Motor, central locking system, luggage compartment (184H)
- Relay, central locking system, luggage compartment (493) (Not present on Convertibles)

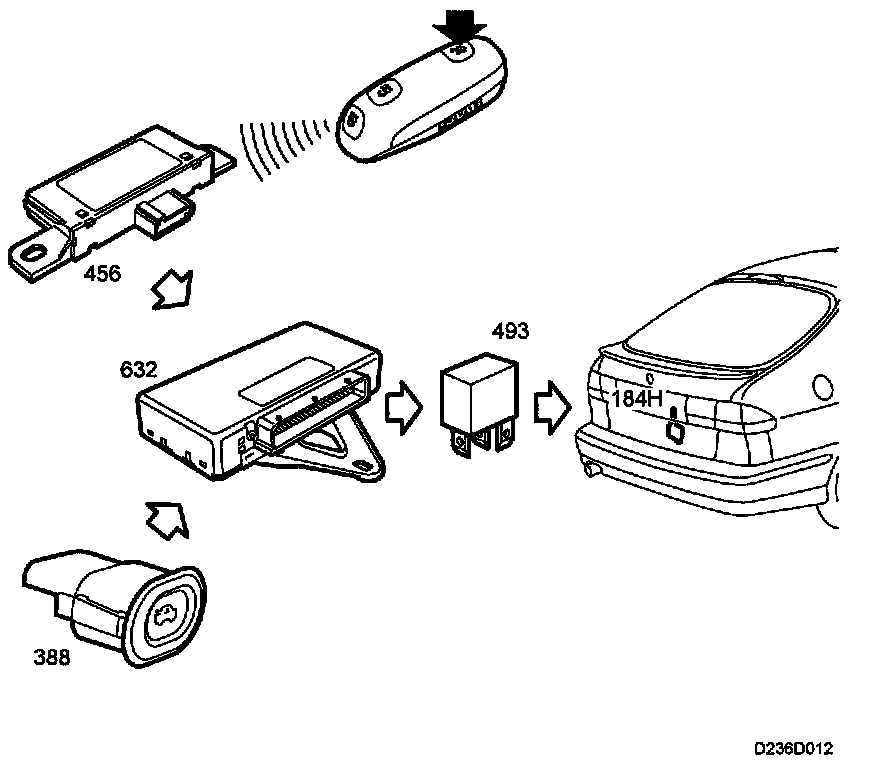

Main Components:
