Control Module Inputs/Outputs/Bus/TrionicT7/Power Supply/Ground

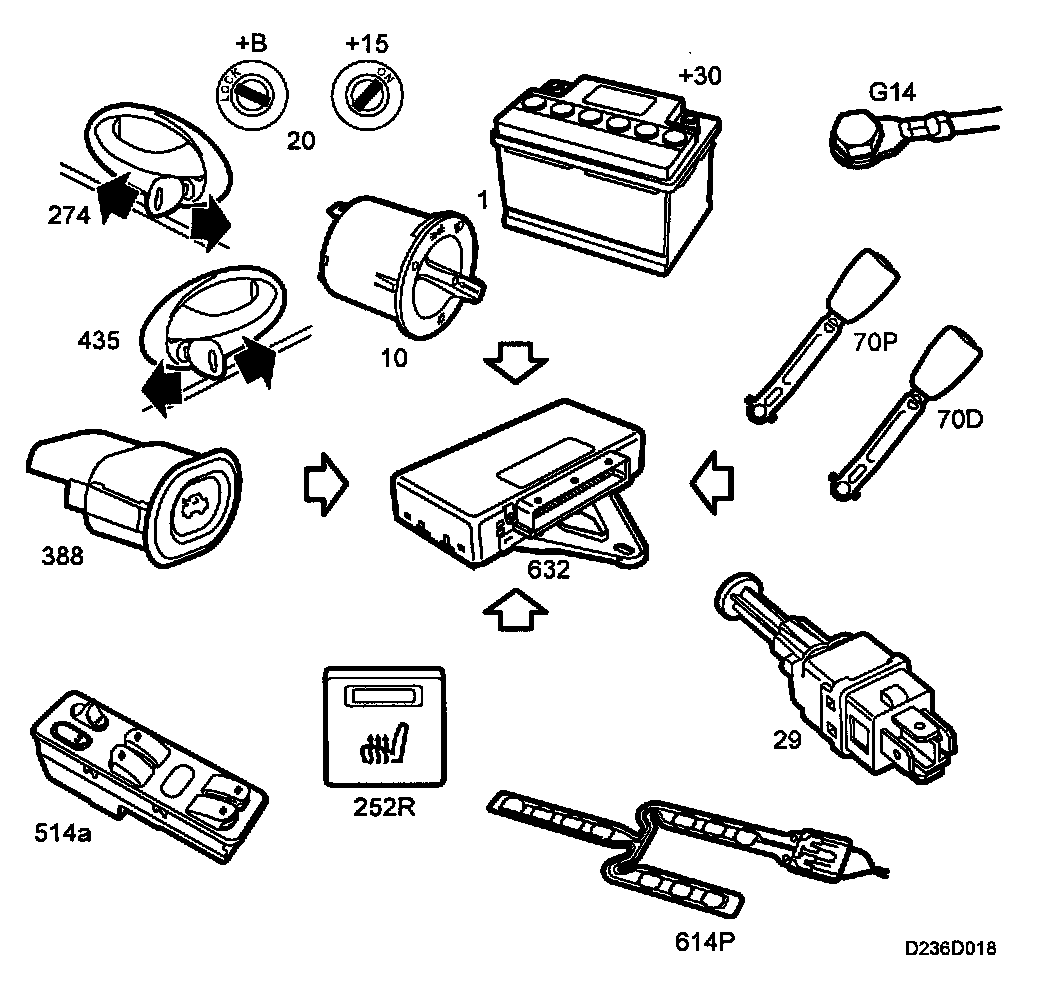

Control Module Inputs - 1:

- Power supply +B (20)
- Power supply +15 (20)
- Power supply +30 (1)
- Power ground (G14)
- Signal ground (G14)
- Lamps, parking lights rear left/right, power supply from switch (10)
- Lamps, brake lights, power supply (29)
- Seat belt switch, driver (70D)
- Seat belt switch, passenger (70P)
- Sensor for occupied seat cushion, front passenger (614P)
- Switch, heated rear seat, request (252R)
- Switch, simultaneous closure central locking system (514a)
- Central locking system, driver's door locking button (184D)
- Switch, luggage compartment unlocking (388)
- Central locking system, power supply (25/22A)
- Microswitch, central locking system, driver's door locking/unlocking with key (274)
- Microswitch, central locking system, passenger door locking/unlocking with key (435)

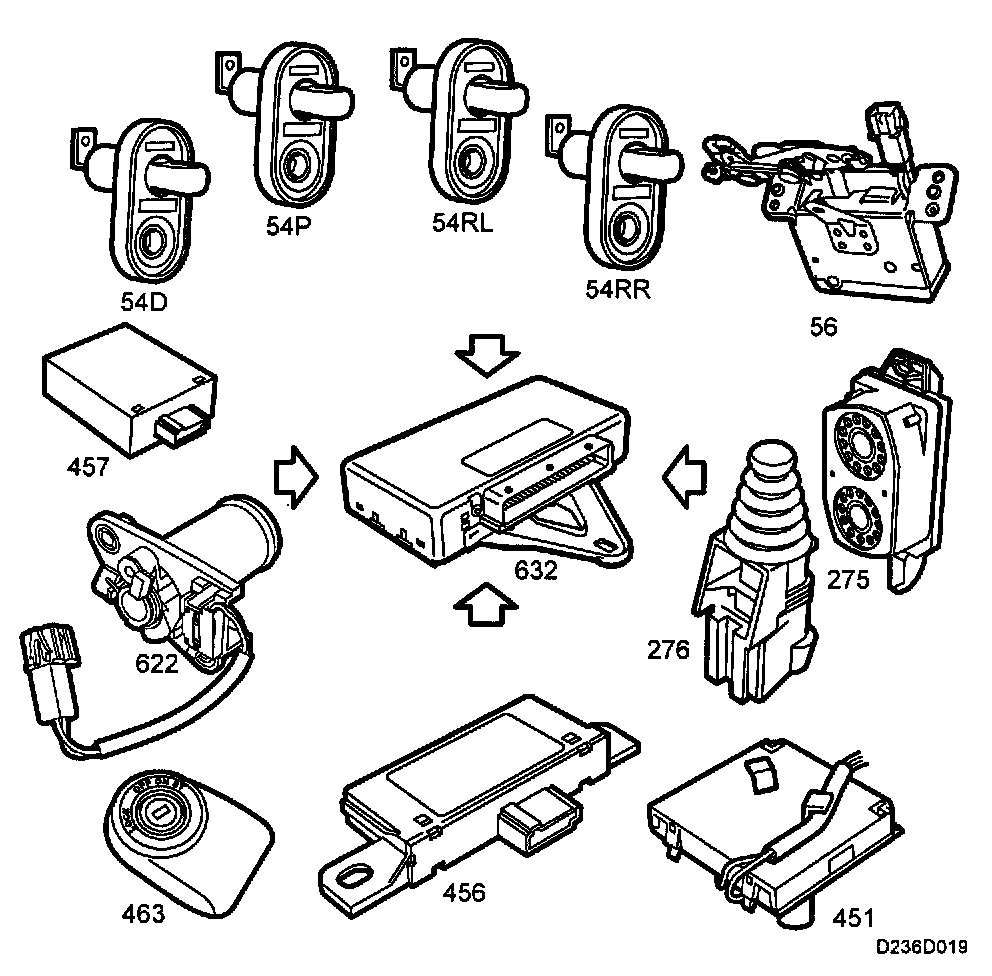

Control Module Inputs - 2:

- Door switch, front left (54D)
- Door switch, front right (54P)
- Door switch, rear left (54RL)
- Door switch, rear right (54RR)
- Bonnet switch, anti-theft alarm (276)
- Switch, luggage compartment illumination 3D/5D (56)
- Switch, luggage compartment illumination, convertible (56)
- Glass breakage sensor (451)
- Tilt sensor (457)
- Antenna, remote control, central locking system (456)
- Antenna unit, immobilizer (463)
- Microswitch, luggage compartment lock (622)
- Siren, anti-theft alarm (275)

Control Module Inputs, Bus:

- Ignition +B (on/off) from DICE (628)
- Ignition +15 (on/off) from DICE (628)
- Ignition +54 (on/off) from DICE (628)
- Ignition +50 (on/off) from DICE (628)
- Vehicle speed (km/h, mph) from MIU (540)
- Identification number from MIU (540)
- SID buttons (Night Panel) from SID (541)
- Outside temperature (°C) from SID (541)
- Soft top position (up/in motion/down) from STC (565)
- Diagnostics communication

For a more detailed description of the control module's input information from the bus, See Powertrain Management/Computers and Control Systems/Information Bus
For a further description of diagnostics, See Powertrain Management/Computers and Control Systems/Information Bus

Control Module Inputs, Bus (Trionic T7):

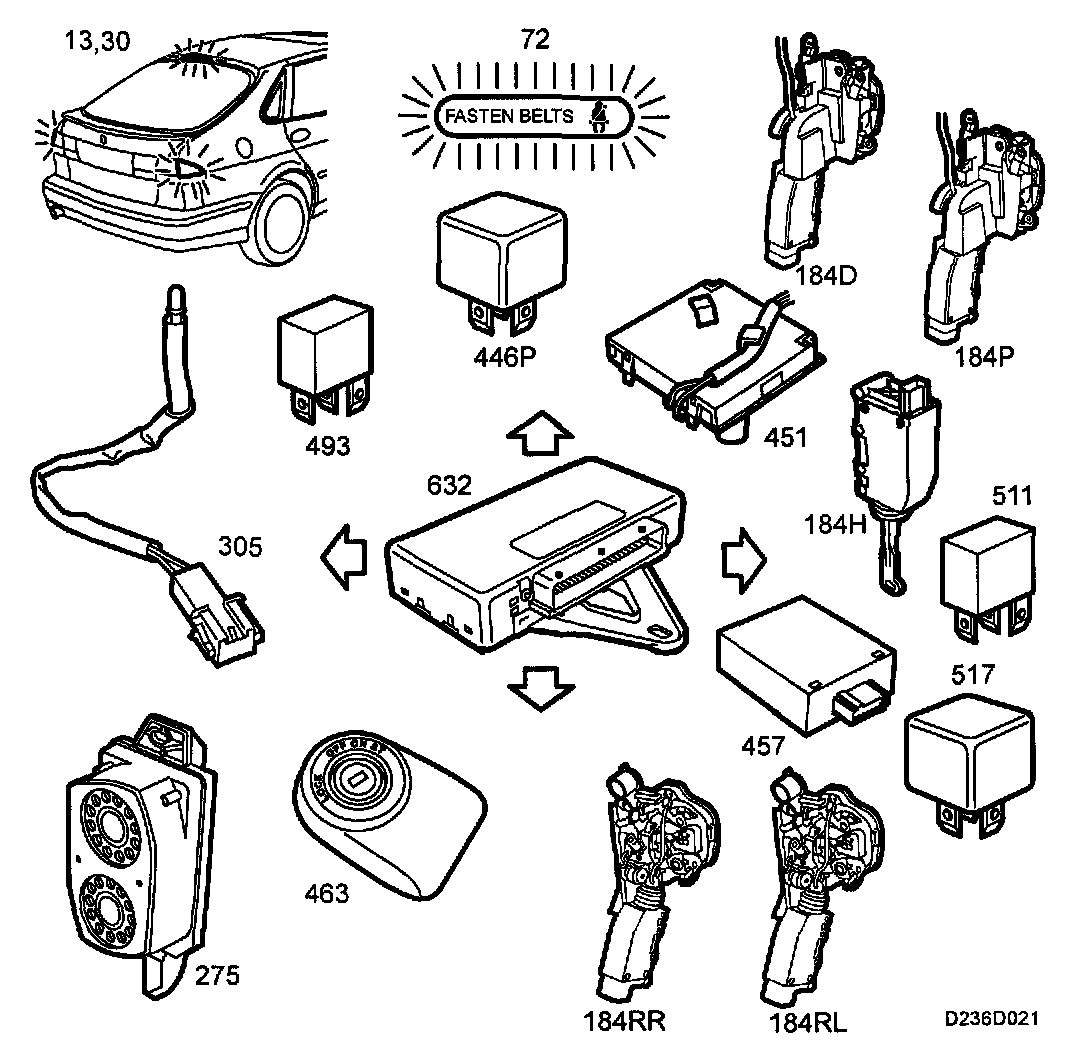

Control Module Outputs:

- Lamps, brake lights, left/right (30RL, 30RR)
- Lamps, brake lights, high-level (30RC)
- Lamps, parking lights, rear left/right (13RL, 13RR)
- Warning lamp, seat belt, ground (72)
- Relay, heated rear seat. Ground (511)
- Relay, heated passenger seat. Ground (446P)
- Motor, central locking system, doors, locking/unlocking (184D, 184P, 184RL, 184RR)
- Motor, central locking system, doors, control voltage theft security locking (184D, 184P, 184RL, 184RR)
- Motor, central locking system, luggage compartment, operating current (184H)
- Relay, luggage compartment opening (493)
- Antenna unit, immobilizer, power supply (463)
- Starting relay, immobilizer (517)
- Glass breakage sensor, power supply (451)
- Tilt sensor, power supply (457)
- LED, anti-theft alarm (305)
- Siren, anti-theft alarm (275)

Control Module Inputs, Bus:

- Left Rear Light Faulty (yes/no) used by SID (541)
- Right Rear Light Faulty (yes/no) used by SID (541)
- Left Rear Light (on/off) used by DICE (628)
- Right Rear Light (on/off) used by DICE (628)
- Left Brake Light Faulty (yes/no) used by SID (541)
- Right Brake Light Faulty (yes/no) used by SID (541)
- High Level Brake Light Faulty (yes/no) used by SID (541)
- Brake lights (on/off) used by SID (541)
- Sound (sound information) used by SID (541)
- Driver's door (open/closed) used by MIU (540), PSM (357Dk), DICE (628)
- Passenger door (open/closed) used by MIU (540), PSM (357Dk), DICE (628)
- Left Rear Door (open/closed) used by MIU (540), DICE (628)
- Right Rear Door (open/closed) used by MIU (540), DICE (628)
- Luggage compartment (open/closed) used by MIU (540), DICE (628), STC (565)
- Test Brake Lights (on/off) used by SID (541)
- Horn used by SID (541)
- Direction indicators (on/off) used by DICE (628)
- Text message used by SID (541)
- Steering Wheel Location (LHD/RHD) used by ACC (216), MIU (540)
- Immobilizer (on/off) used by MIU (540)
- Key Correct (on/off) used by Audio (353)
- Central locking system (unlocked/locked) used by DICE (628)
- Diagnostics communication

For a more detailed description of the control module's input information from the bus, See Powertrain Management/Computers and Control Systems/Information Bus
For a further description of diagnostics, See Powertrain Management/Computers and Control Systems/Information Bus

Control Module Inputs, Bus (Trionic T7):

Control Module:

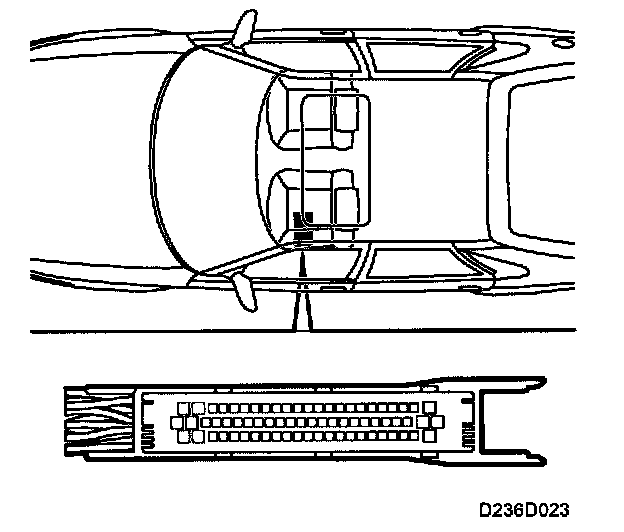

The control module for the TWICE system is placed under the left-hand front seat. It is connected to the components used in the system via a 70 pin connector.

The task of the control module, as a central unit, is to monitor and control the components and functions in the system as follows:
- TWICE - controls the power supply to the various functions in the system. The power is supplied direct via the control module and via external relays, which are grounded through the control module.
- TWICE - is connected to the instrument bus (I-bus) and thus receives, processes and sends out information (communicates) via the bus with other car systems (control modules) connected to the bus.
- TWICE - in the event of a fault stores the diagnostic trouble codes, which can be read using the diagnostic instrument (Tech 2).
- TWICE - is programmable. Certain functions can be programmed to comply with legislation, market and customer demands and the car's equipment.

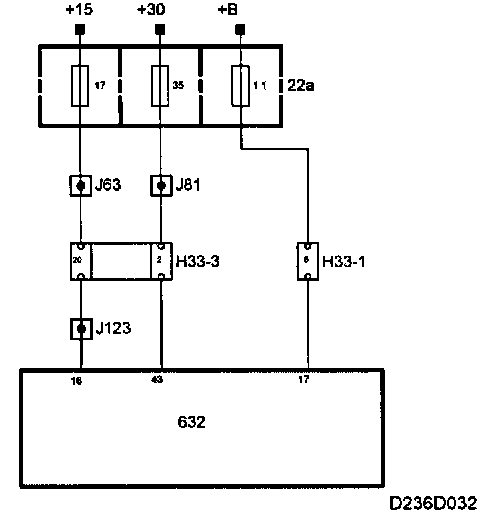

Control Module Power Supply:

Power supply +30
From fuse 35 (22a) to control module, pin 43.

Power supply +15
From fuse 17 (22a) to control module, pin 16.

Power supply +B
From fuse 11 (22a) to control module, pin 17.

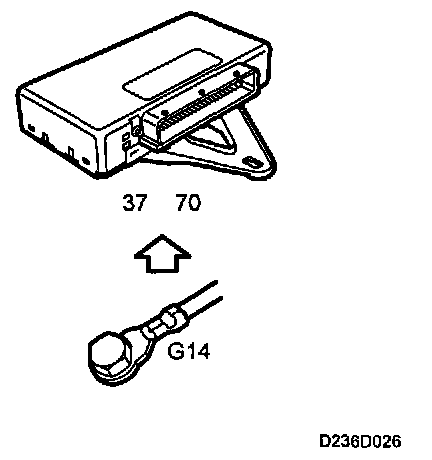

Control Module Ground:

Ground connection, power ground
The control module is grounded at grounding point G14 via pin 70.

Ground connection, signal ground
The control module is grounded at grounding point G14 via pin 37.
