Control Module Inputs, Outputs For the Anti-Theft Alarm, Bus
Control Module Inputs For the Anti-Theft Alarm

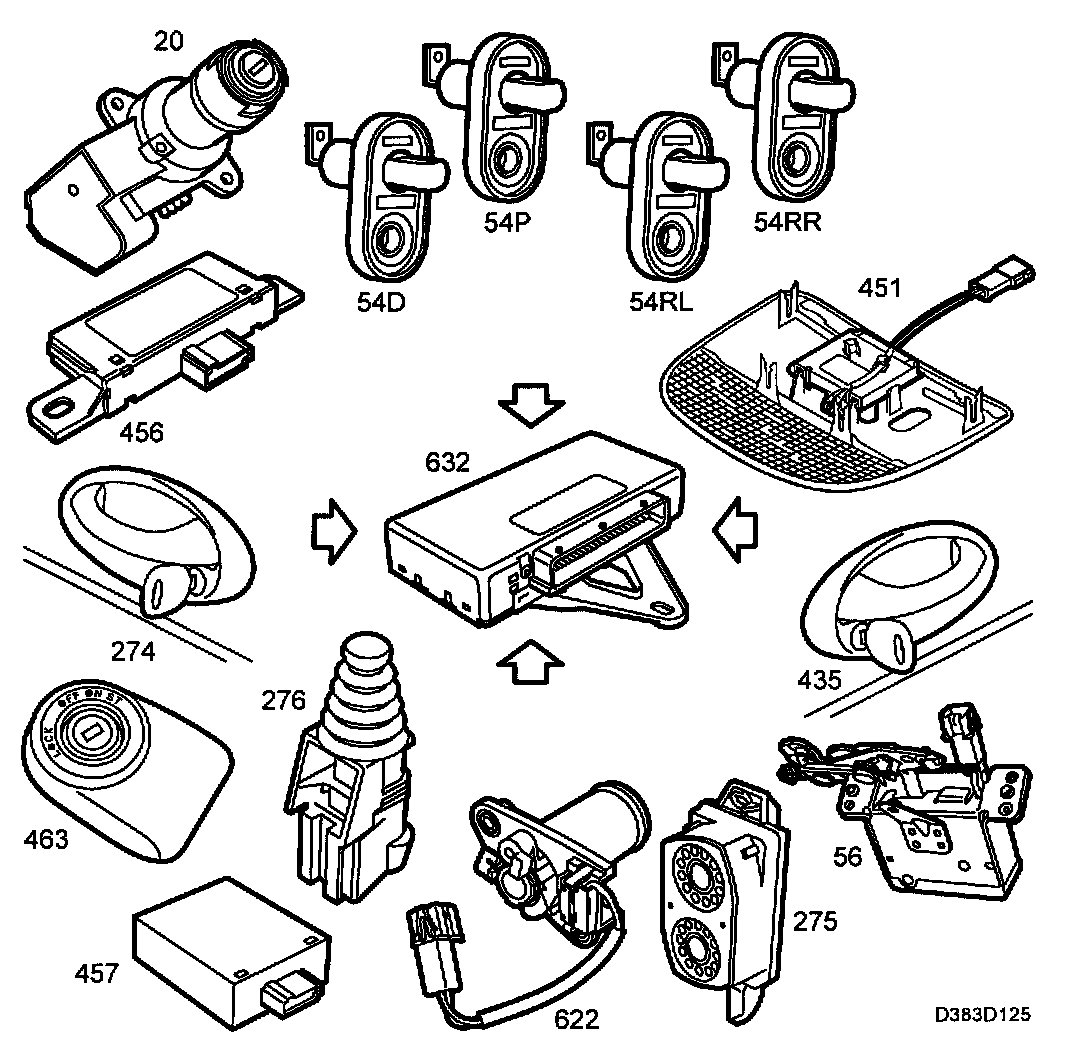

Control Module Inputs For The Anti-theft Alarm:
- Microswitch, driver's door (274)
- Microswitch, passenger door (435)
- Door switch, front left (54D)
- Door switch, front right (54P)
- Door switch, rear left (54RL)
- Door switch, rear right (54RR)
- Bonnet switch, anti-theft alarm (276)
- Switch, luggage compartment illumination, 3D/5D (56)
- Switch, luggage compartment illumination, convertible (56)
- Microswitch, luggage compartment look (622)
- Glass breakage sensor (451)
- Angle sensor (457)
- Antenna, remote control, central locking system (456)
- Antenna unit, immobilizer (463)
- Ignition switch (20)
- Siren, anti-theft alarm (275)
Control Module Inputs For the Anti-Theft Alarm, Bus
Control Module Inputs, Bus:
- SID buttons (Night Panel) from SID (541)
- Soft top position (up/in motion/down) from STC (565)
- Diagnostics communication
For a more detailed description of the control module's input information from the bus, see Bus communication For a further description of diagnostics, see Bus and diagnostics communication.
See Powertrain Management/Computers and Control Systems/Information Bus/Description and Operation/Diagnostics Communication
Control Module Outputs For the Anti-Theft Alarm

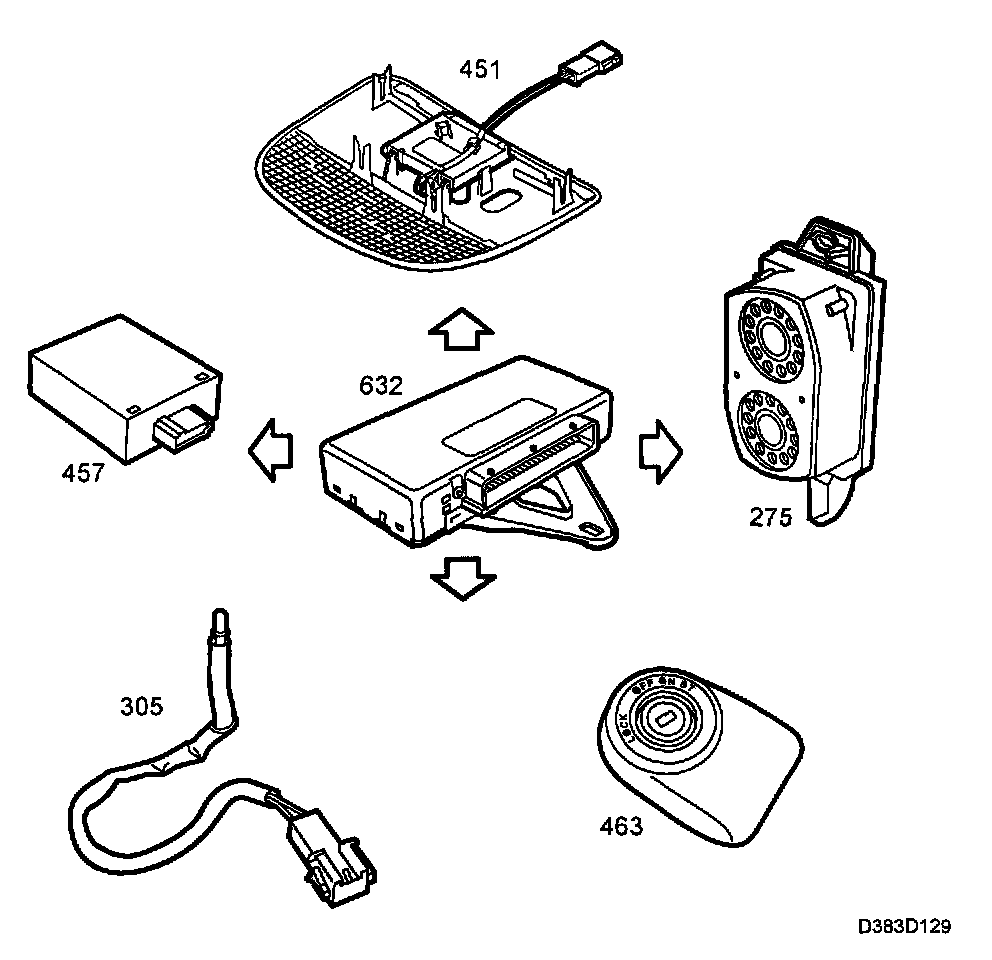

Control Module Outputs For Anti-theft Alarm:
- Glass breakage sensor, power supply (451)
- Angle sensor, power supply (457)
- LED, anti-theft alarm (305)
- Siren, anti-theft alarm (275)
- Immobilizer antenna unit, power supply (463)
Control Module Outputs For the Anti-Theft Alarm, Bus
Control Module Inputs, Bus:
- Text message used by SID (541)
- Direction indicators (on/off) used by DICE (628)
- Diagnostics communication
For a more detailed description of the control module's input information from the bus, see Bus communication For a further description of diagnostics, see Bus and diagnostics communication.
See Powertrain Management/Computers and Control Systems/Information Bus/Description and Operation/Diagnostics Communication
