Alarm Horn: Service and Repair

To remove







1 Raise the car and remove the left front wheel.

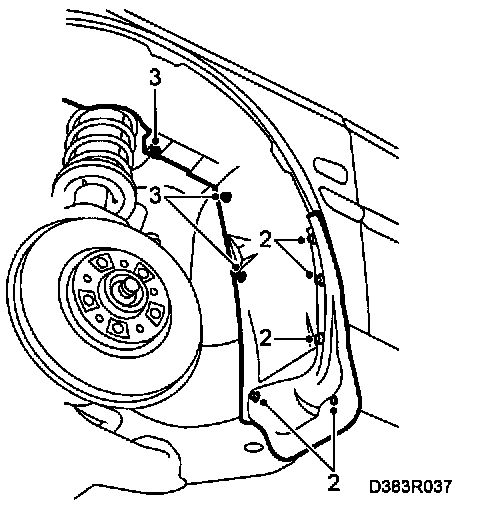

2 Remove the left front mudflap.
3 Loosen 2 nuts and a rivet that hold the rear edge of the wing liner.

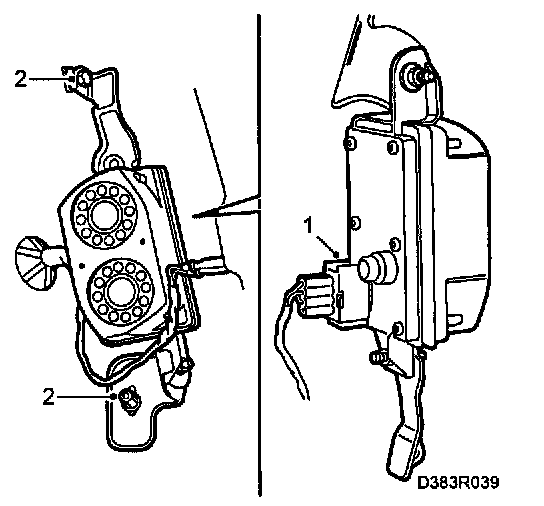

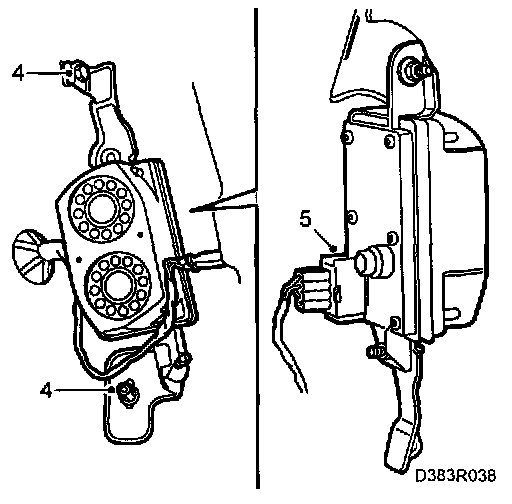

4 Remove the 2 nuts that hold the siren.







5 Disconnect the electrical connector and remove the siren.

To fit







1 Fit the connector on the siren.
2 Fit the siren.
3 Fit the wing liners using the 2 nuts and a rivet.







4 Fit the mudflap.
5 Fit the left front wheel and lower the car to the ground.
