Antenna Rod

To remove







1 Remove the aerial.

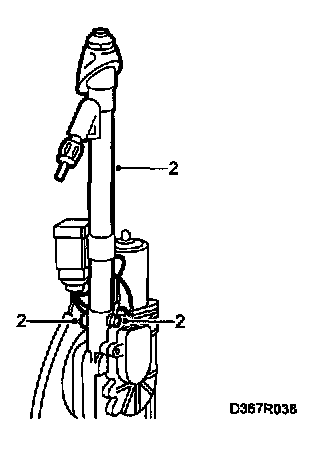

2 Undo the screws securing the antenna tube and pull out the tube.

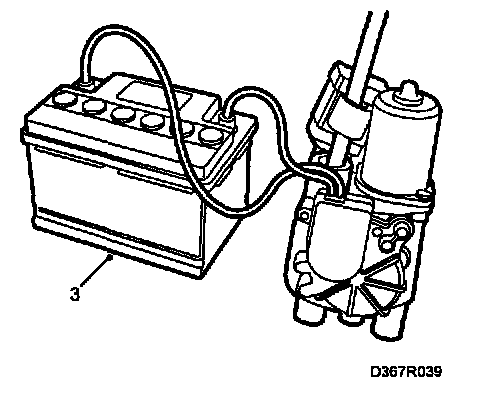

3 Connect the motor to a 12 V battery and wait until the motor has stopped with the antenna extended.







Then, carefully pull out the antenna tube rack from the motor.

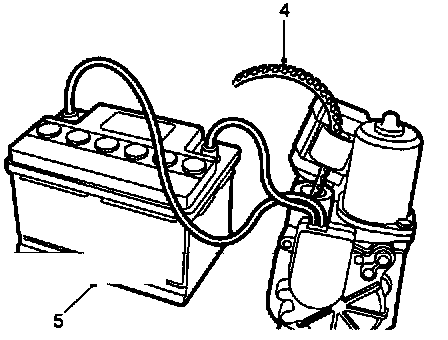

4 Push the new rack into the motor with the teeth facing the motor.







Apply a little grease to the rack.
5 Reconnect the motor to the battery at the same time as the rack is carefully pushed in.


NOTE: Connect the positive supply to the battery intermittently to make it easier to insert the rack.


6 Disconnect the battery when the whole rack has been inserted.
7 Fit the antenna tube.
Make sure the tube is turned the right way.

To fit
Fit the aerial. See Aerial, electric.
