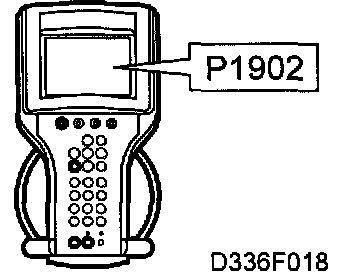

P1902




No bus communication with the TWICE.


P1902:











Fault symptoms
No bus communication with the TWICE.

Conditions
The following conditions are applicable:
Trionic:
- Engine has started
- No communication for 10 seconds

Diagnostic help
Some of the following symptoms may be observable:
- Additional diagnostic trouble codes in the Trionic (P1901 or P1908)
- Engine will not start
- Cruise control not working
- Radio not working
- Central locking function not working
- Remote control not working

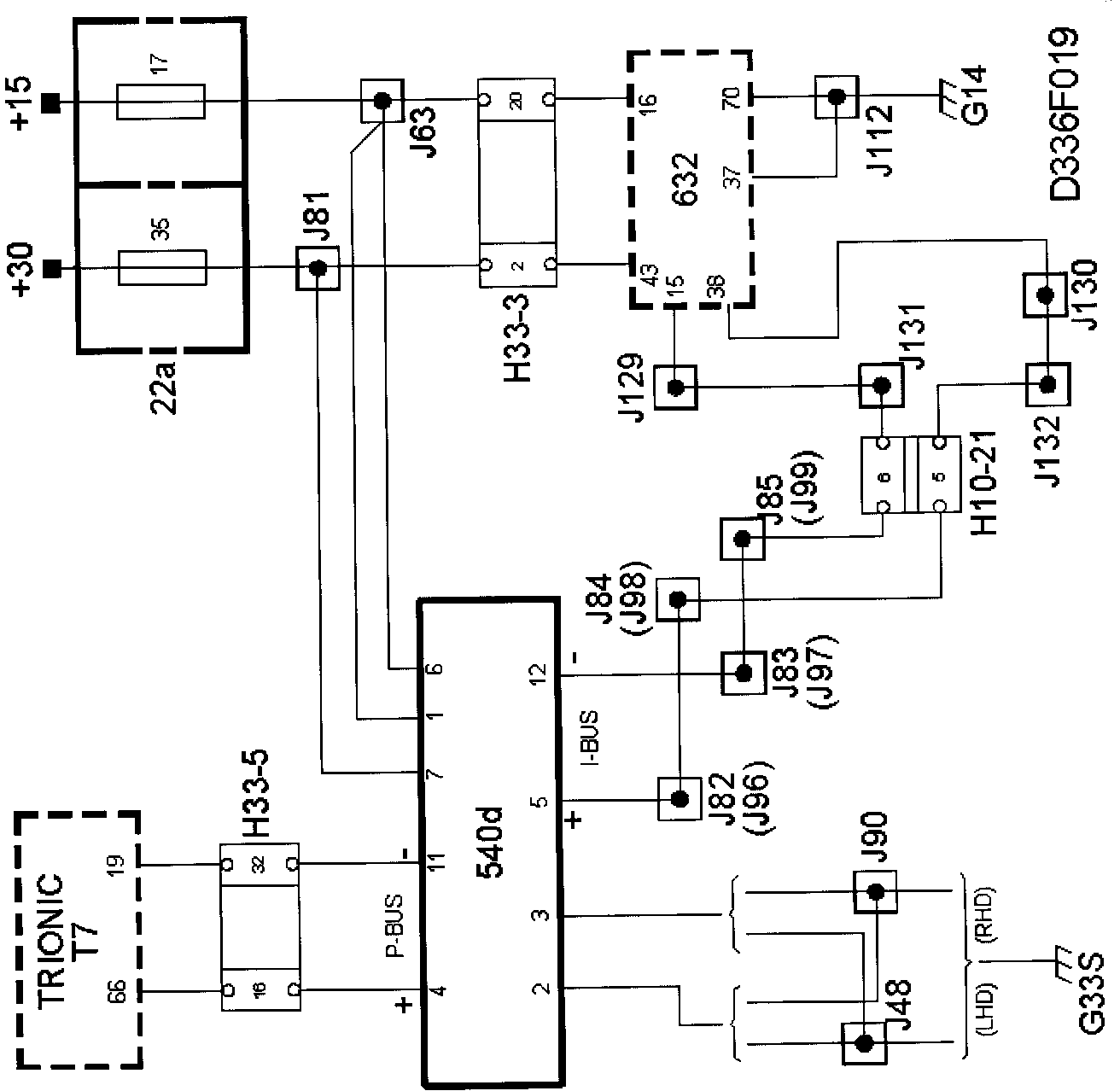

Check wiring harness.
Jiggle the wiring harness at several points and in different directions to detect intermittent breaks and short-circuits in the leads.
Observe the multimeter, test lamp or diagnostic tool during the test.
