Checking the Wiring Harness




Checking The Wiring Harness

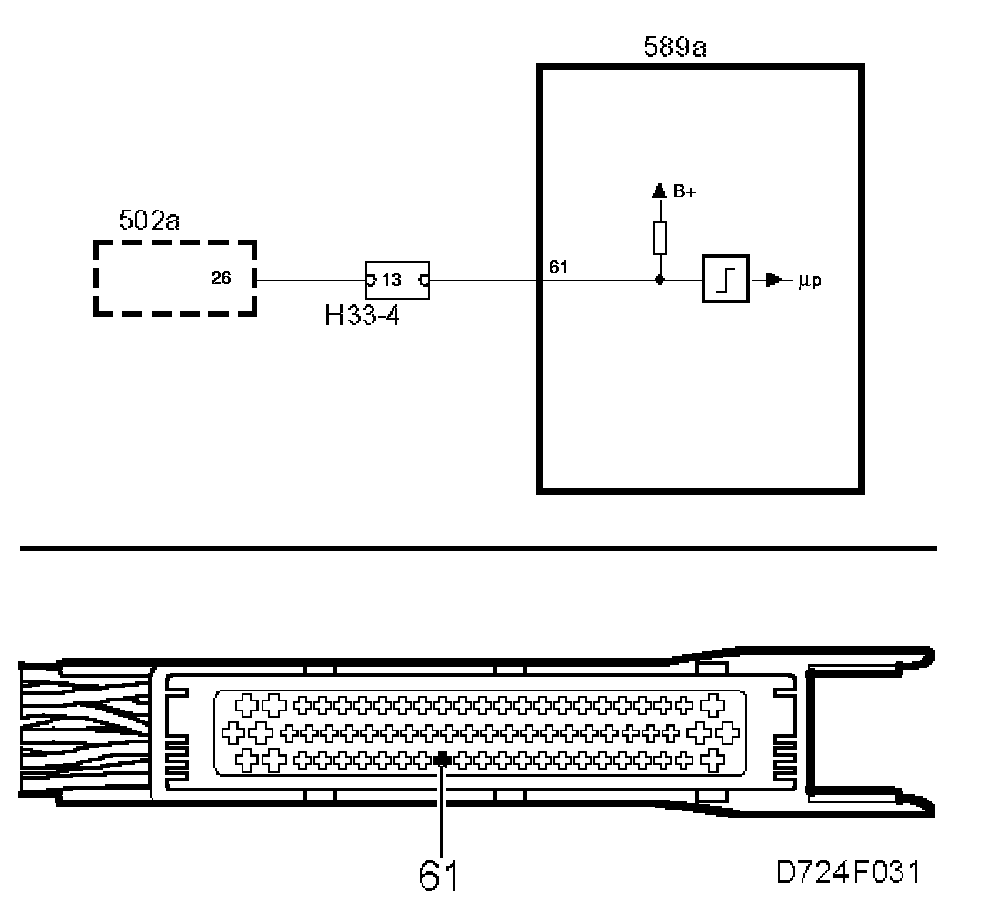

- Check the lead between Trionic control module pin 61 and TCM control module pin 26.

Is the wiring OK?

NO - Continue With Checking The Wiring Harness

YES -

Repair or replace the lead

After performing this procedure
