P1622

A/C relay, output from control module low/high, break or short circuit to ground/Batt+







Fault symptoms
A/C not working.

Conditions

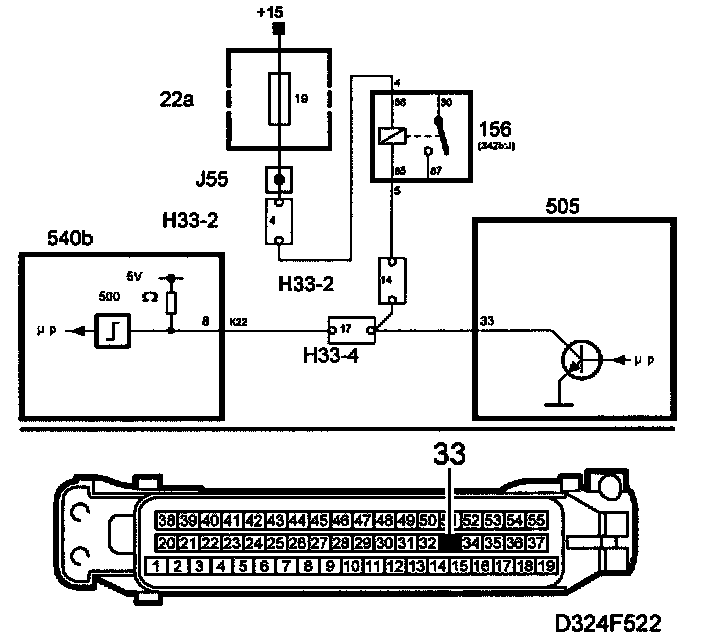

Break or short circuit to ground/B+ in the circuit to pin 33.
