Conditions

Tank Level Low







Fault symptoms
None

Conditions
Fuel level below 10 liters when any of the following codes are generated: P0171, P0172, P1171, P1172, P0300-P0304

Diagnostic help
Diagnostic trouble code P1416 is not a fault in the strict sense.

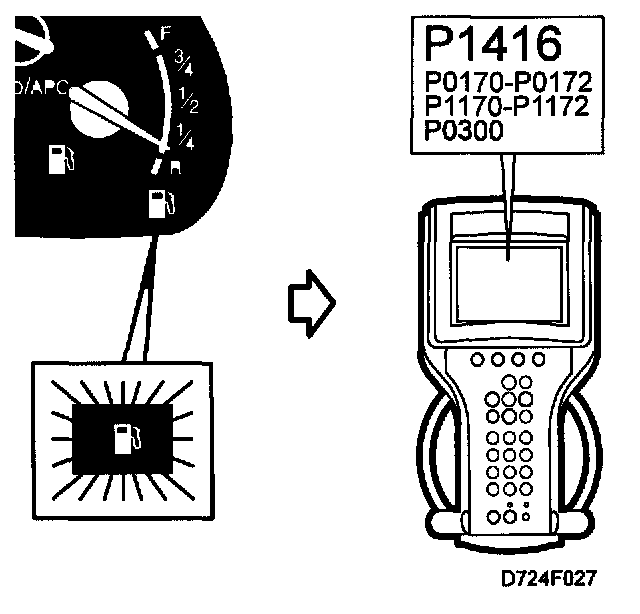

If the fuel level is below 10 liters and a fault occurs that can have been caused by low fuel level, diagnostic trouble code P1416 will be generated to indicate the cause and in this way prevent unnecessary fault diagnosis.

Checking the wiring harness. Intermittent faults may occur in connection with short circuits and open circuits. Jiggle the wiring harness at several points and in several directions to locate any problems in the wiring, including intermediate connectors. Observe the multimeter, scan tool or test lamp during the check.
