P1212

Idle control valve (IAC), Input from control module low/high, break or short circuit to ground/Batt+







Fault symptoms
Idling speed inconsistent, low or high

Conditions

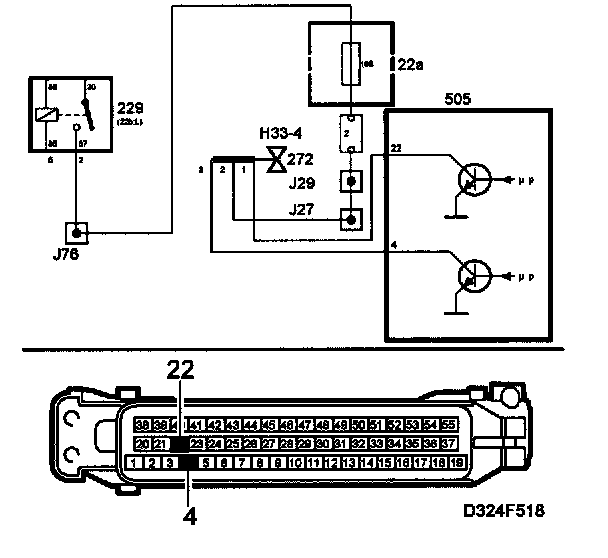

Break or short circuit to ground/Batt+ in one of the circuits to pin 4 or 22.
