P0753

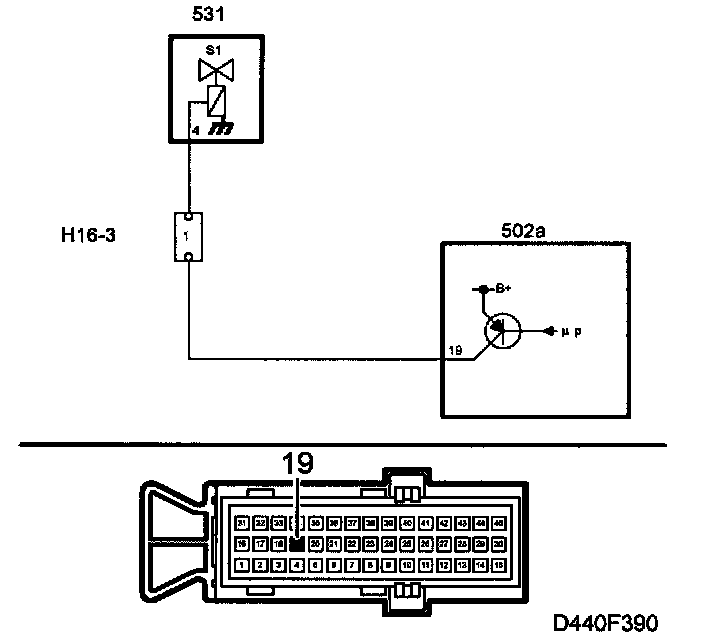

Solenoid 1-2/3-4 (S1)

Fault symptoms
CHECK GEARBOX warning lamp on.
TCM in Limp-Home mode.

Conditions
shorting to ground.
Shorting or open circuit to B+.

Diagnostic help
The status of the 1-2/3-4 shift solenoid (S1) can be ascertained with the diagnostics instrument.
The 1-2/3-4 shift solenoid (S1) should be activated (ON) in 1st and 3rd gears when the car is being driven and not activated (OFF) in the other gears.
The 1-2/3-4 shift solenoid (S1) can be activated with the diagnostics instrument.
- Activate"Solenoid 1-2/3-4 (S1)".
