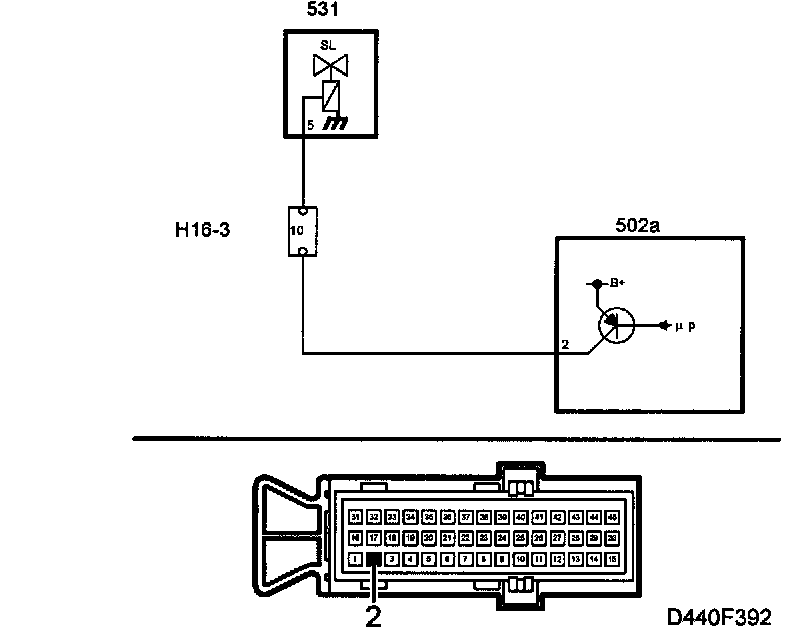

P0743

Solenoid for lock-up, SOLENOID LOCK-UP (SL), short circuit to ground.

Fault symptoms
No Lock-up function or Lock-up function defective.

Conditions
Shorting to ground.
Shorting to B+/Open circuit.

Diagnostic help
The status of the Lock-up solenoid can be ascertained with the diagnostics instrument.
Lock-up is activated (ON) in third and fourth gear.
The Lock-up solenoid can be activated with the diagnostics instrument.
^ Activate"Solenoid Lock-up".
