Checking the Wiring Harness

Checking The Wiring Harness

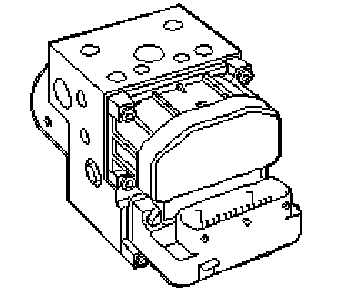

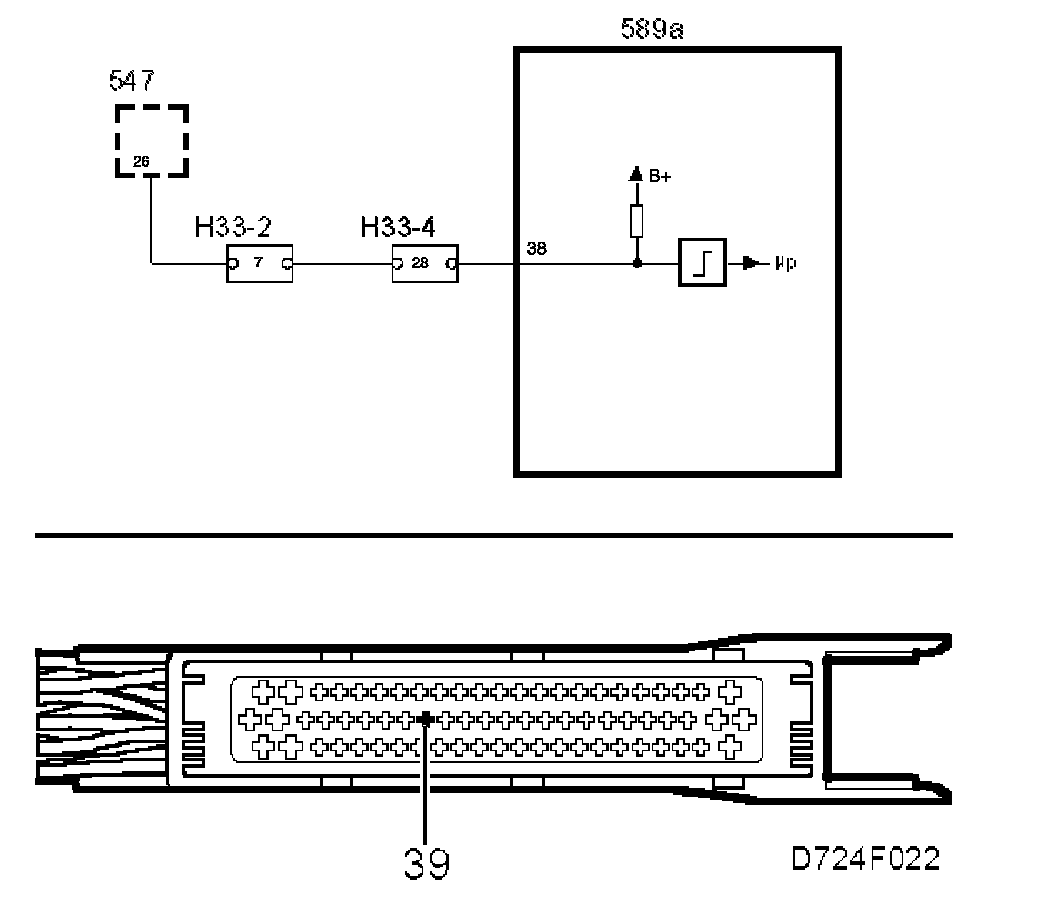

- Check the lead between Trionic control module pin 39 and ABS control module pin 26.

Is the wiring OK?

NO -

YES - Continue With Checking The Wiring Harness





Refer to Fault Diagnosis/General then 'Before changing a control module'. Trionic T5

After performing this procedure
