Checking the Ignition Coil's Control Module Output

Checking The Ignition Coil's Control Module Output







Unplug the connector:
- Ignition discharge module (346)

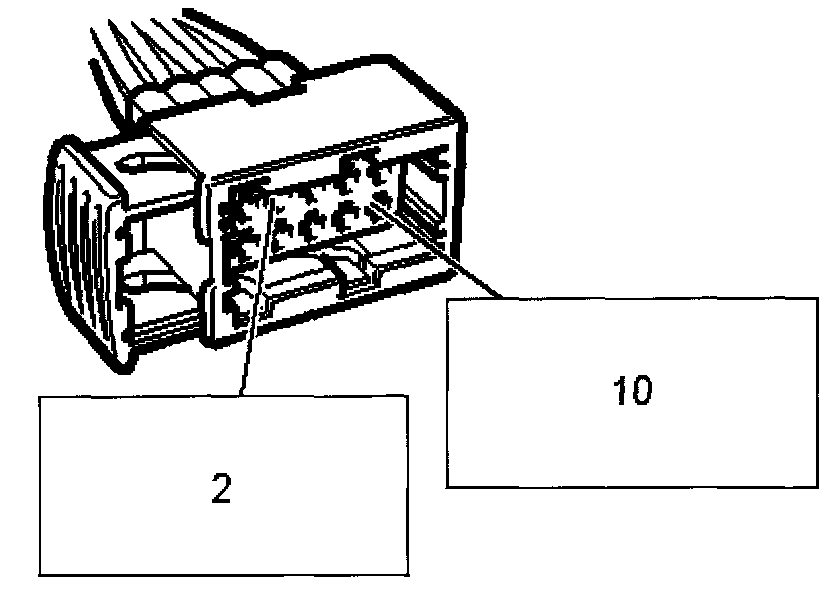

- Connect test lamp 86 11 857 to pins 10 and 2 of the female connector
- Activate:

Ignition Coil Cyl 4
- The test lamp should come on with extremely short interruptions

Is the function correct?

NO -

YES -
