Checking the Ignition Coil

3


Checking The Ignition Coil












- Turn the ignition switch to the ON position.

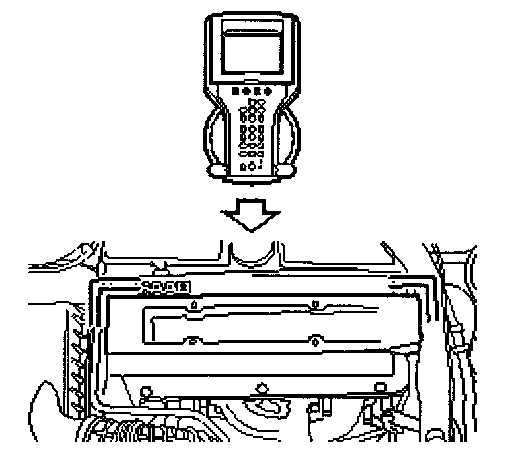

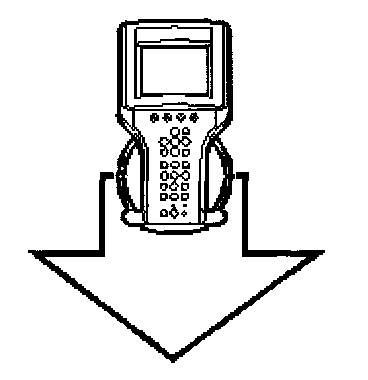

- Contact Trionic 5 OBDII.







- Activate:

Ignition Coil Cyl 3
- Activation of the ignition coil is carried out for 10 seconds at a frequency of 200 Hz.
- Listen for the sound of the ignition coil working

Ignition coil working?

NO -

YES -
