Checking the Ignition Discharge Module

Checking The Ignition Discharge Module

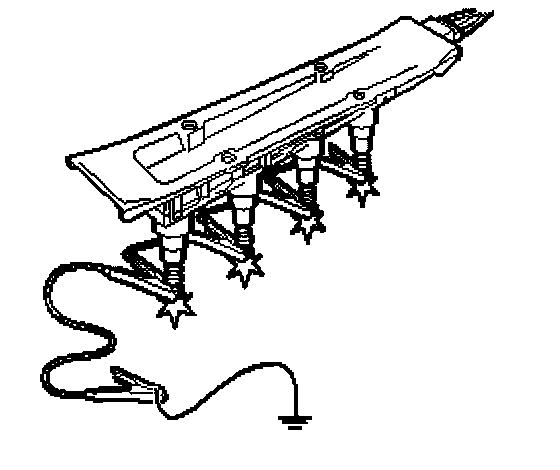

- Fit the test spark plug (86 11 386) in the ignition discharge module.
- Ground the spark plug and cable assembly 86 10 867.
- Position the ignition discharge module so that the spark plugs are inclined downwards and the oil in the ignition coils covers the HT outputs.







- Turn the ignition switch to the ON position.
- Activate

Ignition Coil Cyl 2
- Check whether the relevant test spark plug produces a spark. If necessary, compare it by activating another ignition coil.

Is the function correct?

NO -

YES -
