Check the Injector's Power Supply

Check The Injector's Power Supply












- Turn the ignition switch to the ON position.

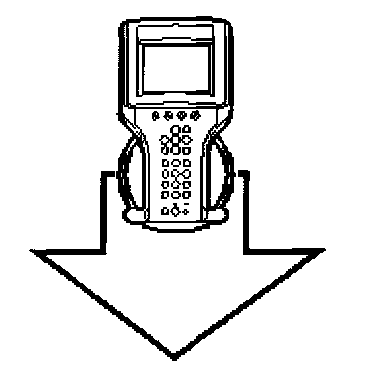

- Contact Trionic 5 OBDII.

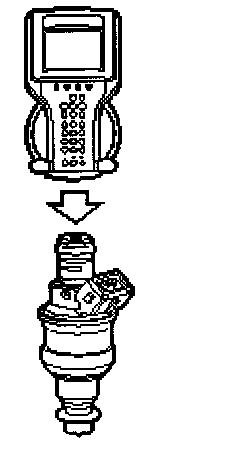

- Activate:

Injector Cyl 1
- A ticking sound should be heard from the injector.

Is the function correct?

NO - Continue With Check The Injector's Power Supply

YES -

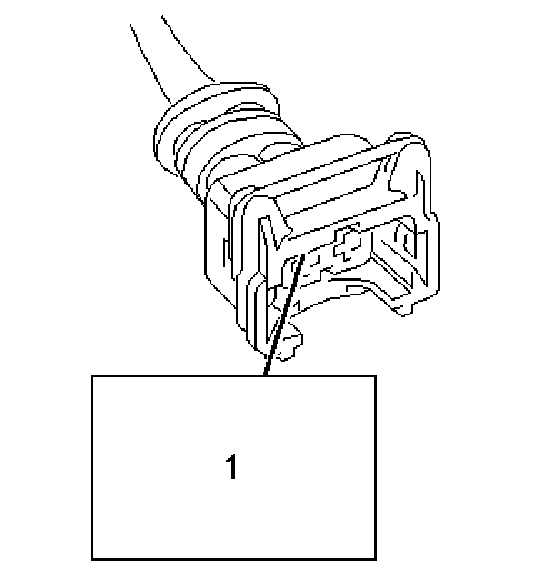

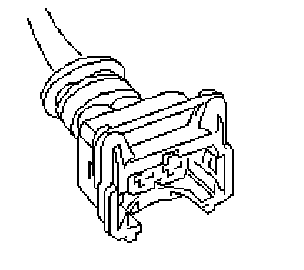

Unplug the connector:
- Injector, cylinder 1 (206a)

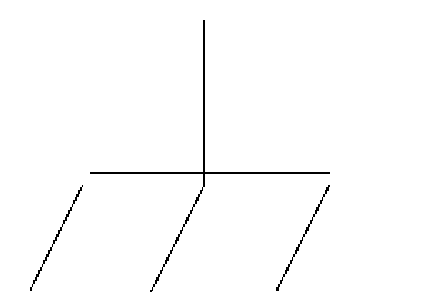

- Connect test lamp 86 11 857 to pin 1 of the female connector and a good grounding point.
- Activate:







Main Relay

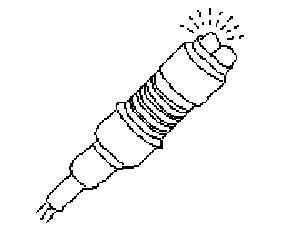

- The test lamp should flash.

Is the function correct?

NO -

YES -
