Checking the Condition of the Ignition Discharge Module

Checking The Condition Of The Ignition Discharge Module

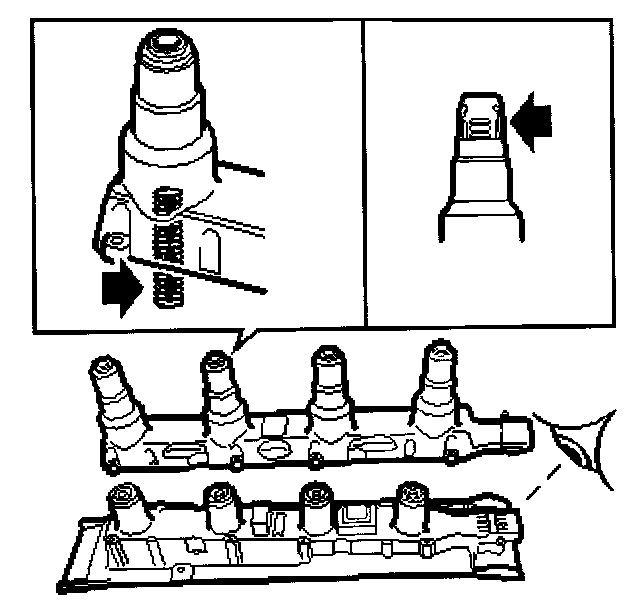

- Remove the ignition discharge module from the camshaft cover.
- Check visually that
- the four rubber seals are intact
- no spark plug contact springs are missing or too weak.
- electrical contact is not impaired by the effects of moisture or corrosion.

Is the function correct?

NO - Continue With Checking The Condition Of The Ignition Discharge Module

YES -

Rectify the fault.

After performing this procedure
