Final Check

Final Check







- Clear the diagnostic trouble codes in all systems.
- Carry out a drive cycle:







- Turn the ignition switch to the ON position.

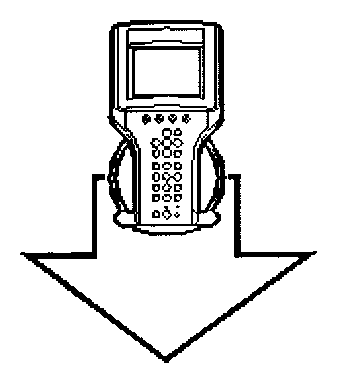

- Contact Trionic 5 OBDII.
- Test value

Short Term Fuel Trim
- Select the value obtained.

0% - Repeat the driving cycle.

More than 50% or less than -50%
Less than 50% or more than -50%
Build up a pressure of 0.6 bar
using a pressure/vacuum pump and
pressure gauge. - The fault persists

Less than 50% or more than -50%
Build up a pressure of 0.6 bar
using a pressure/vacuum pump and
pressure gauge. - The steps taken to rectify the fault were correct
