Checking the Preheating Element Control Module Input

Checking the Preheating Element Control Module Input

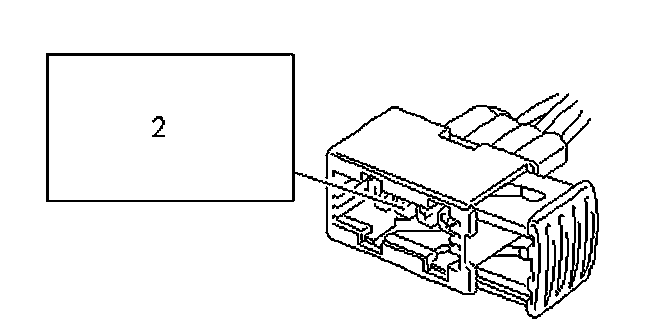

- Connect test lamp 86 11 857 to B+ and pin2 of the female connector.

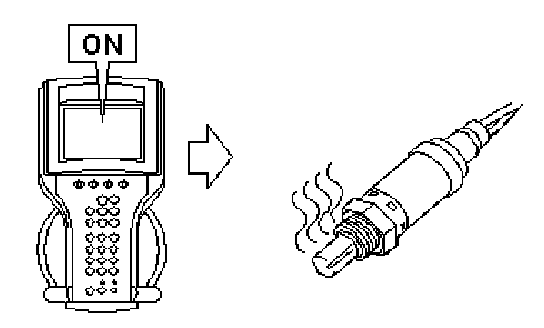

- Activate:







Preheating O2S 1

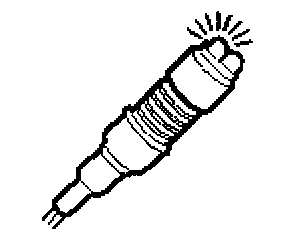

- The test should light.

Is the function correct?

NO -

YES -
